Product Overview
When process safety and system uptime are non-negotiable, the ABB PM863K02 MPC866 delivers a cost-effective solution. This CPU board integrates a microprocessor, RAM memory, real-time clock, LED indicators, INIT push button, and CompactFlash interface into a single unit. Designed for the AC 800M High-Integrity platform, it enables non-critical control schemes to be upgraded to SIL-certified schemes by adding a plug-in SM81x module and appropriate software. The PM863K02 supports CPU redundancy, reducing unplanned downtime and associated costs.
Technical Specifications Breakdown
- Processor Type: MPC866 at 96 MHz clock frequency delivers 0.17 ms for 1000 boolean operations, ensuring fast logic execution for time-critical processes.
- Memory: 32 MB total, with 22.184 MB RAM available for applications. This allocation supports complex control strategies without performance degradation.
- Redundancy: Switchover time max 10 ms in redundant configuration. Minimal interruption translates to higher production availability and lower revenue loss.
- Power Supply: 24 V DC (19.2–30 V DC) with typical consumption 210 mA and max 360 mA. Power dissipation of 5.1 W (8.6 W max) keeps energy costs low.
- Ethernet: Two RJ45 ports (10 Mbit/s) using MMS and IAC protocols. Built-in redundancy eliminates network single points of failure, reducing maintenance expenses.
Industry Applications
- Oil & Gas Safety Systems: The PM863K02, combined with SM812 module, achieves TÜV Certified SIL 2 and SIL 3. This allows upgrading existing control schemes without replacing the entire infrastructure, saving capital expenditure.
- Chemical Batch Processing: With 32 tasks per controller and cycle time down to 10 ms, the PM863K02 handles multiple recipes simultaneously. Redundant CPU configuration ensures continuous operation during maintenance windows.
- Power Generation: The controller supports up to 96 I/O modules on Modulebus (single CPU) or 84 (redundant). This scalability lets plants expand without purchasing additional controllers, optimizing long-term investment.
Installation & Setup Guidance
Mount the PM863K02 base plate in a cabinet with IP20 protection. Connect the two RJ45 Ethernet ports (CN1, CN2) to the Control Network using 100 Mbit/s switched Ethernet backbone for best performance. Use COM3 (RS-232C, 75–19200 baud) for general serial communication with full RTS-CTS support, and COM4 (RS-232C, 9600 baud, opto-isolated) for configuration tool connection. Ensure redundant power supply status input is wired to monitor both power feeds. Follow the Safety Manual for high-integrity configuration.
Maintenance & Reliability
Regularly inspect the built-in backup lithium battery (3.6 V) and replace according to manufacturer guidelines to maintain real-time clock accuracy (100 ppm, approx. 1 h/year drift). Verify Ethernet cable connections and check LED indicators for fault status. The controller operates from +5 to +55 °C and withstands storage from -40 to +70 °C. Pollution degree 2 and G3 corrosion protection ensure reliability in industrial environments, reducing unplanned service calls.
Compatibility & Integration
The PM863K02 integrates with S800 I/O High Integrity modules (PM857, PM863, PM865, PM66A, PM867, PM891). It supports up to 12 communication modules on CEX-bus and connects to I/O clusters via Modulebus (1 electrical, 7 optical for non-redundant CPU; 0 electrical + 7 optical for redundant CPU). Use 800xA control builder for configuration. The controller is ISA Secure certified and carries marine certificates from ABS, BV, DNV-GL (LR, Lloyd pending).
Selection Guide & Purchasing Advice

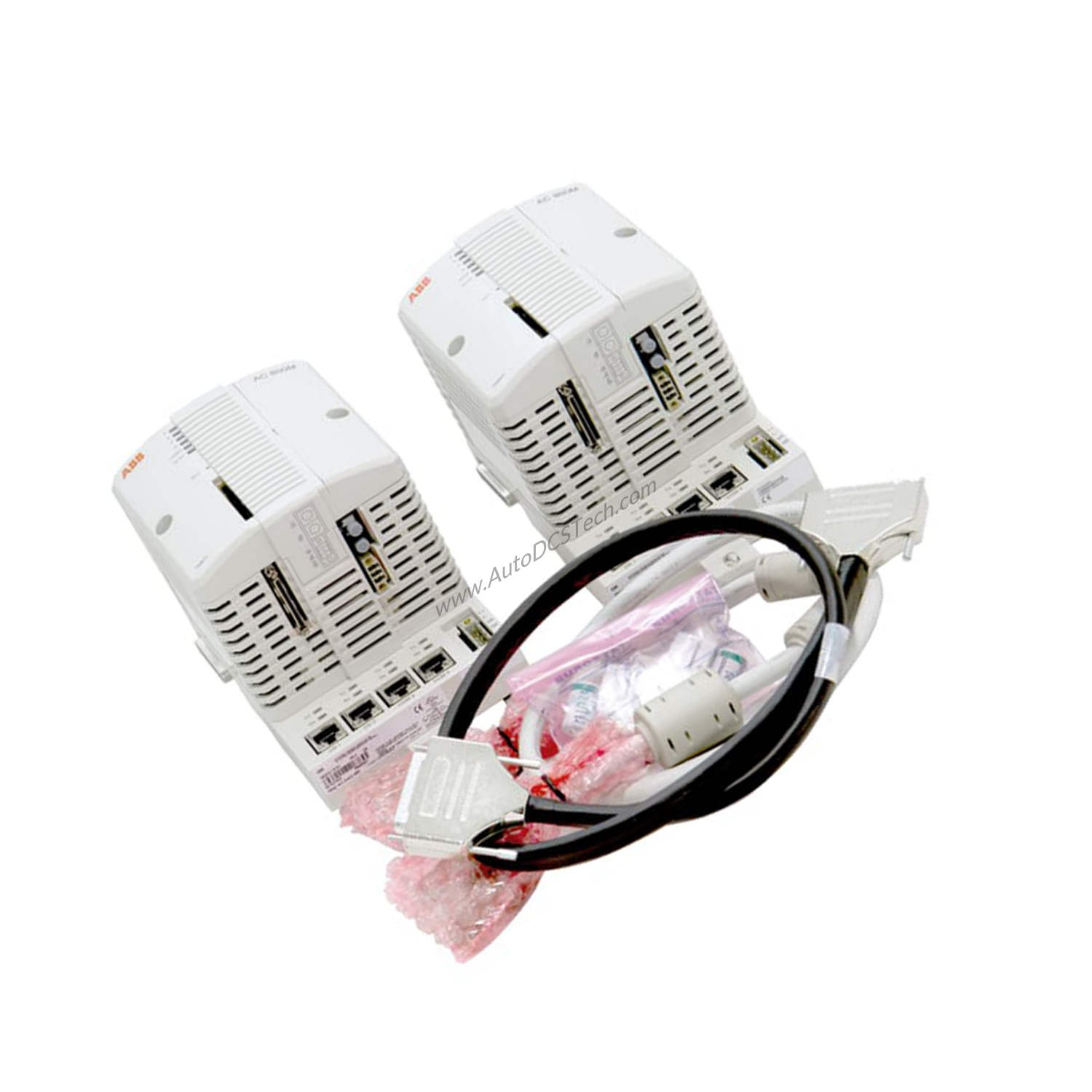

Before ordering, verify your system requires the PM863K02 package, which includes 2 pcs PM863K01 Safety Processor units, 1 pcs TK850 CEX-bus expansion cable, and 1 pcs TK851 RCU-Link cable. Confirm power supply voltage (24 V DC) and ambient temperature range. Contact SpareTechPLC for current lifecycle status and availability. Our team can help match this part to your existing AC 800M infrastructure.
Frequently Asked Questions
Q: Can the PM863K02 be used in SIL 3 applications?
A: Yes, when combined with an SM812 module and SIL-certified software, the PM863K02 achieves TÜV Certified SIL 2 and SIL 3 for high-integrity control.
Q: What is the maximum number of I/O modules supported?
A: With a single PM863, up to 96 I/O modules on Modulebus; with redundant PM863, up to 84 modules.
Q: Does the PM863K02 support redundant power supply?
A: Yes, it includes a redundant power supply status input and supports 24 V DC with a typical consumption of 210 mA.
Q: What communication protocols are built-in?
A: The controller uses MMS (Manufacturing Message Service) and IAC (Inter Application Communication) over two 10 Mbit/s Ethernet ports.
Q: What is the switchover time in redundant configuration?
A: Maximum 10 ms, ensuring minimal disruption during failover.
