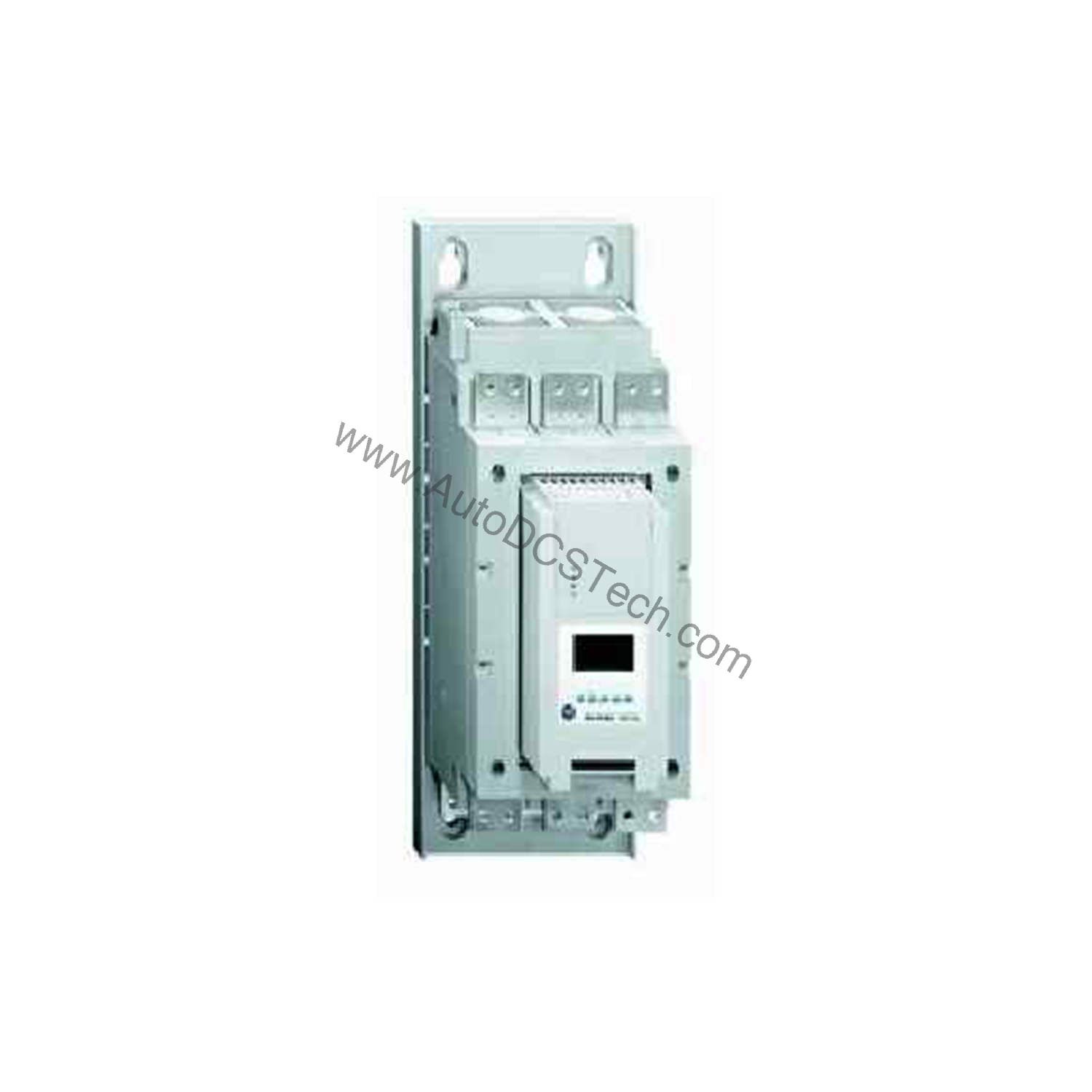

Allen-Bradley 150-F43NCD SMC-Flex Solid State Controller 43A

Technical Specifications Breakdown

Key parameters for the 150-F43NCD are listed below for quick reference:

Industry Applications

This controller is engineered for applications requiring controlled acceleration and deceleration. Common uses include:

• Pumps: Eliminates water hammer by gradually ramping up motor speed, reducing pressure surges in piping systems.
• Compressors: Minimizes mechanical shock on belts and pulleys during startup, extending service intervals.
• Centrifuges: Provides smooth starts to prevent imbalance and product loss.

Installation & Setup Guidance

Mount the open-enclosure controller in a clean, dry, and ventilated cabinet to protect against dust and moisture. Ensure the input line voltage matches the 200-575V AC, 3-phase supply. The control voltage must be 100-240V AC. Use appropriately rated conductors and follow local electrical codes. Program the start and stop modes via the built-in LCD display and keypad to match motor and load characteristics.

Maintenance & Reliability

Periodically inspect the controller for signs of overheating, loose connections, or accumulated debris. Verify that cooling airflow is unobstructed. The integrated bypass reduces heat dissipation during run mode, enhancing long-term reliability. No internal adjustments are required under normal operation.

Solving Motor Start Challenges with the Allen-Bradley 150-F43NCD

Industrial facilities often face mechanical stress and high inrush currents when starting large motors directly across the line. This can lead to premature wear on belts, gears, and couplings, as well as voltage dips that affect other equipment. The Allen-Bradley 150-F43NCD SMC-Flex solid state controller provides a programmable solution to gradually ramp up voltage and torque, minimizing starting peaks and extending equipment life.

Compatibility & Integration

It supports nine start/stop modes and three slow-speed modes, making it adaptable to various process requirements. The LCD display provides real-time diagnostics and metering.

Selection Guide & Purchasing Advice

When selecting a solid state controller, verify that the current rating (43 A) and horsepower rating (30 HP at 460V AC) match your motor nameplate. The 200-575V AC input range offers flexibility for global installations. Please verify current lifecycle status and availability with AutoDCSTech before ordering.
