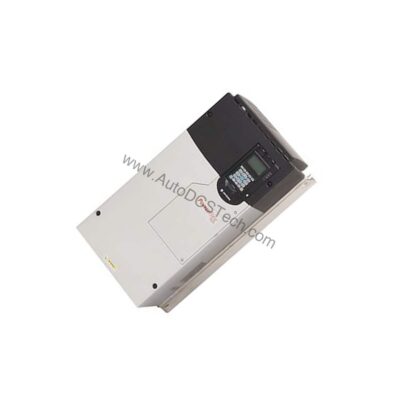

Allen-Bradley 20F1AND125AN0NNNNN PowerFlex 753 Variable Frequency Drive, 125A

Technical Specifications Breakdown

Key parameters for the 20F1AND125AN0NNNNN are listed below for quick reference:

Industry Applications

In wastewater treatment, the 20F1AND125AN0NNNNN efficiently manages large pump motors, leveraging the built-in line filter to reduce harmonic distortion. The heavy-duty rating of 75 HP ensures reliable operation in high-torque environments like crushers or mixers.

Installation & Setup Guidance

Mount the drive in a clean, dry location within the 0–50 °C ambient range. Ensure adequate clearance for fan-forced air cooling. Connect the 380–480 V, 3-phase supply to the input terminals. The drive does not include a braking transistor; plan for external dynamic braking if needed. For the built-in line filter, verify the jumper is turned off to match your installation requirements. Use the three option ports for communication or I/O expansion modules.

Maintenance & Reliability

Periodically inspect the cooling fan and air intake for dust accumulation to maintain thermal performance. The IP00/IP20 enclosure requires additional protection in harsh environments. Monitor ambient temperature to stay within the 0–50 °C range. The drive's robust overload capability reduces mechanical stress on connected equipment, extending system life.

Solving High-Torque Motor Control Challenges

In industrial environments, maintaining precise motor speed under varying loads is critical. A common engineering challenge involves applications requiring high starting torque and robust overload capability, such as conveyors or pumps. The Allen-Bradley 20F1AND125AN0NNNNN PowerFlex 753 variable frequency drive directly addresses this need, offering 150% overload for 3 seconds and 110% for 60 seconds, ensuring reliable operation during demanding cycles.

Compatibility & Integration

The 20F1AND125AN0NNNNN supports multiple control modes: V/Hz, SVC, and vector with feedback, allowing integration with existing motor control systems. The three option ports enable adding communication modules (e.g., EtherNet/IP, DeviceNet) for seamless network connectivity. The built-in line filter helps meet harmonic limits without external components.

Selection Guide & Purchasing Advice

When selecting this drive, confirm your motor's full-load current does not exceed 125 A. For normal duty applications, the 100 HP rating provides ample margin. Contact AutoDCSTech to verify current lifecycle status and availability before ordering. Our team can help match this unit to your specific application requirements.
