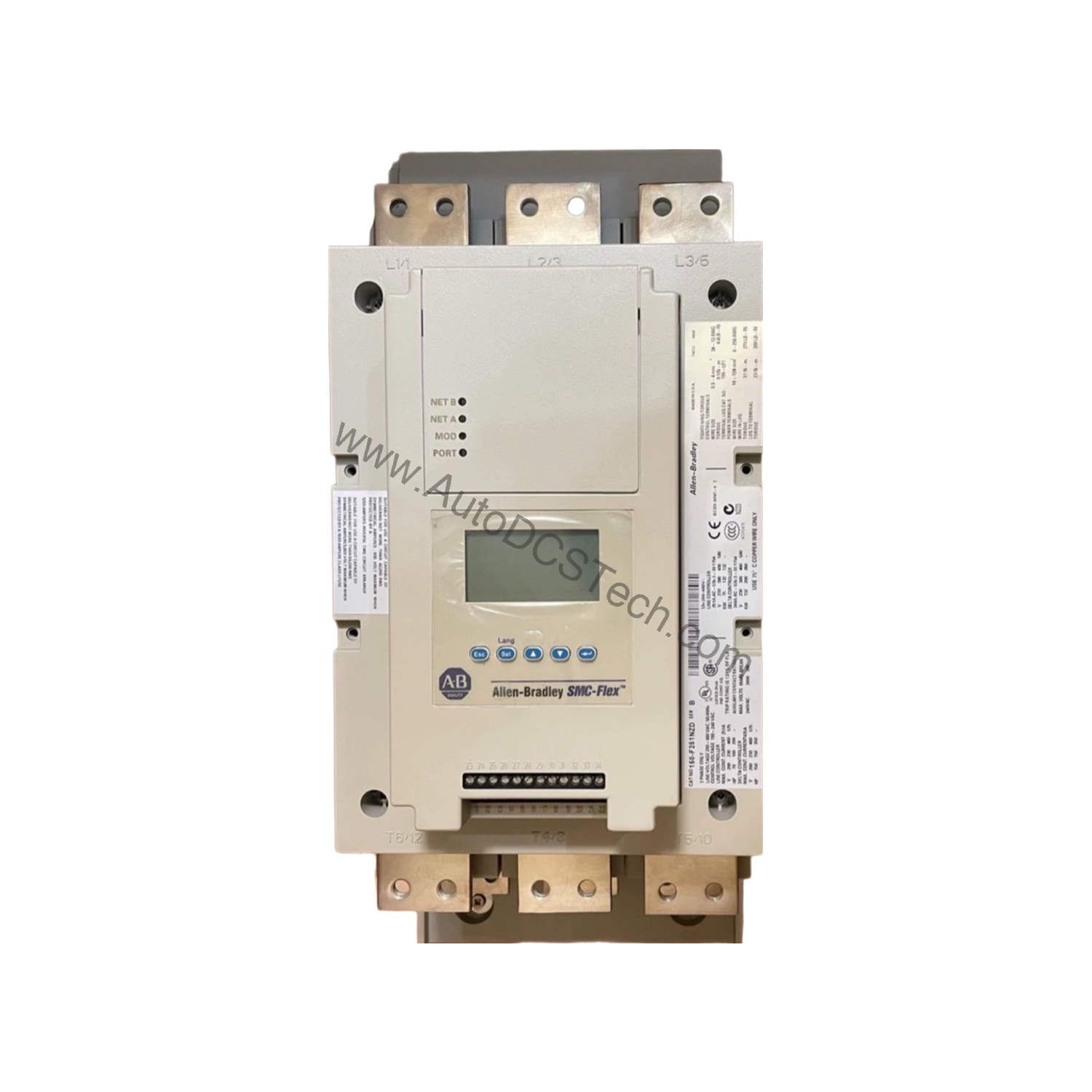

Allen-Bradley 150-F361FCD SMC-Flex Solid State Controller 361A IP65

Technical Specifications Breakdown

Key parameters for the 150-F361FCD are listed below for quick reference:

Industry Applications

This solid state controller is particularly suited for industries where motor reliability and uptime are critical. In water and wastewater treatment plants, the 150-F361FCD manages large pumps, providing soft start functionality that prevents water hammer and reduces mechanical stress on piping. Similarly, in mining and aggregate operations, the controller handles high-inertia loads like conveyors and crushers, ensuring smooth starts even under heavy load conditions.

Installation & Setup Guidance

When installing the 150-F361FCD, ensure the mounting surface is flat and capable of supporting its 32.00 lbs weight. The IP65 enclosure requires proper sealing of all conduit entries to maintain the environmental protection rating. Connect the three-phase input line voltage (500-575V AC, 50/60 Hz) to the designated terminals, and apply the control voltage (100-240V AC) to the control circuit. Always verify that the motor full-load current does not exceed the 361 A controller rating. Use appropriate wire sizes and torque values as per the manufacturer's guidelines to avoid connection overheating.

Maintenance & Reliability

Periodic inspection of the controller is essential for long-term reliability. Check the enclosure seals and gaskets for any signs of deterioration, especially in harsh environments. Ensure that cooling vents (if present) are free from dust and debris. The solid state design inherently reduces mechanical wear compared to electromechanical starters, but thermal cycling can stress power semiconductors. Monitor the ambient temperature and ensure it stays within acceptable limits to prevent derating. No internal adjustments or disassembly is required; routine visual checks and cleaning of the exterior are sufficient.

Robust Motor Control for Harsh Environments

Industrial facilities often face the challenge of starting and stopping large motors reliably while protecting equipment from electrical and mechanical stress. The Allen-Bradley 150-F361FCD SMC-Flex Solid State Controller addresses this need directly, providing a rugged solution for high-power applications. This controller is engineered to deliver smooth, controlled acceleration and deceleration, reducing wear on driven machinery and minimizing electrical disturbances on the line.

Compatibility & Integration

The SMC-Flex series is designed for straightforward integration into existing motor control centers. The 150-F361FCD accepts standard control signals and can be interfaced with PLCs or other automation systems via its control voltage terminals. The 500-575V AC input line voltage range makes it compatible with common international industrial power systems. For systems requiring communication, optional modules may be available, though the base unit operates as a standalone soft starter. Always verify compatibility with your specific motor and application requirements.

Selection Guide & Purchasing Advice

Selecting the correct solid state controller requires matching the motor's full-load current and horsepower to the controller's rating. The 150-F361FCD is designed for motors up to 300 Hp at 460V AC, with a continuous current rating of 361 A. For applications with frequent starts or high ambient temperatures, consider derating the controller. AutoDCSTech offers this unit for immediate purchase, ensuring you receive a genuine Allen-Bradley product. Please verify current lifecycle status and availability with AutoDCSTech before ordering to ensure it meets your project timeline.

Troubleshooting & Common Issues

If the controller fails to start, first verify that the control voltage (100-240V AC) is present and within tolerance. Check the input line voltage (500-575V AC) for phase imbalance or loss. Overload conditions may cause the controller to trip; confirm that the motor current does not exceed 361 A. If the enclosure is exposed to moisture, inspect the seals for damage. For persistent faults, consult the manufacturer's documentation for diagnostic codes. Do not attempt to open the sealed enclosure; contact a qualified service technician if internal inspection is required.
