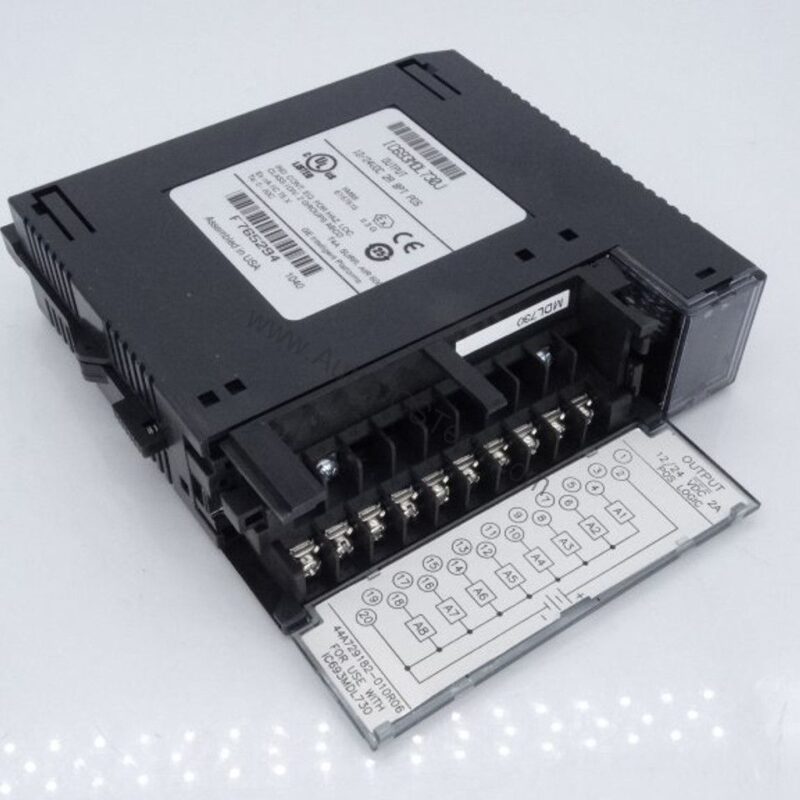

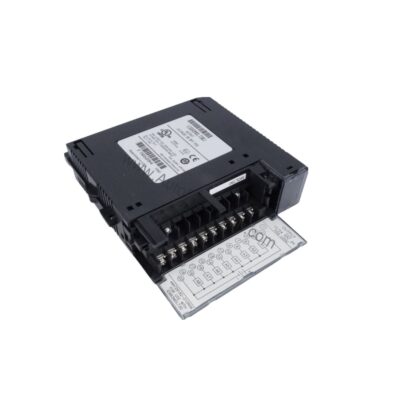

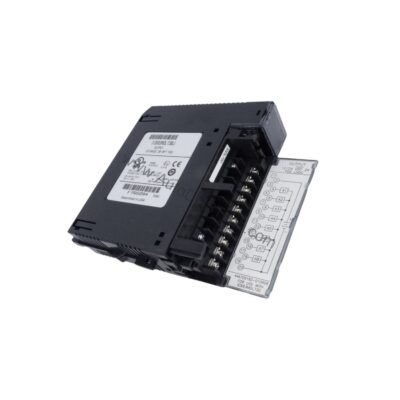

IC693MDL730: Series 90 30 12/24 VDC Positive Logic Output Module
The IC693MDL730 is the Series 90 30 12/24 VDC Positive Logic Output Module covered on this page. The attribute that decides whether it fits the existing installation without modification is 12-24 VDC (+20%, -15%).
This configuration's series 90 30 12/24 vdc positive logic output module is the attribute that drives the replacement decision. On a rack I/O module the configuration that matters is the one that decides whether the unit drops into the existing slot and speaks the existing signal. series 90 30 12/24 vdc positive logic output module sets channel count, voltage or current class and isolation behaviour — the three things that decide compatibility with the backplane, the field wiring and the rest of the I/O. Matching 12-24 VDC (+20%, -15%) against the rack rather than a generic datasheet avoids a module that installs but does not interface.
| Feature | Specification |
|---|---|
| Manufacturer | GE Fanuc / GE Intelligent Platforms |
| Brand | GE |
| Part Number | IC693MDL730 |
| Output Type | Discrete Outputs |
| Number of Channels | 8 |
| Output Voltage Range | 12-24 VDC (+20%, -15%) |
| Load Current per Point | 2.0 A |
| Output Current | 2 A per point, 2 A per fuse at 60°C, 4 A per fuse at 50°C |
| Isolation | 1500 V |
| On Response Time (max) | 2 ms |
| Off Response Time (max) | 2 ms |
| Maximum Inrush Current | 9.4 A for 10 ms |
| Output Voltage Drop (max) | 1.2 V |
| Off-state Leakage (max) | 1 mA |
| Current Draw (all outputs active) | 55 mA |
This part belongs to a discontinued platform (GE Series 90-30), superseded by PACSystems RX3i (IC695 series). We stock remaining new and refurbished units.
Related Configurations
Other published configurations in the same family — confirm the distinguishing specification against your installation:
| Related Part Number | Configuration Difference |
|---|---|
| ge-fanuc-ic693mdl731-series-90-30-discrete-output-module | confirm the configuration against your installation |
| ge-fanuc-ic693mdl732-series-90-30-digital-i-o-module-8-outputs-12-24vdc | confirm the configuration against your installation |
| ge-fanuc-ic693mdl733-8-point-digital-output-module-for-series-90-30-plcs | confirm the configuration against your installation |
| ge-fanuc-ic693mdl734-6-point-digital-output-module-for-series-90-30-plc | confirm the configuration against your installation |
Availability & Condition at AutoDCSTech
| Part Number | IC693MDL730 |
|---|---|
| Availability | In Stock |
| Condition | New |
| Warranty | One Year |
| Origin | US |
