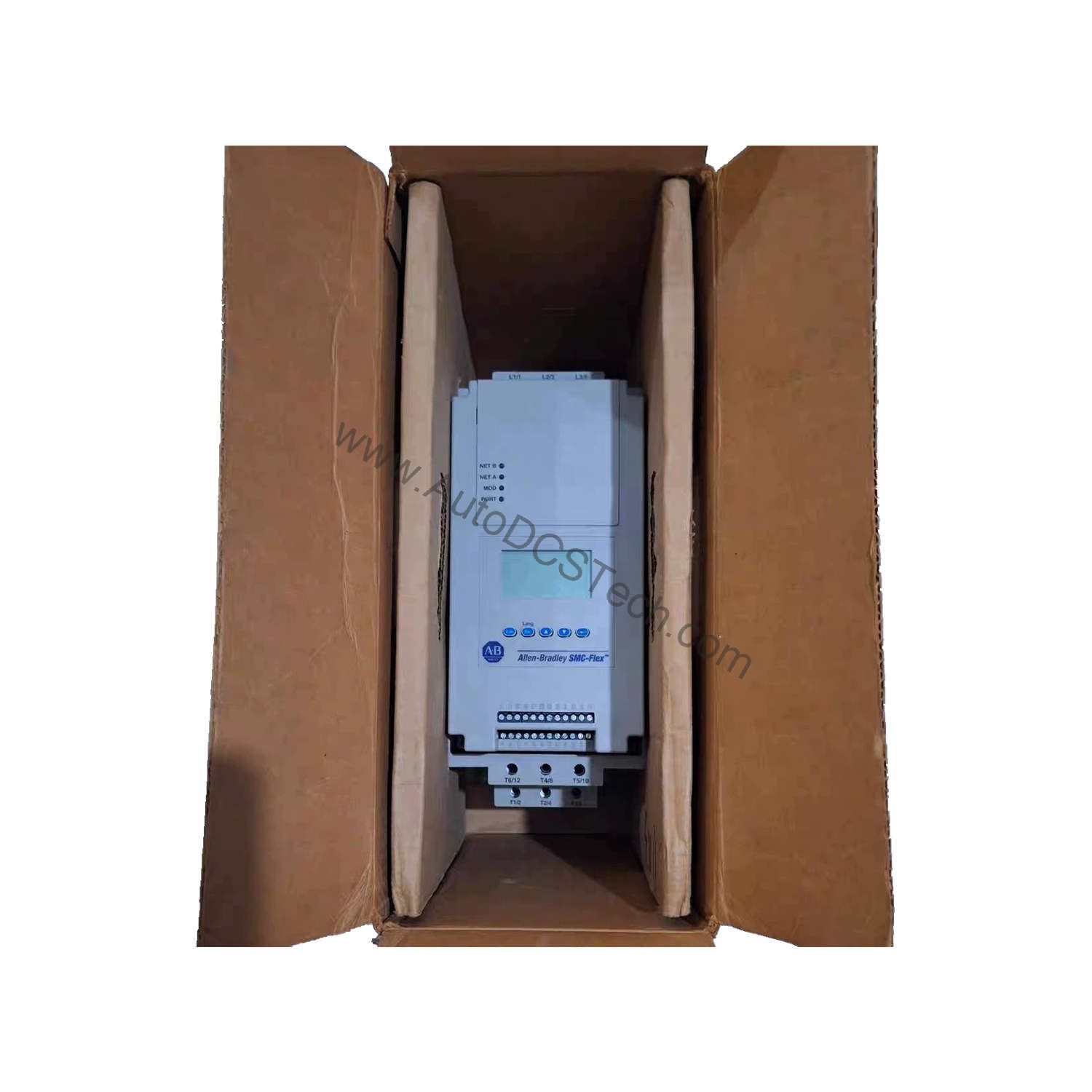

Allen-Bradley 150-F43NBRD SMC Flex Smart Motor Controller 43A

Technical Specifications Breakdown

Key parameters for the 150-F43NBRD are listed below for quick reference:

Industry Applications and Cost-Benefit Insights

The optional SMB smart motor braking control provides adjustable braking current from 0 to 400% of motor full-load current, reducing mechanical wear and downtime. By integrating a soft starter with braking, you eliminate the need for separate braking equipment, lowering total system cost and simplifying maintenance.

Installation and Setup Guidance

Mount the open-type enclosure in a clean, dry location with adequate airflow. Use the specified power terminal tightening torque of 14.7 Nm (130 in-lb) for secure connections. For control wiring, strip 18 to 20 mm (0.22 to 0.34 in) and use M3 screw clamps. Ensure the control voltage matches the 24V AC/DC requirement. Set trip class (10, 15, 20, or 30) based on motor starting characteristics.

Maintenance and Reliability

Periodically inspect the heatsink and fan for dust buildup to maintain thermal performance. The unit operates reliably in humidity from 5 to 95% noncondensing and at altitudes up to 2000 m. With IP20 protection against electrical shock, it is suitable for indoor use. The internal bypass reduces heat dissipation during run mode, enhancing long-term reliability.

Optimize Motor Control with the Allen-Bradley 150-F43NBRD SMC Flex

The Allen-Bradley 150-F43NBRD SMC Flex Smart Motor Controller is a robust soft starter designed for demanding industrial applications. With a controller rating of 43 A and support for 7.5-30.0 Hp at 460V AC, this unit delivers precise motor management. Its 24V AC/DC control voltage simplifies integration into existing automation systems. The SMC Flex series is known for reliability, and this model includes a built-in display for easy status monitoring.

Compatibility and Integration

The 150-F43NBRD integrates with standard control systems via its 24V AC/DC control circuit. It supports PTC thermistor inputs for motor thermal protection and provides programmable auxiliary contacts (NO/NC) for status feedback. The controller is compatible with Allen-Bradley power supply module 1606-XLP50E for control module power.

Selection Guide and Purchasing Advice

When selecting a motor controller, verify that the 43 A rating matches your motor full-load current. For delta-connected motors, the controller handles up to 74 A. Contact AutoDCSTech for lifecycle status and availability before ordering. Our team can help confirm compatibility with your application.

Troubleshooting and Common Issues

If the controller fails to start, check the control voltage (24V AC/DC) and input ON-state voltage (min 85V AC or 19.2V DC). For trip events, review the trip current setting (117% of motor FLC) and adjust trip class as needed. The display shows status indicators for stopped, starting, stopping, at speed, alarm, and fault conditions, aiding rapid diagnosis.
