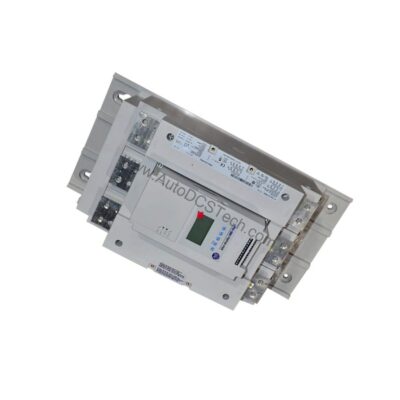

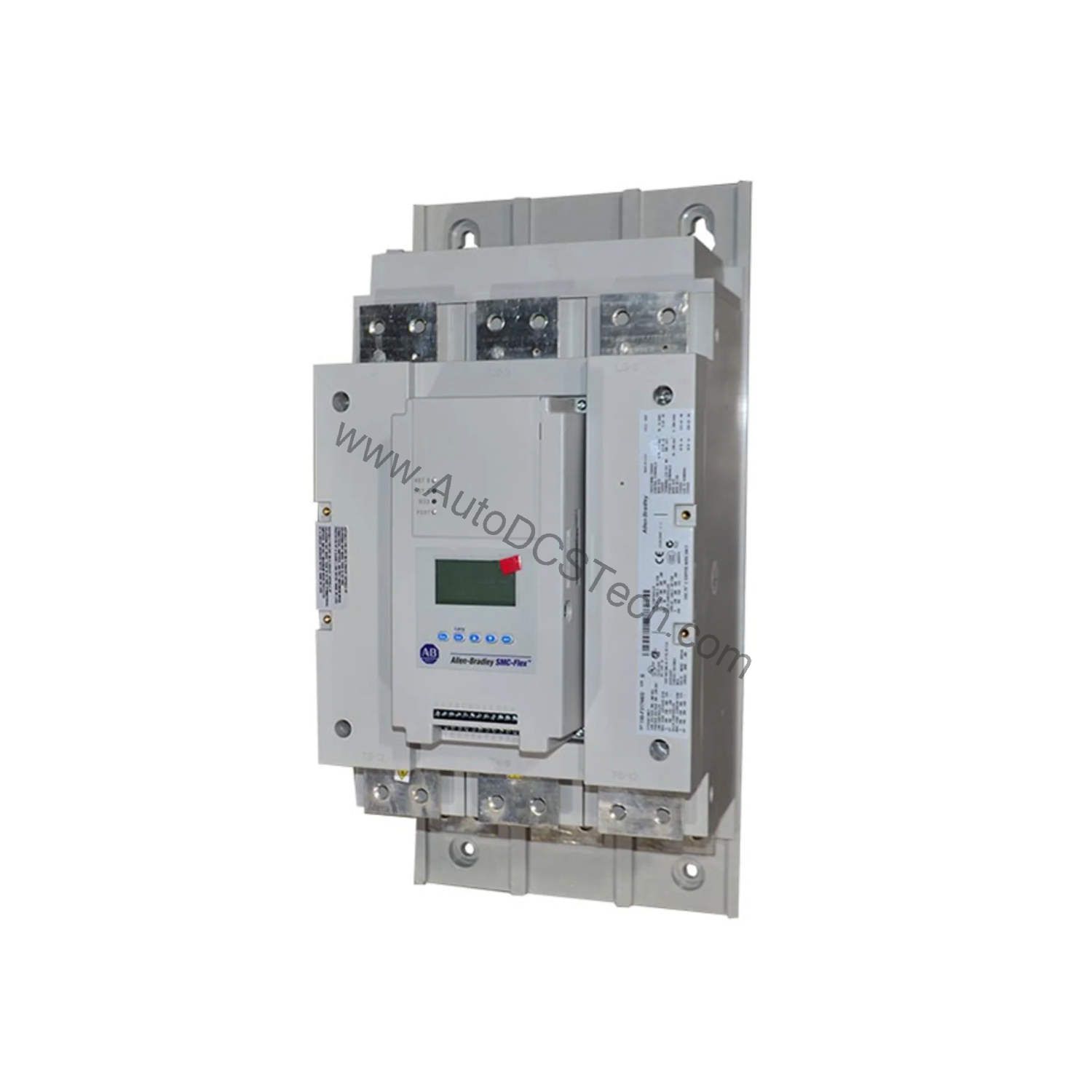

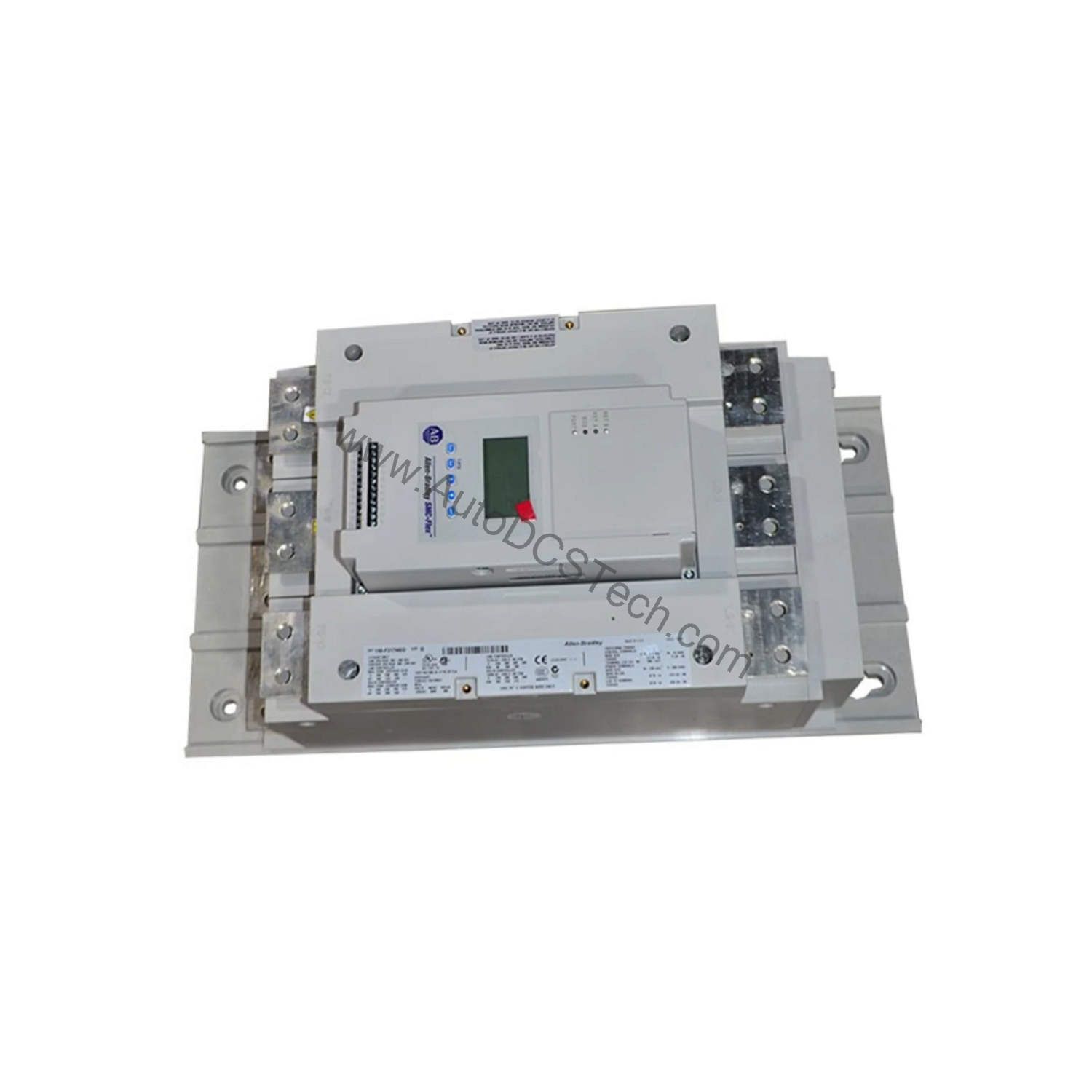

Allen-Bradley 150-F317NBDB SMC-Flex Smart Motor Controller for Soft Start Applications

Technical Specifications Breakdown

Key parameters for the 150-F317NBDB are listed below for quick reference:

Application in Industrial Motor Control

The soft start mode reduces inrush current and mechanical shock, extending motor life. With a pollution degree rating of 2, it suits typical industrial settings with non-conductive contamination. The ability to connect one or two peripheral devices expands its utility in automated lines.

Installation and Operational Guidance

Mount the 150-F317NBDB in a clean, dry enclosure when operating between 23 and 104 degrees Fahrenheit. For open operation, the range extends to 122 degrees Fahrenheit. Ensure ambient humidity stays between 5 and 95% non-condensing. The keypad allows local configuration of torque settings and monitoring of status indicators for starting, stopping, and fault conditions. Always disconnect power before any repair work.

Maintenance and Reliability

Regular inspection of the controller’s status indicators helps detect errors early. The built-in diagnostic features identify operating anomalies before they cause damage. Given the weight of 99.00 lbs, ensure proper mounting support. Storage temperature range from -13 to 158 degrees Fahrenheit allows for flexible warehousing. Periodic cleaning of the enclosure vents maintains adequate cooling.

Smooth Motor Control with Keypad Precision

Industrial facilities often face challenges with motor startup surges that can damage equipment and disrupt operations. The Allen-Bradley 150-F317NBDB SMC-Flex controller addresses this by providing controlled acceleration and deceleration, minimizing power surges and mechanical stress. This smart motor controller uses a keypad interface for direct input, allowing operators to set initial torque from 0 to 90% of locked rotor torque for precise soft starts.

Selection and Purchasing Advice

When selecting a motor controller, verify that the 150-F317NBDB matches your motor’s voltage and current requirements (refer to the motor nameplate). AutoDCSTech offers this unit with detailed support for integration. Please verify current lifecycle status and availability with AutoDCSTech before ordering.
