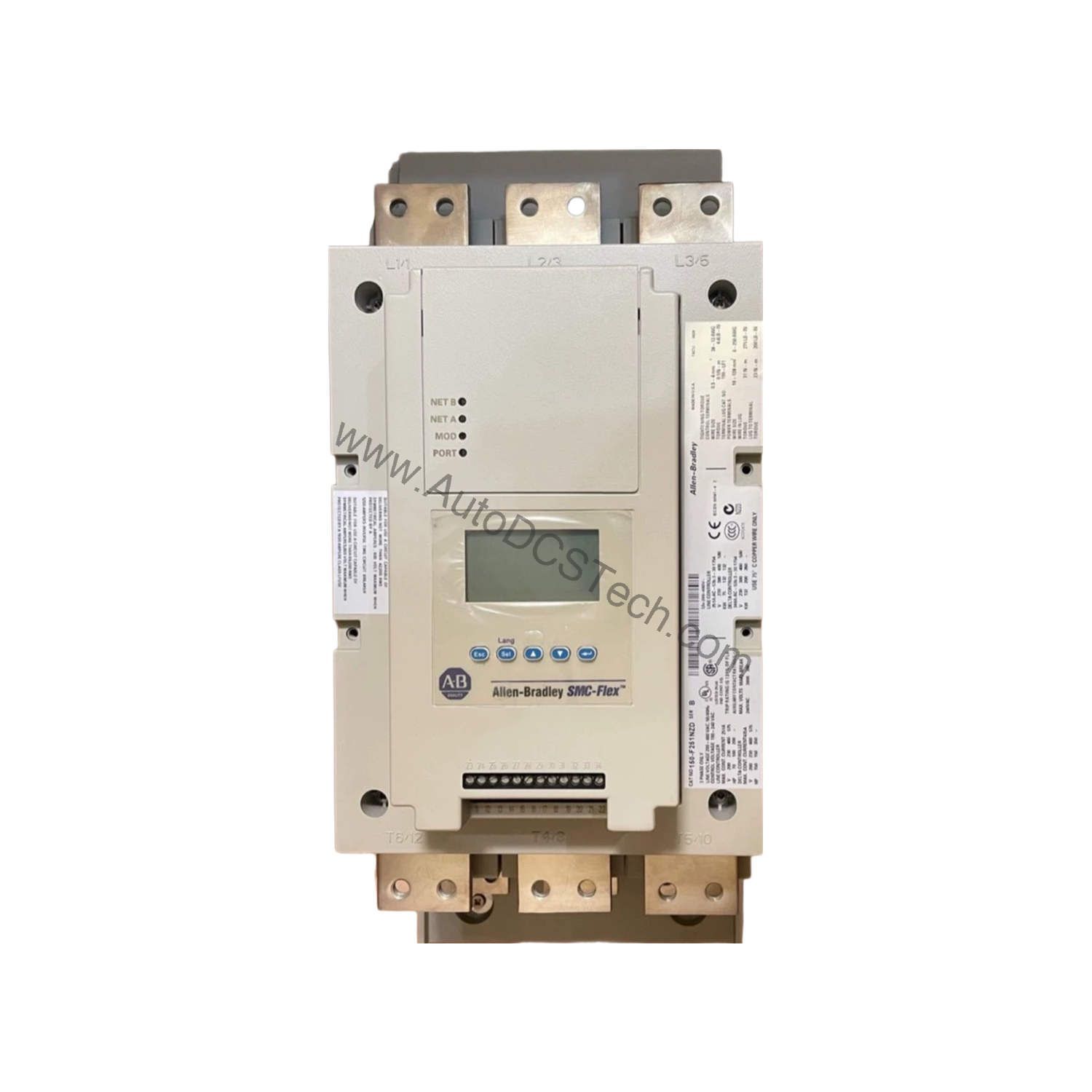

Allen-Bradley 150-F361FHD SMC-Flex Solid State Controller 361A

Technical Specifications Breakdown

Key parameters for the 150-F361FHD are listed below for quick reference:

Industry Applications and Operational ROI

The 361 A rating supports motors up to 300 HP at 460V AC, reducing downtime and maintenance costs. With seven modes of operation—including dual ramp start, soft start, and current limit start—you can tailor starting profiles to specific loads, minimizing mechanical shock.

Installation and Setup Guidance

Mount the IP65 (Type 4/12) enclosure in a clean, dry location away from excessive vibration. Ensure the input line voltage matches the 200-208V AC, 3-phase supply. Connect control wiring for the 100-240V AC control circuit per the manual. Use the keypad and LCD display to configure parameters such as ramp times and current limits. Verify all protection settings—like overload and jam detection—before commissioning.

Maintenance and Reliability

Periodically inspect the enclosure seals to maintain the IP65 rating. Check for dust accumulation on the cooling fins. The built-in electronic motor overload protection and voltage unbalance monitoring help prevent premature failures. Although the controller includes self-diagnostics, schedule annual functional tests of the protection features to ensure trip levels remain accurate.

Compatibility and Integration

The 150-F361FHD supports DPI communication for integration with Allen-Bradley control systems. It includes four programmable auxiliary contacts and CT on each phase for precise metering. The built-in SCR bypass/run contactor enhances efficiency by reducing heat dissipation during full-speed operation.

Selection Guide and Purchasing Advice

When selecting a solid state controller, verify that the controller rating (361 A, 300 HP at 460V AC) matches your motor full-load current. The IP65 enclosure suits washdown or dusty environments. Before ordering, please verify current lifecycle status and availability with AutoDCSTech. Our team can confirm stock and lead times for the 150-F361FHD.

Troubleshooting and Common Issues

If the controller trips on overvoltage or undervoltage, check the incoming line voltage against the 200-208V AC specification. For stall or jam detection trips, adjust the trip level and delay settings via the keypad. If the display shows no power, verify the control voltage (100-240V AC) is present. Always consult the manual before changing parameters.
