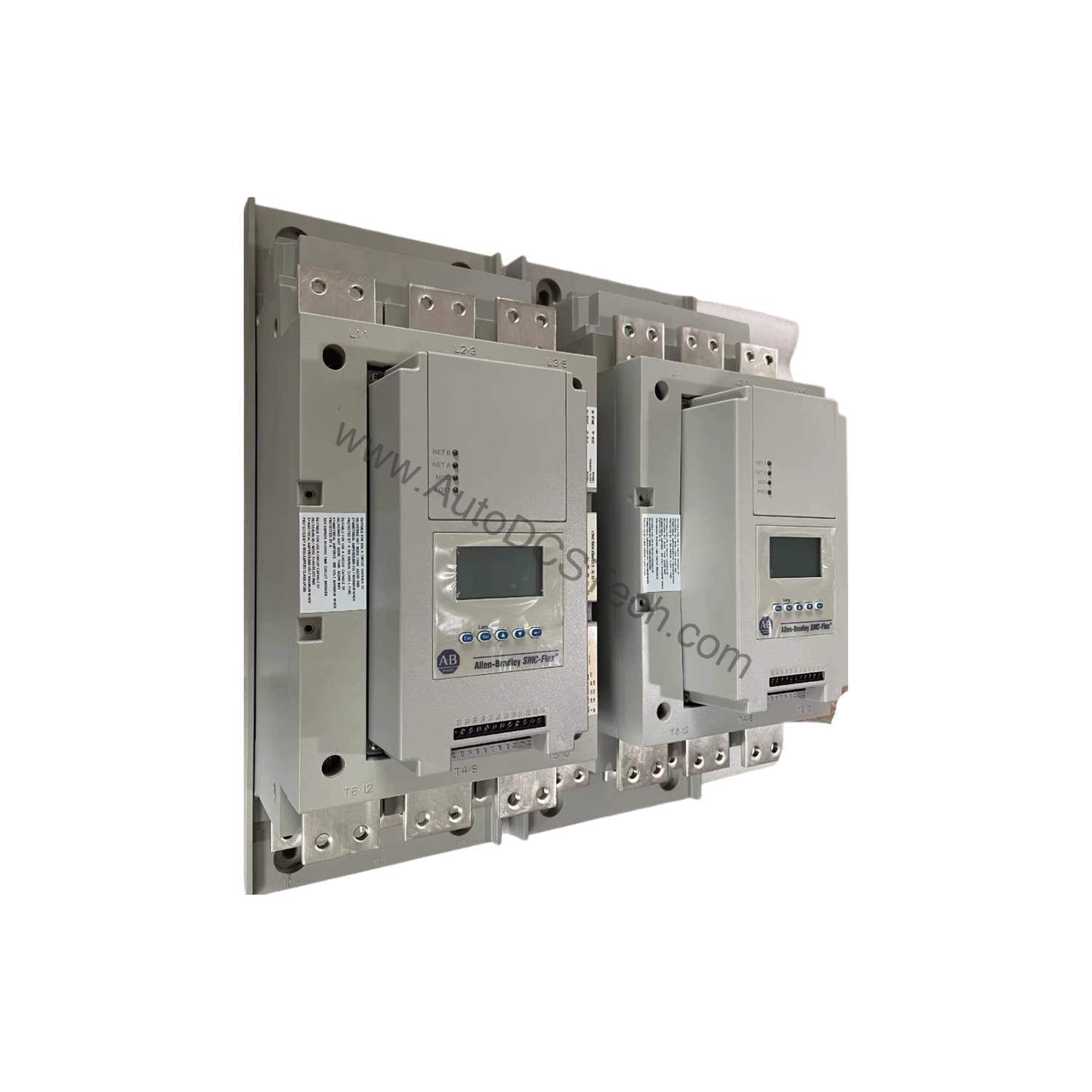

Allen-Bradley 150-F251NCD SMC-Flex Solid State Motor Controller

Product Overview

When precise motor control and reliability are critical, the Allen-Bradley 150-F251NCD SMC-Flex Solid State Motor Controller delivers. This controller is designed for demanding industrial applications, providing smooth starting and stopping while reducing mechanical stress. With a robust 251 A rating and 200 Hp at 460V AC, it handles heavy loads efficiently. The open enclosure design facilitates integration into existing panels, making it a versatile choice for engineers.

Technical Specifications Breakdown

Key parameters for the 150-F251NCD are listed below for quick reference:

Industry Applications

In material handling, the 251 A rating supports high-torque starts without voltage dips. For HVAC fans, the 200-575V AC input ensures compatibility with global power grids. Its 200 Hp capacity at 460V AC makes it suitable for large industrial fans and blowers, improving energy efficiency by limiting inrush current.

Installation & Setup Guidance

Mount the controller in a clean, dry enclosure with adequate ventilation. Ensure the input line voltage matches the 200-575V AC, 3-phase supply. Connect control voltage (100-240V AC) per the wiring diagram. Use appropriately rated cables for 251 A continuous current. Verify that the motor's full-load current does not exceed 251 A. For optimal performance, set the starting mode via the LCD and keypad—options include soft start, current limit, and kick-start.

Maintenance & Reliability

Periodically inspect the open enclosure for dust or debris buildup. Check all power connections for tightness, as loose terminals can cause overheating. The solid-state design has no moving parts, reducing mechanical failure risk. Monitor the LCD for fault codes; refer to the manual for specific diagnostics. Ensure ambient temperature remains within the controller's rated range.

Selection Guide & Purchasing Advice

When selecting a solid state controller, match the 150-F251NCD's 251 A rating to your motor's full-load current. For motors rated 200 Hp at 460V AC, this model is a direct fit. If your application requires a different enclosure type, consider other SMC-Flex variants. AutoDCSTech offers this controller with fast shipping and expert support. Please verify current lifecycle status and availability with AutoDCSTech before ordering.
