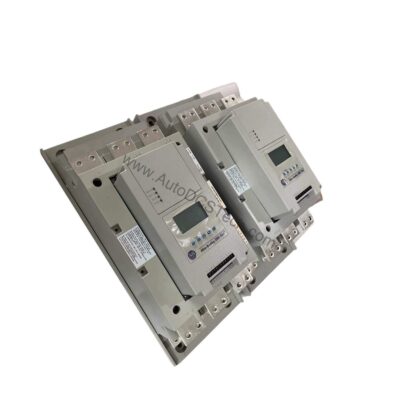

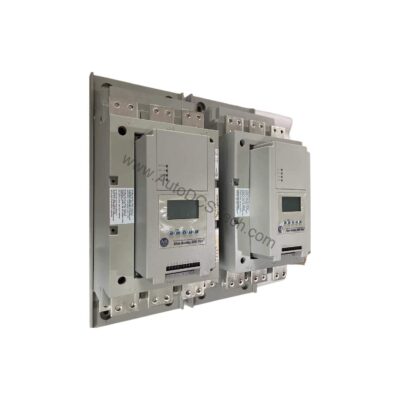

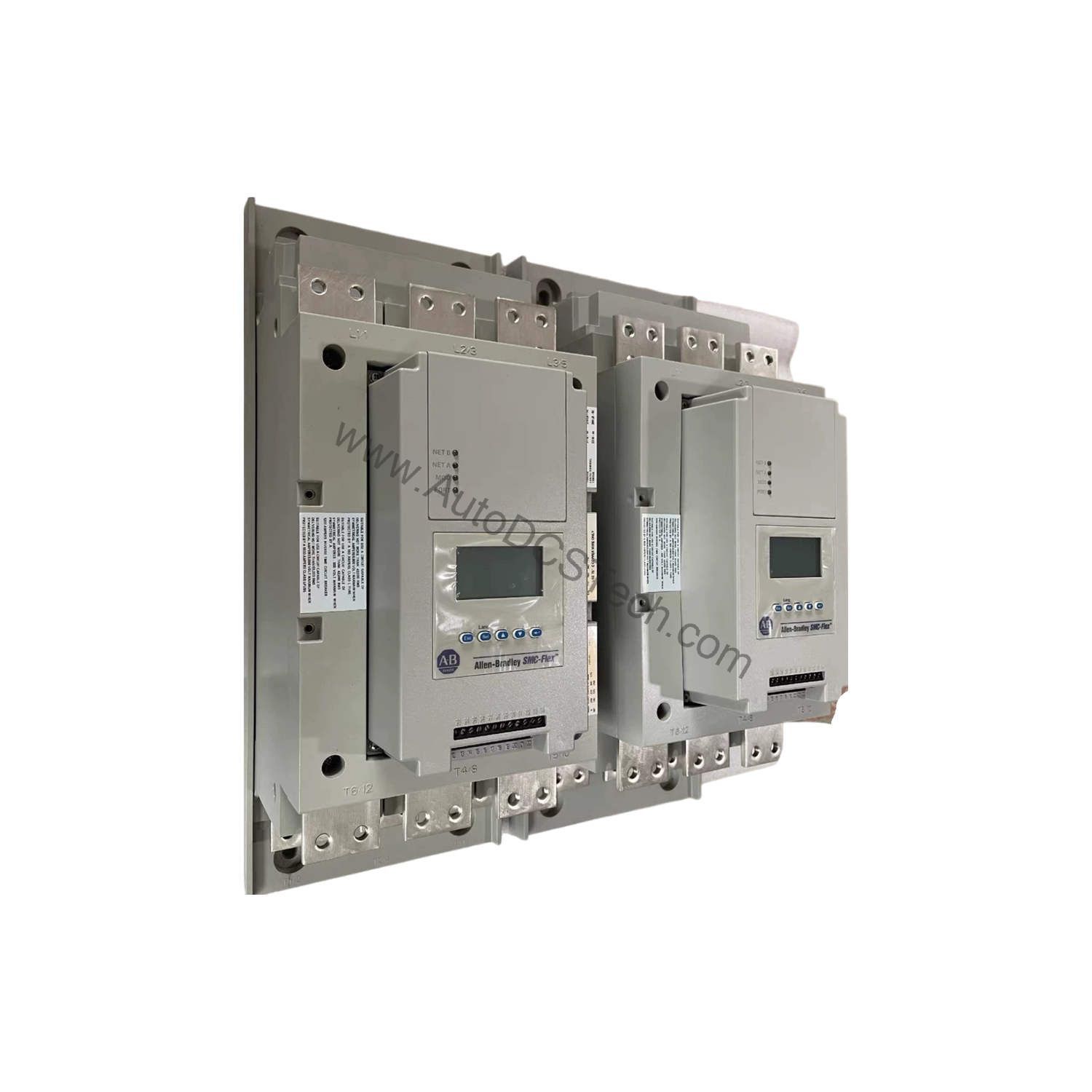

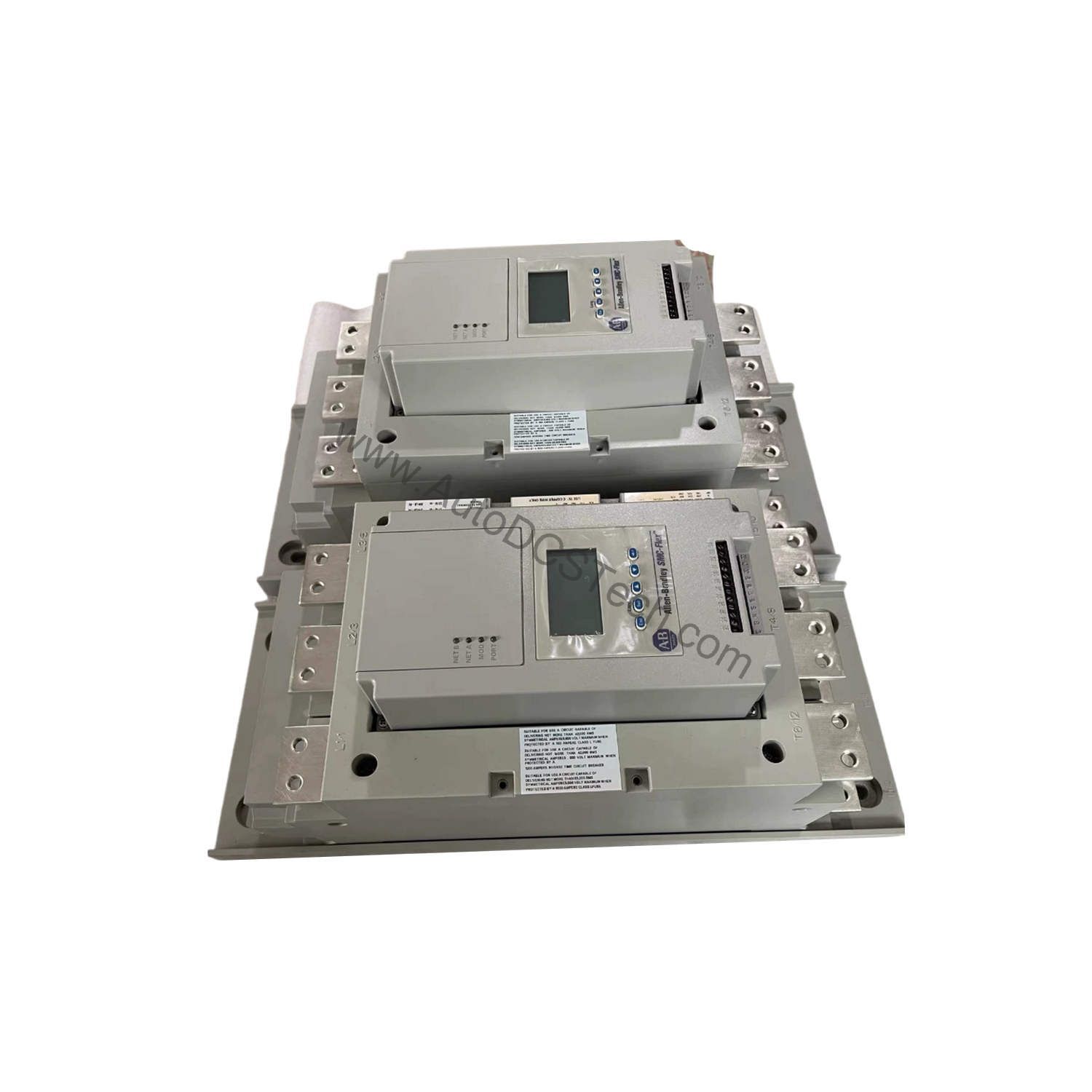

Allen-Bradley 150-F251NZD SMC-Flex Smart Motor Controller 251A

Technical Specifications Breakdown

Key parameters for the 150-F251NZD are listed below for quick reference:

Industry Applications: Heavy-Duty Motor Starting

The 150-F251NZD is designed for three-phase motors in applications such as pumps, fans, compressors, and conveyors. Its 251A rating and 200 Hp @ 460V AC capacity suit medium-to-large industrial loads. By using solid-state technology, it reduces mechanical stress on driven equipment, extending life and lowering total cost of ownership.

Installation & Setup Guidance

Mount the open-enclosure controller in a suitable cabinet with adequate ventilation. Ensure the input line voltage matches facility power: 230-690V AC, 3-phase, 50/60 Hz. Connect control power per the 100-240V AC specification. Follow Allen-Bradley wiring diagrams for proper phase sequence and grounding. Do not exceed the 251A continuous rating.

Maintenance & Reliability

Periodically inspect the controller for dust accumulation, loose connections, and signs of overheating. Keep the enclosure clean and ensure cooling airflow is unobstructed. Solid-state designs require less frequent maintenance than electromechanical starters, but annual inspection is recommended.

The Evolution of Motor Control: Why the SMC-Flex Matters

Industrial motor control has advanced from simple electromechanical starters to intelligent solid-state systems. The Allen-Bradley 150-F251NZD SMC-Flex Smart Motor Controller represents this evolution, offering precise starting and stopping for demanding applications. As a solid-state controller with an open enclosure, it eliminates moving parts that wear over time, reducing maintenance and improving reliability.

Compatibility & Integration

The SMC-Flex line integrates with standard motor control centers and PLC systems. This controller accepts 100-240V AC control signals, making it compatible with common industrial control voltages. Verify communication protocol requirements separately.

Selection Guide & Purchasing Advice

When selecting a motor controller, match the full-load current and voltage of your motor to the 150-F251NZD's ratings. AutoDCSTech stocks this unit and can assist with availability and lifecycle status.

Troubleshooting & Common Issues

If the controller fails to start, verify input power is within 230-690V AC and control voltage is present. Check for blown fuses or tripped breakers. Overheating may indicate overload or inadequate ventilation. For persistent faults, consult the SMC-Flex user manual.
