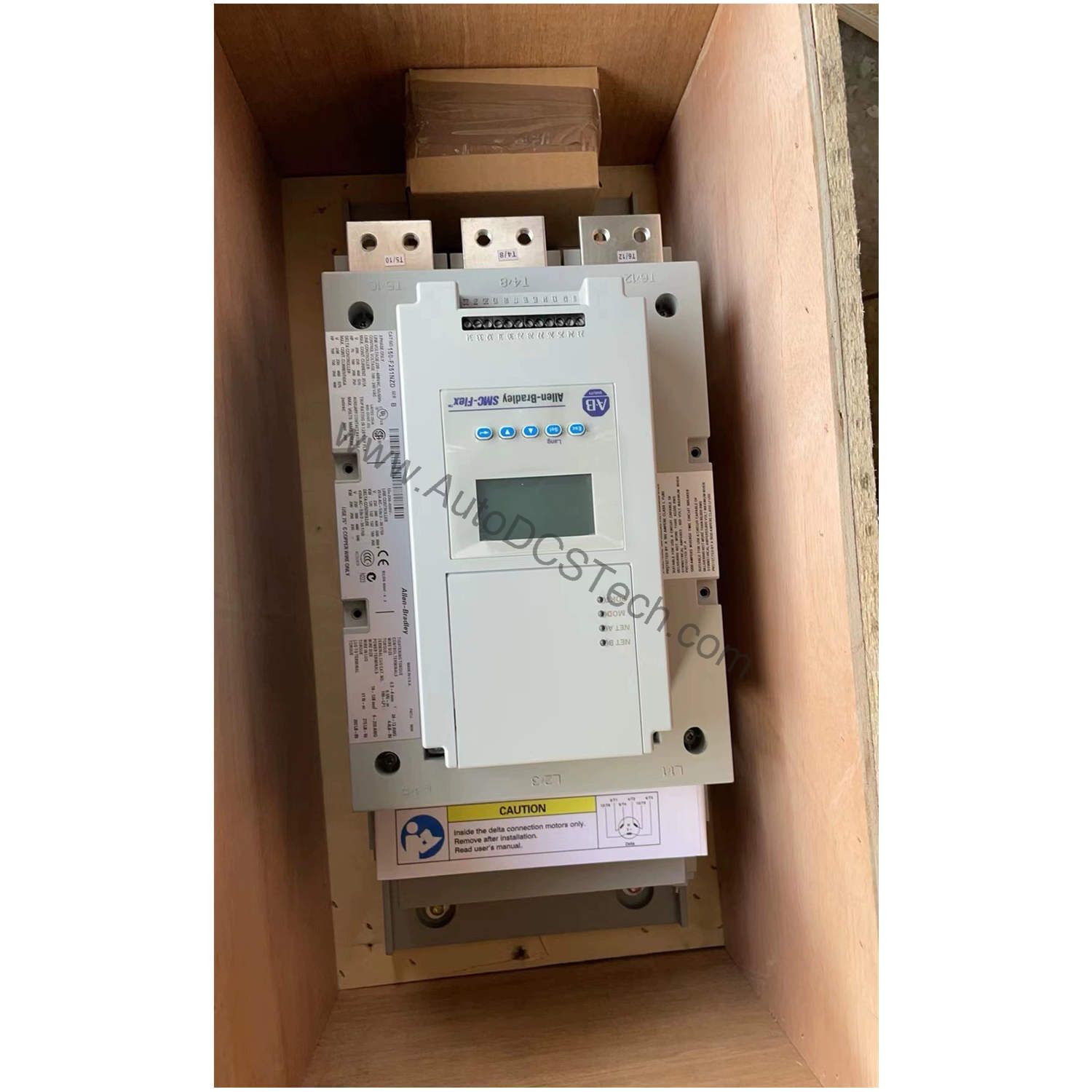

Allen-Bradley 150-F251NBDD SMC Flex Smart Motor Controller Overview

Technical Specifications Breakdown

Key parameters for the 150-F251NBDD are listed below for quick reference:

Application-Driven Cost Benefits

Pumping Systems and Fluid Handling

Using the pump control optional feature, the controller reduces fluid surges in pumping systems. This minimizes pipe stress and valve wear, directly lowering repair costs and unplanned downtime.

Conveyor and Material Handling

Soft start and current limit start modes prevent belt slippage and mechanical shock during startup. This extends conveyor component life and reduces energy spikes, improving overall operational ROI.

Installation and Setup Guidance

Install the controller in an environment with pollution degree 2 rating. Ensure power/control wiring follows standard squirrel-cage induction motor or Wye-Delta, 6-lead motor configurations. The open enclosure requires mounting in a clean, dry location within the -5 to 50 degrees Celsius operating range. Verify input line voltage matches the 200 to 480 Volts AC, 3-phase supply, and control voltage is 100 to 240 Volts AC.

Maintenance and Reliability

Periodically inspect the controller for dust accumulation and ensure ambient humidity stays within 5 to 95% non-condensing. Check that the altitude does not exceed 2000 meters. Regularly test protection features such as power loss, line fault, and phase reversal protection to maintain system integrity.

Cost-Efficient Motor Control with the Allen-Bradley 150-F251NBDD SMC Flex

Industrial operations demand reliable motor starting and stopping to minimize downtime and energy waste. The Allen-Bradley 150-F251NBDD SMC Flex smart motor controller delivers advanced soft starting and protection in a compact open enclosure. By reducing mechanical stress and electrical surges, this controller lowers maintenance costs and extends equipment life.

Compatibility and Integration

The controller integrates with standard induction motors and supports multiple starting modes: soft start, current limit start, dual ramp, full voltage, linear speed acceleration, preset slow speed, and soft stop. It includes 4 programmable auxiliary contacts and status indicators for starting, stopping, up to speed, alarm, and fault conditions.

Selection Guide and Purchasing Advice

When selecting a motor controller, consider your motor type, voltage requirements, and environmental conditions. The 150-F251NBDD suits applications needing flexible starting and stopping with comprehensive protection. Contact AutoDCSTech for lifecycle status and availability before ordering.

Troubleshooting and Common Issues

If the controller triggers an alarm, check for voltage unbalance, phase reversal, or ground fault conditions. Use the metering data (Amps, Volts, kW, power factor) to diagnose overload or underload situations. Ensure the control voltage remains within 100 to 240 Volts AC to avoid erratic behavior.
