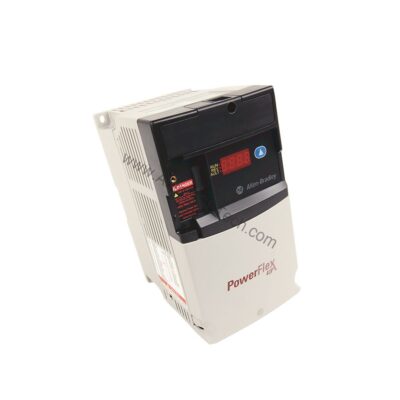

Allen-Bradley 22D-B017N104 PowerFlex 40P AC Drive, 240V, 3-Phase, 5HP

Technical Specifications Breakdown

Key parameters for the 22D-B017N104 are listed below for quick reference:

Built for Real-World Industrial Applications

This drive is not just a component; it is a workhorse for a variety of machinery. From smart conveyors and packaging machines to ring spinning machines, diverters, palletizers, synthetic fiber spinning machines, and drafting machines, the 22D-B017N104 delivers reliable speed control. Its sensorless vector control is particularly effective for meeting low-speed torque demands, ensuring consistent performance even under challenging load conditions.

Installation and Setup Guidance

From a maintenance engineer's perspective, the 22D-B017N104 is designed for straightforward installation. The open NEMA Type (IP20) enclosure is suitable for panel mounting in a clean, dry environment. If a higher degree of protection is required, an optional IP30 (NEMA 1) conduit box can be adapted to increase the drive's ratings. The integral 4-digit backlit display and 10 LED indicators provide clear real-time status, making initial setup and ongoing monitoring intuitive. A reset button allows for quick parameter modifications if a fault occurs.

Maintenance and Reliability

For long-term reliability, routine inspection is recommended. The drive's overload and overcurrent protection mechanisms safeguard both the drive and the motor. A notable feature is the removable MOV-to-ground, which can be easily removed if the drive is intended for use with ungrounded distribution systems. This attention to detail helps prevent nuisance trips and extends equipment life. Regular checks of the enclosure and connections will help maintain optimal performance.

PowerFlex 40P Adjustable Frequency Drive for Precision Speed Control

When production lines demand precise motor speed control without the bulk of larger drives, the Allen-Bradley 22D-B017N104 stands out as a compact and capable solution. This PowerFlex 40P series adjustable frequency AC drive is engineered for applications where space is tight and performance is non-negotiable.

Programming and Control Flexibility

Flexibility is a key strength of this drive. For more versatile control, a NEMA Type 1 hand-held remote LCD keypad or a NEMA Type 4X variant with the CopyCat function can be used. This allows for quick duplication of parameters across multiple drives, saving time during commissioning or replacement.

Selection and Purchasing Advice

When selecting a replacement or a new drive, verify that the input power, output current, and horsepower ratings match your application requirements. The 22D-B017N104 is a standard-duty drive with a frame size B, weighing 1.905 kilograms, making it a lightweight yet robust option. For availability and current lifecycle status, contact AutoDCSTech. We are an industrial automation parts supplier dedicated to helping you keep your operations running smoothly.
