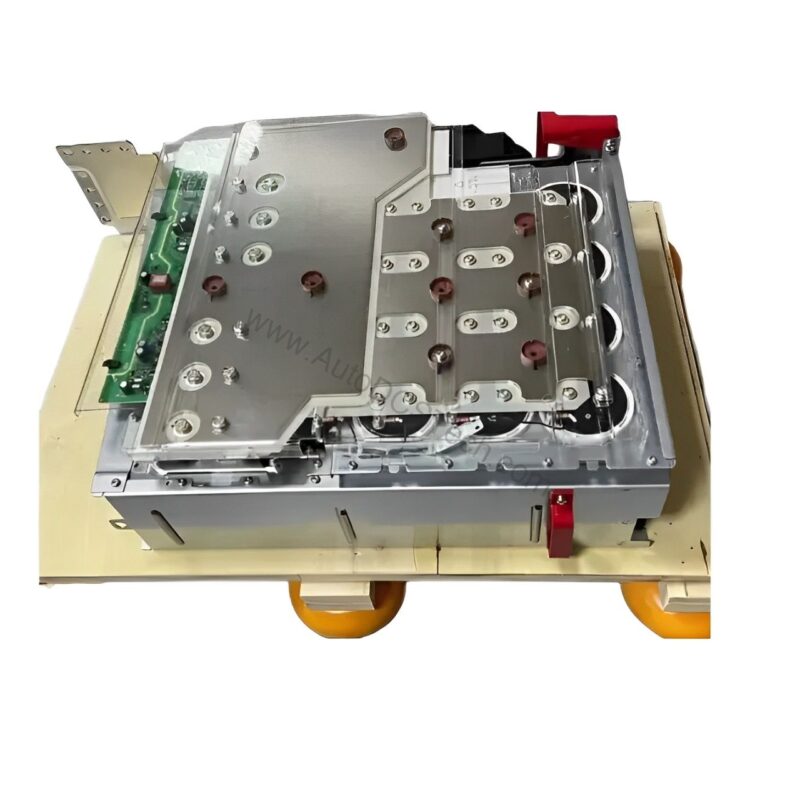

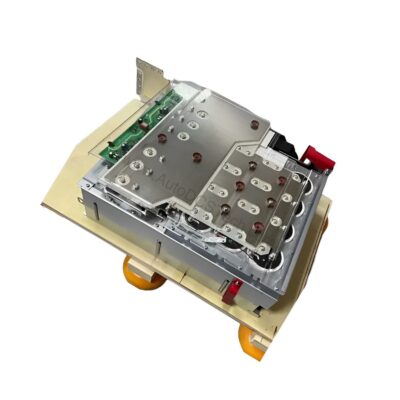

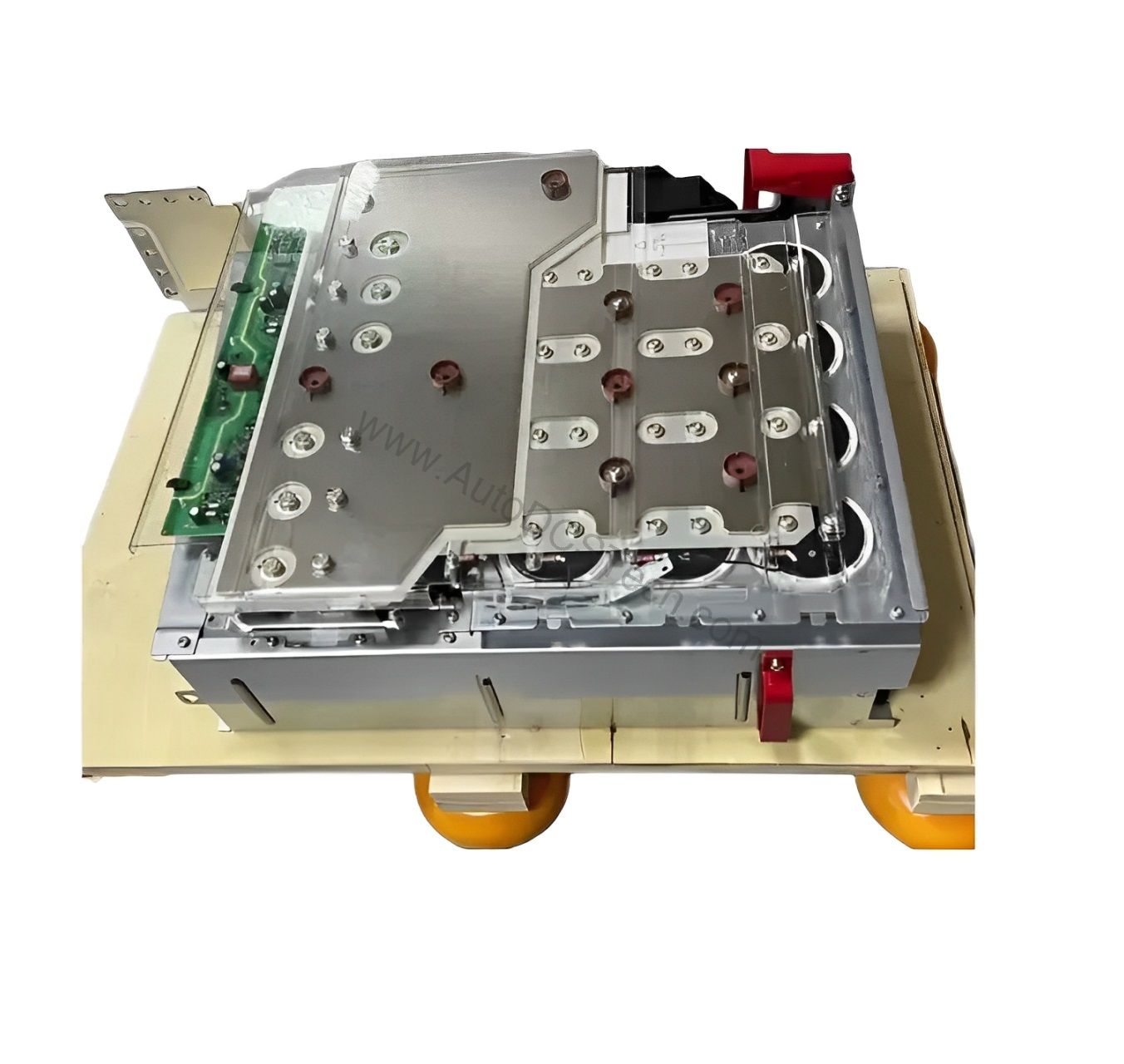

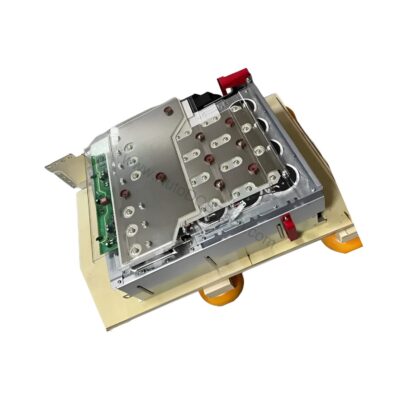

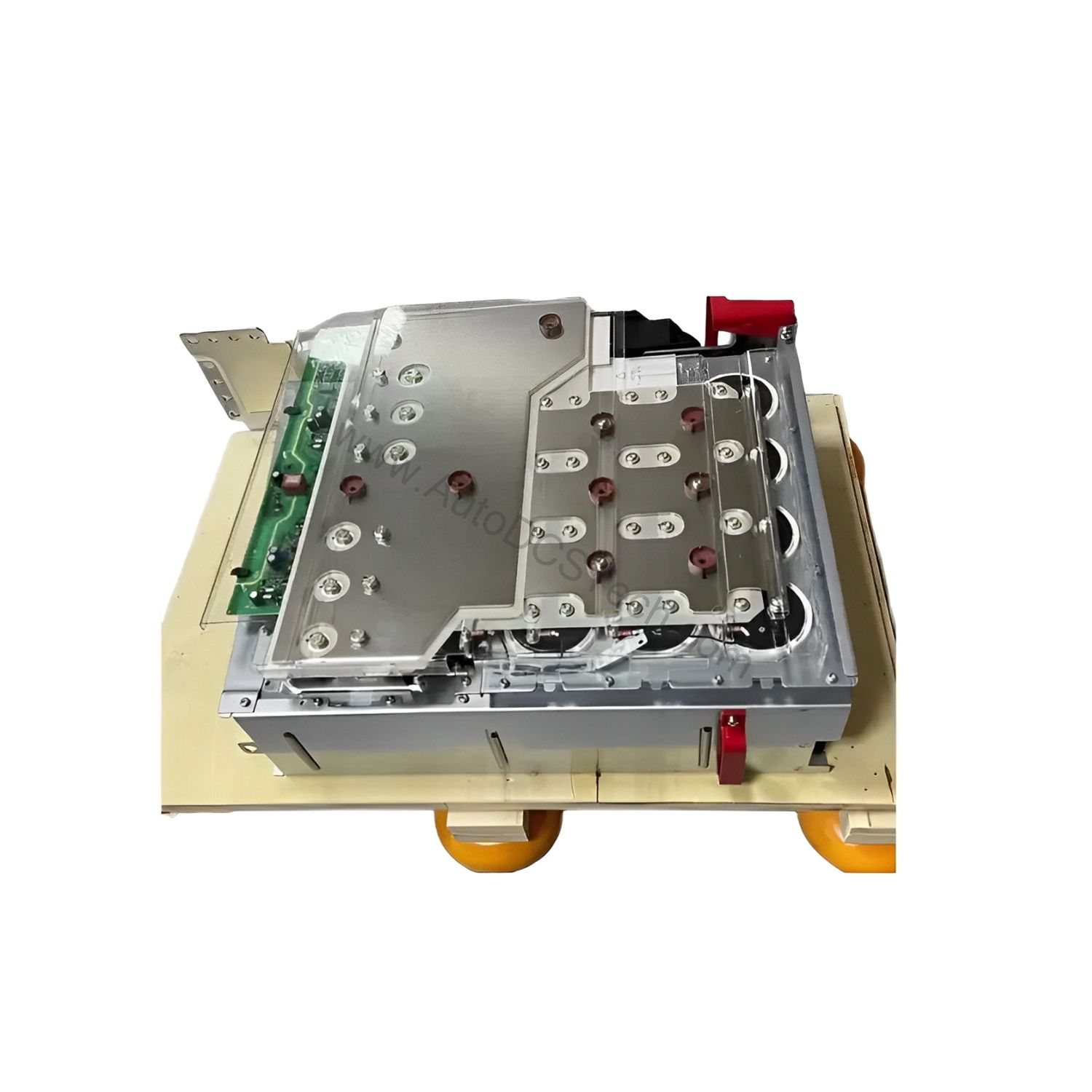

6SL3352-1AG41-3FA1 SINAMICS PWB FSJ 675-1035V DC 1270A

Key Technical Specifications of the Siemens 6SL3352-1AG41-3FA1

Understanding the exact specifications is critical for proper system integration. The table below summarizes the core parameters you can rely on.

These values are taken directly from the manufacturer's data. The wide input voltage range offers flexibility for different grid conditions, while the high current rating supports heavy loads without derating. Additionally, the module has been compliant with RoHS substance restrictions since 2016.07.01, ensuring environmental responsibility.

Real-World Applications for the 6SL3352-1AG41-3FA1

In these sectors, continuous operation is essential, and the 6SL3352-1AG41-3FA1 delivers the necessary current to keep motors running smoothly. For example, in a steel rolling mill, the module can supply the high torque required during the rolling process, improving product quality and throughput. Similarly, in a mining conveyor system, the robust design ensures reliable operation even under harsh environmental conditions.

Furthermore, because the module accepts a wide DC input range, it can be used in regenerative drive systems where energy is fed back to the DC bus. This capability supports energy savings and reduces overall operational costs. The high current rating also makes it suitable for retrofit projects where older, less efficient drives are replaced with modern SINAMICS technology.

Installation and Integration Considerations

Proper installation is key to maximizing the performance of the 6SL3352-1AG41-3FA1. When mounting the unit, ensure adequate clearance for airflow and cooling, as the module dissipates significant heat at full load. Follow the manufacturer's guidelines for bus bar connections and torque specifications. The module's dimensions—175.00 x 79.00 x 58.00 cm—should be accounted for in your cabinet design, and the weight of 105.70 kg requires a sturdy mounting frame.

Integration with the SINAMICS drive system is straightforward, but always verify that the DC bus voltage is within the specified range of 675-1035 V. Use appropriate fusing and disconnects per local electrical codes. For detailed wiring diagrams and parameter settings, consult the official Siemens documentation or contact AutoDCSTech for technical support.

Maintenance and Reliability

To ensure long-term reliability, periodic inspection of the 6SL3352-1AG41-3FA1 is recommended. Check for dust accumulation on heatsinks and fans, and verify that all power connections remain tight. The module's design minimizes component stress, but environmental factors like humidity and vibration can affect performance. Regular maintenance, as outlined in the manufacturer's manual, will help prevent unexpected failures and extend the service life of the unit.

Because the module has been in production since 2016, it has a proven track record in the field. The RoHS compliance since 2016.07.01 also reflects Siemens' commitment to environmentally friendly manufacturing. By choosing this module, you invest in a reliable component that supports your operational goals.

Availability and Support

The Siemens 6SL3352-1AG41-3FA1 is available through AutoDCSTech, a trusted supplier of industrial automation parts. Ensure you verify the current lifecycle status and availability before ordering, as product availability may change.
