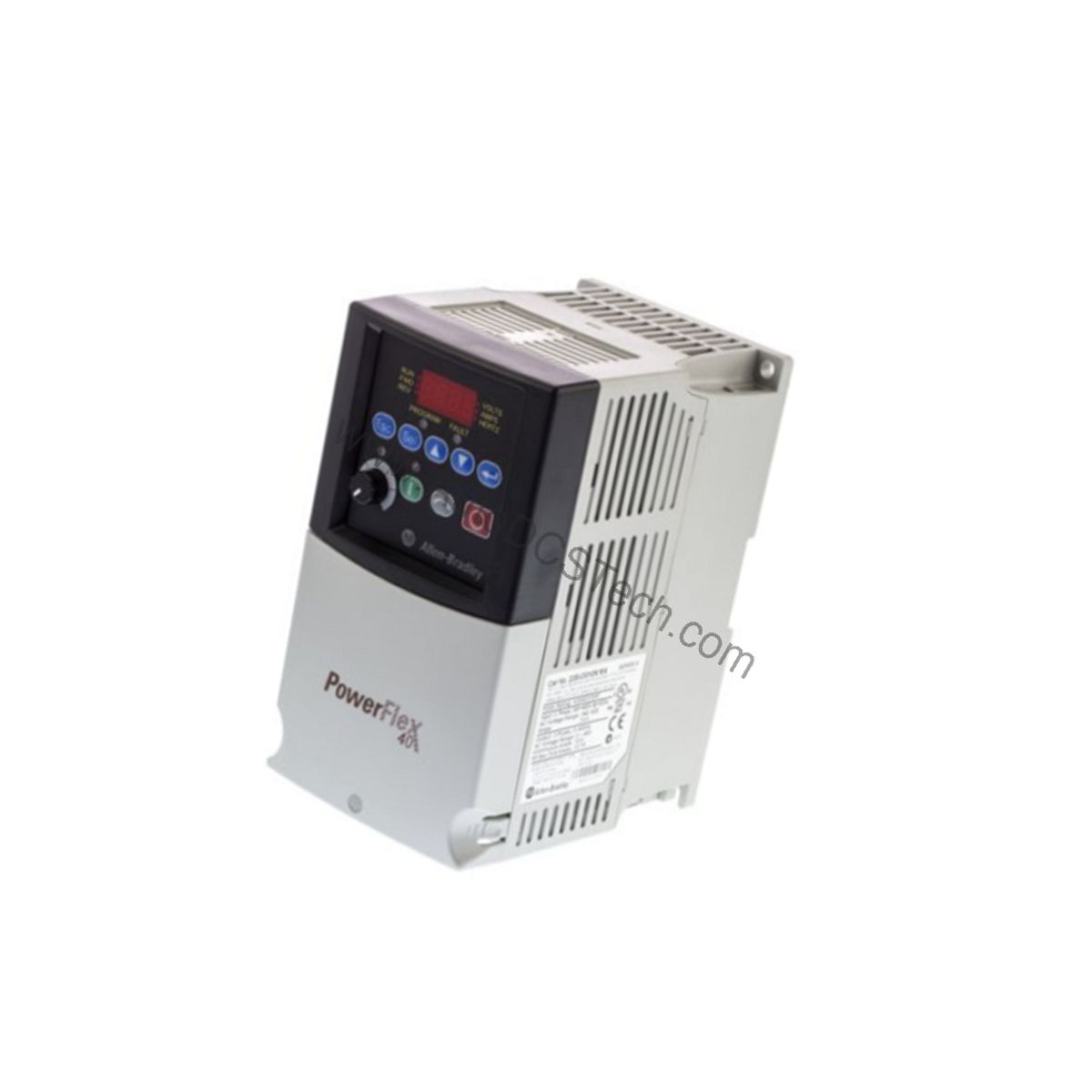

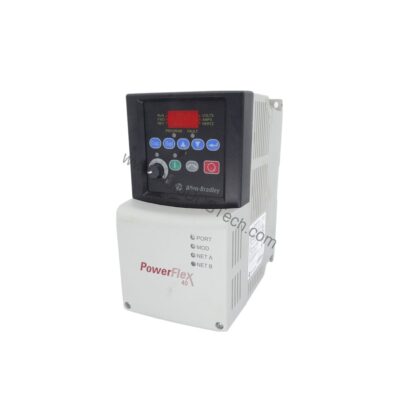

Allen-Bradley 22D-B012F104 PowerFlex 40P AC Drive, 12A, 3HP

Technical Specifications Breakdown

Key parameters for the 22D-B012F104 are listed below for quick reference:

Industry Applications That Save Money

Pump and Fan Control – In HVAC and water treatment, variable speed reduces energy consumption significantly. The 22D-B012F104 supports Volts per Hertz and Sensorless Vector control, letting you match motor speed to demand. Lower energy use directly lowers operating costs.

Conveyor Systems – For packaging and material handling, smooth acceleration and deceleration reduce mechanical stress. The built-in PID control maintains consistent speed under varying loads, improving product quality and reducing waste.

Machine Tools – With auto-tune, the drive adapts to the motor’s characteristics, optimizing performance. This reduces setup time and ensures efficient operation, cutting downtime and maintenance costs.

Installation and Setup Guidance

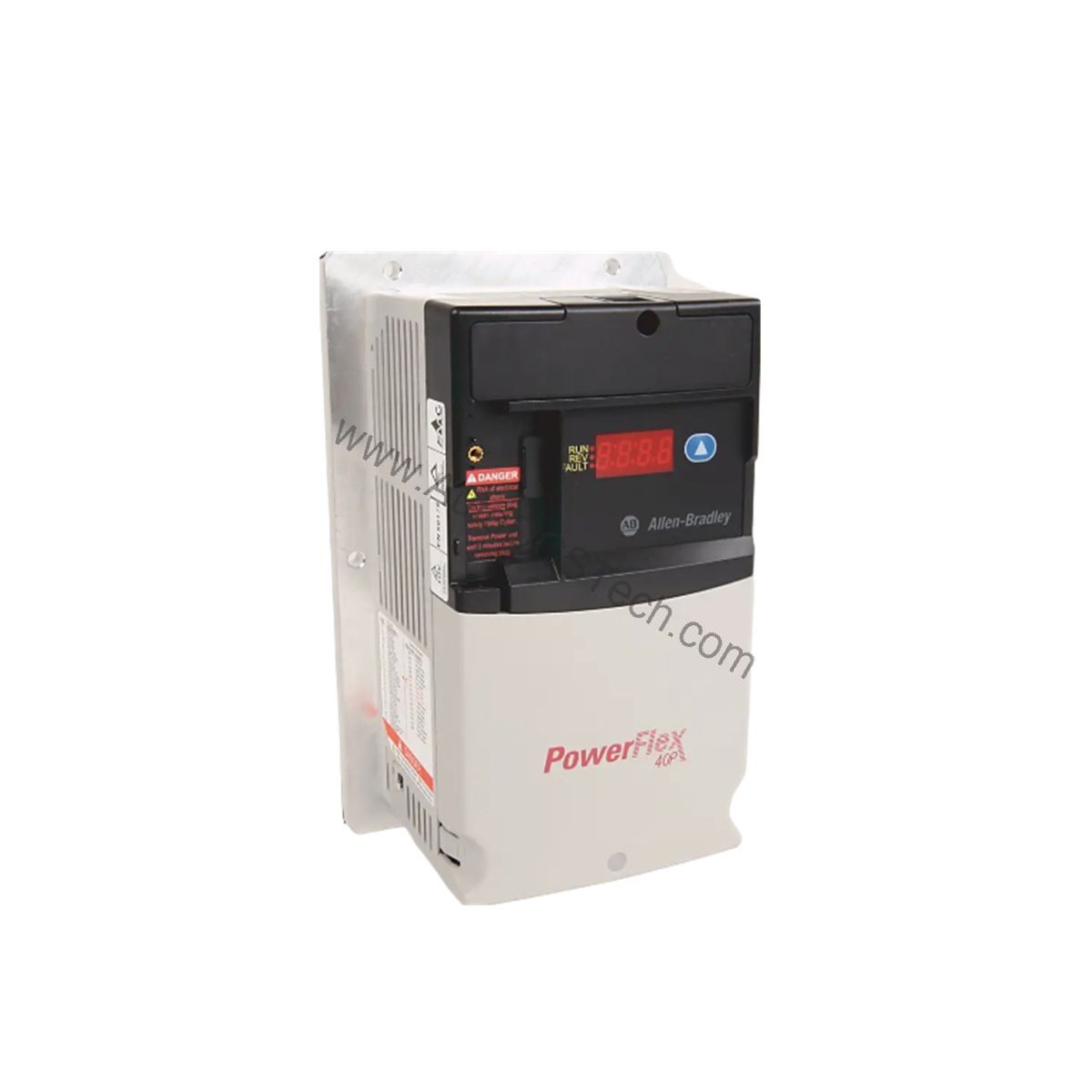

Mount the drive on a flat, vertical surface using the flange mount method. Ensure adequate clearance for airflow, as the IP20 (NEMA Type Open) enclosure is not fully sealed. Follow the wiring diagram provided in the user manual. Use the four-digit LCD and reset button for basic configuration. The drive includes three LED indicators (run, fault, rev) to show operational status. For optimal performance, run the auto-tune routine after wiring the motor. This feature compensates for motor cable length and characteristics, reducing energy losses.

Maintenance and Reliability

Regularly inspect the drive for dust accumulation and ensure the cooling fins are clean. The ambient temperature range is –10 to 50 degrees Celsius (14 to 122 degrees Fahrenheit), so verify the installation environment stays within these limits. Electronic motor overload protection extends motor life by preventing overheating. Ground fault protection and 6kV transient protection safeguard the drive from electrical surges, reducing unexpected failures and repair costs.

Cost-Effective Speed Control with the Allen-Bradley 22D-B012F104

When production lines demand precise motor speed without inflating capital budgets, the Allen-Bradley 22D-B012F104 PowerFlex 40P AC drive delivers a balanced solution. This three-phase drive operates on 240 Volts AC input and provides 12 Amps to control a 3 Horsepower motor. Its compact Frame Size B and flange mount IP20 (NEMA Type Open) enclosure reduce installation footprint and cost, making it a smart choice for original equipment manufacturers and retrofit projects.

Compatibility and Integration

The 22D-B012F104 is a standard AC drive that works with standard three-phase induction motors. It supports multiple control methods: Sinusoidal PWM, Volts per Hertz, and Sensorless Vector control. This flexibility allows integration into existing systems without major modifications. The drive does not include a CE compliant filter, so external filtering may be needed for certain EMC environments. Check your local regulations to ensure compliance.

Selection Guide and Purchasing Advice

When selecting a replacement or new drive, verify your motor’s full-load current and voltage. The 22D-B012F104 is rated for 12 Amps at 240 Volts AC, three-phase, suitable for 3 HP motors. Confirm the enclosure type and mounting method match your panel design. For availability and lifecycle status, contact AutoDCSTech. We stock genuine Allen-Bradley components and offer competitive pricing. Order today to minimize downtime and improve operational efficiency.
