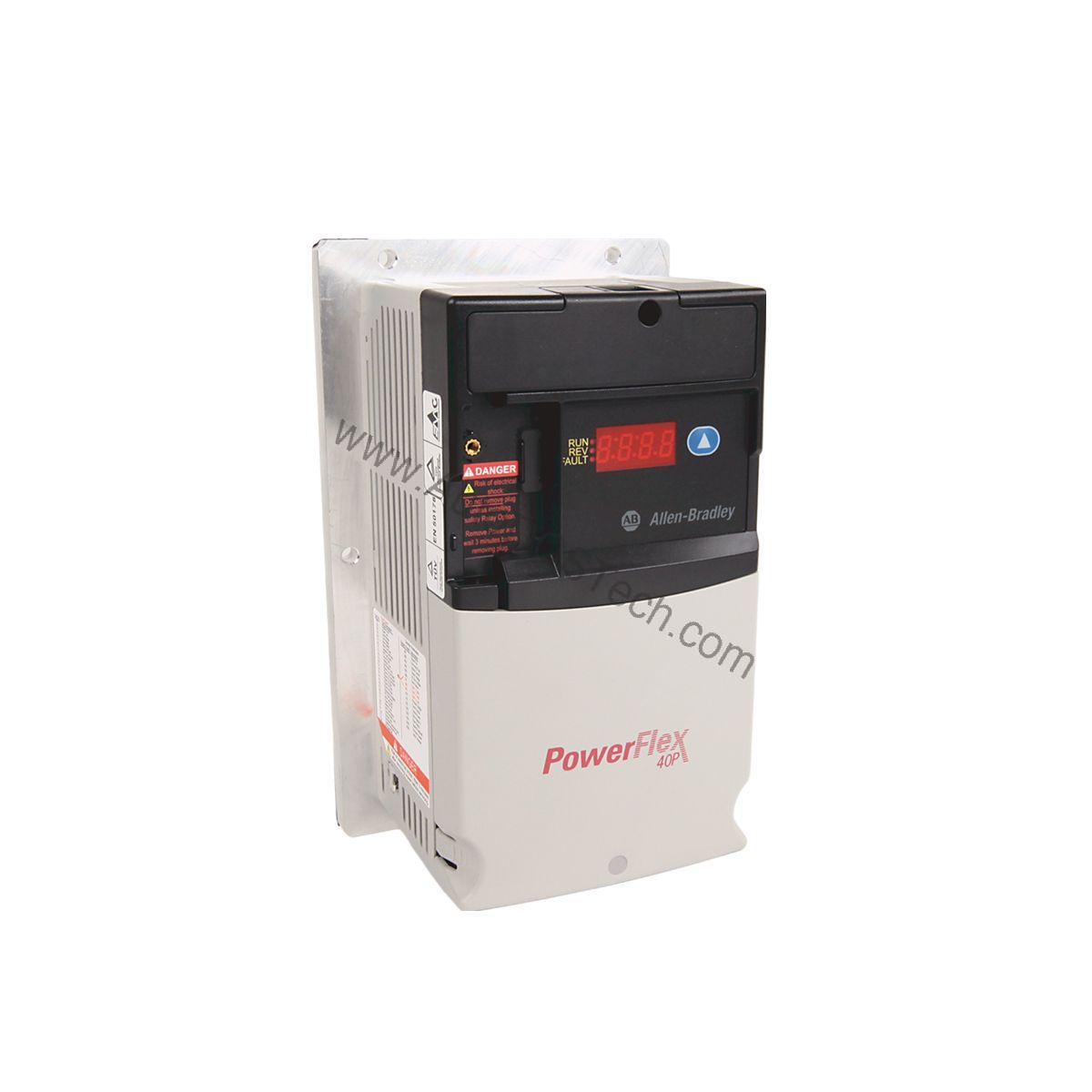

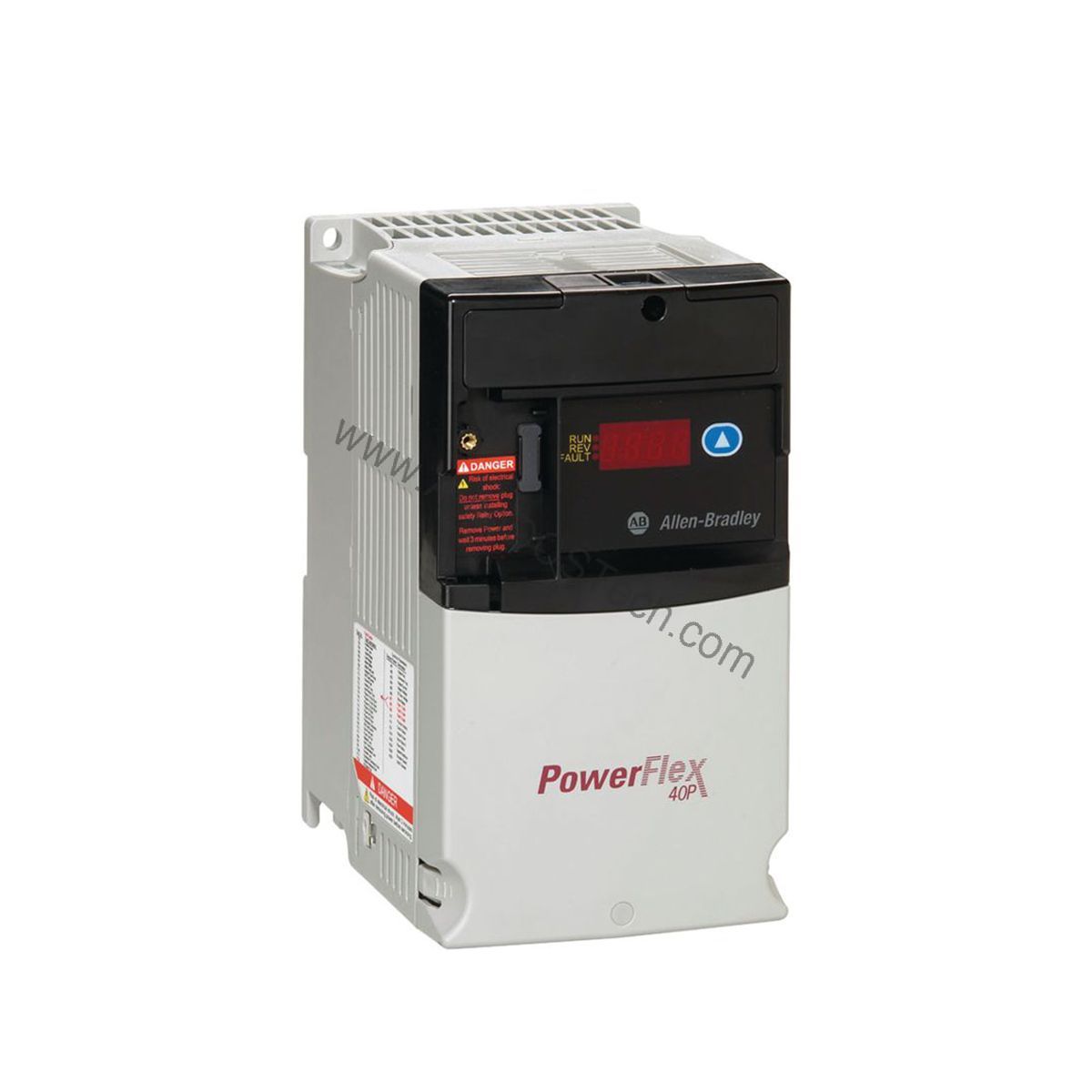

Allen-Bradley 22D-D012F104 PowerFlex 40P AC Drive, 12A, 480V

Technical Specifications Breakdown

Key parameters for the 22D-D012F104 are listed below for quick reference:

This drive operates with a three-phase 480 Volts AC input supply. It delivers a rated output current of 12 Amps, supporting motors up to 7.5 Horsepower. The unit has a 10% voltage tolerance and a frequency range of 48 to 63 Hertz. It can withstand a short circuit current of up to 100,000 Amps Symmetrical, though the actual rating depends on the circuit breaker ratings.

Industry Applications for the PowerFlex 40P Drive

The 22D-D012F104 is a closed-loop AC drive designed for industrial environments. Its compact size and lightweight construction make it easy to install in most setups. Common applications include:

• Conveyor Systems: The adjustable frequency control ensures smooth starts and stops, reducing product damage and mechanical stress.
• Pumps and Fans: By adjusting motor speed to match demand, this drive helps optimize energy consumption and extend equipment life.
• Packaging Machinery: The precise speed control maintains consistent output, improving product quality and reducing waste.

The drive's simple user interface, featuring a 4-digit display, an integrated LCD keypad, and three additional indicators with scrolling buttons, simplifies setup and monitoring. This user-friendly design helps operators quickly adjust parameters and diagnose issues.

Installation and Setup Guidance

Before installation, verify that the input supply matches the drive's rating of 480 Volts AC three-phase. Ensure the enclosure is properly grounded according to local electrical codes. The IP20 flange mount design allows for panel mounting, but it does not provide protection against water or dust ingress. Install the drive in a clean, dry location with adequate ventilation to prevent overheating.

When wiring, follow the manufacturer's manual for terminal connections and torque specifications. Use appropriate fuses or circuit breakers rated for the drive's short circuit current capability. After wiring, perform a thorough check of all connections before applying power. The drive can be programmed locally via the keypad or remotely through a remote keypad, offering flexibility in various control layouts.

Maintenance and Reliability

Regular inspection of the drive is essential for long-term reliability. Check for dust accumulation on the heatsink and clean it with a soft brush or low-pressure air. Inspect all power and control wiring for signs of wear or loose connections. Verify that the cooling fan (if present) operates correctly. The drive's robust design, with a 10% voltage tolerance and a wide frequency range, helps it withstand minor power fluctuations. However, ensure that the ambient temperature stays within the specified limits to avoid derating.

Compatibility and Integration

This drive communicates through the CIP RS-485 communication protocol, allowing integration with remote devices and control systems. Users can program the device through a remote keypad, making it easy to adjust settings from a distance. The drive also offers options for Category 3 Safe Torque Off, a protective feature that prevents the module or load motors from excessive current and sudden voltage dips. This safety function enhances operator protection and equipment integrity.

Selection Guide and Purchasing Advice

When selecting a replacement or new drive, confirm that the input voltage, phase, and amperage match your application. The 22D-D012F104 is a standard type drive without a CE compliant filter, so consider your installation's electromagnetic compatibility requirements. For availability and current lifecycle status, contact AutoDCSTech. They can provide genuine Allen-Bradley parts and assist with any technical questions. Ensure you verify the exact part number and specifications before ordering to guarantee compatibility with your system.

By choosing the Allen-Bradley 22D-D012F104, you invest in a reliable, efficient motor control solution that meets the demands of modern industrial automation.
