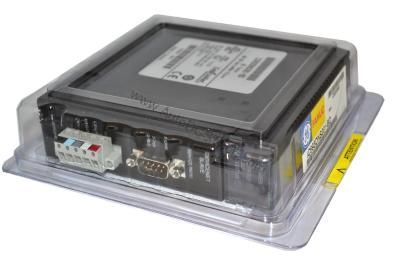

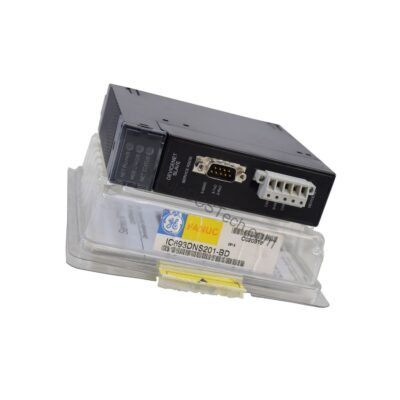

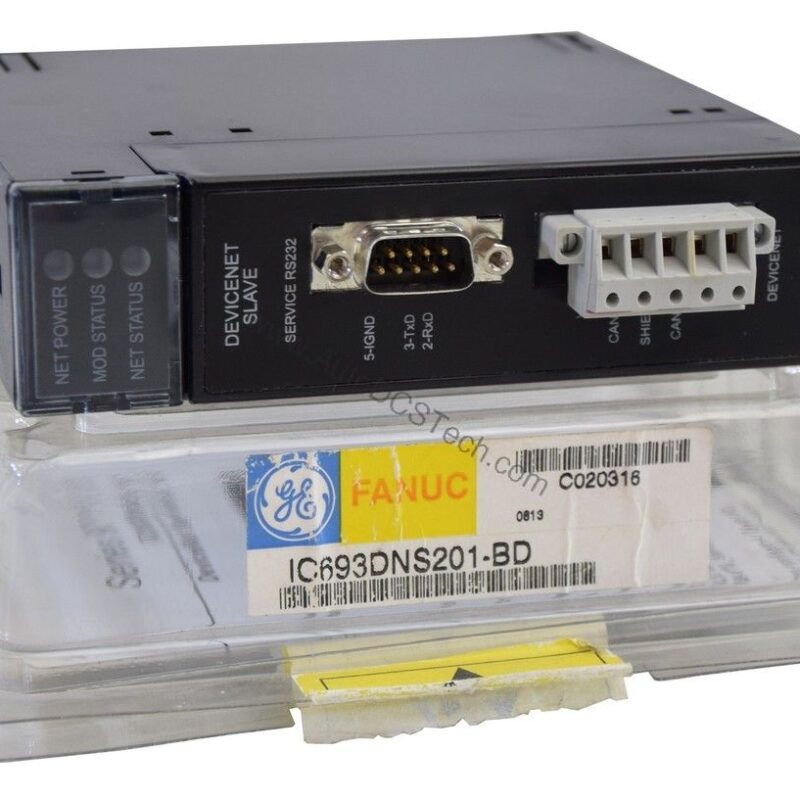

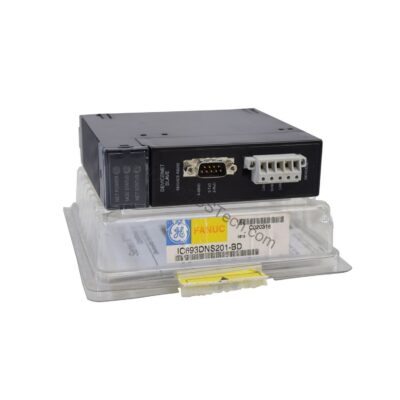

IC693DNS201: DeviceNet Slave Module for Series 90 30 and PACSystems
The IC693DNS201 is the DeviceNet Slave Module for Series 90 30 and PACSystems covered on this page. The attribute that decides whether it fits the existing installation without modification is 0 to 60 degrees Celsius (32 to 140 degrees Fahrenheit).
The reason to specify this exact variant is devicenet slave module for series 90 30 and pacsystems. A processor or controller is selected on memory, scan time and platform compatibility before anything else. devicenet slave module for series 90 30 and pacsystems sets how much programme fits, how fast the logic executes and which I/O and networks the unit can host — the three things that decide whether an existing application migrates without a rewrite. Confirming 0 to 60 degrees Celsius (32 to 140 degrees Fahrenheit) against the installed controller family is the check that prevents a processor that boots but cannot run the existing project.
| Feature | Specification |
|---|---|
| Manufacturer | GE Fanuc / GE Intelligent Platforms |
| Brand | GE |
| Part Number | IC693DNS201 |
| Series | Series 90-30 |
| Part Number | IC693DNS201 |
| Operation Mode | Slave |
| Compatibility | Series 90-30, PACSystems RX3i |
| Supported Network | DeviceNet |
| Supported Messaging Connections | 2 x DeviceNet I/O |
| Maximum Input/Output Data Transfer | 255 bytes |
| Serial Port | RS-232 |
| Mounting | Main rack, any slot (except slots 0 and 1) |
| Backplane Current Consumption | 450 milliAmps at 5 Volts DC (typical) |
| Operating Temperature | 0 to 60 degrees Celsius (32 to 140 degrees Fahrenheit) |
| Storage Temperature | -40 to 85 degrees Celsius (-40 to 185 degrees Fahrenheit) |
This part belongs to a discontinued platform (GE Series 90-30), superseded by PACSystems RX3i (IC695 series). We stock remaining new and refurbished units.
Related Configurations
Other published configurations in the same family — confirm the distinguishing specification against your installation:
| Related Part Number | Configuration Difference |
|---|---|
| ge-ic693dnm200-devicenet-master-module-for-series-90-30 | confirm the configuration against your installation |
Availability & Condition at AutoDCSTech
| Part Number | IC693DNS201 |
|---|---|
| Availability | In Stock |
| Condition | New |
| Warranty | One Year |
| Origin | US |
