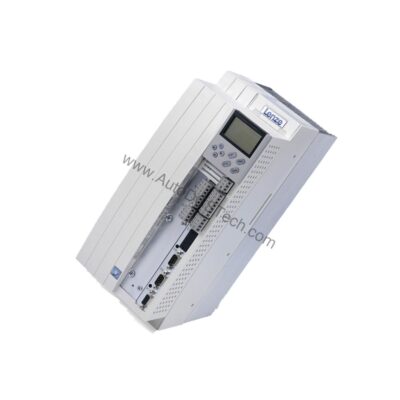

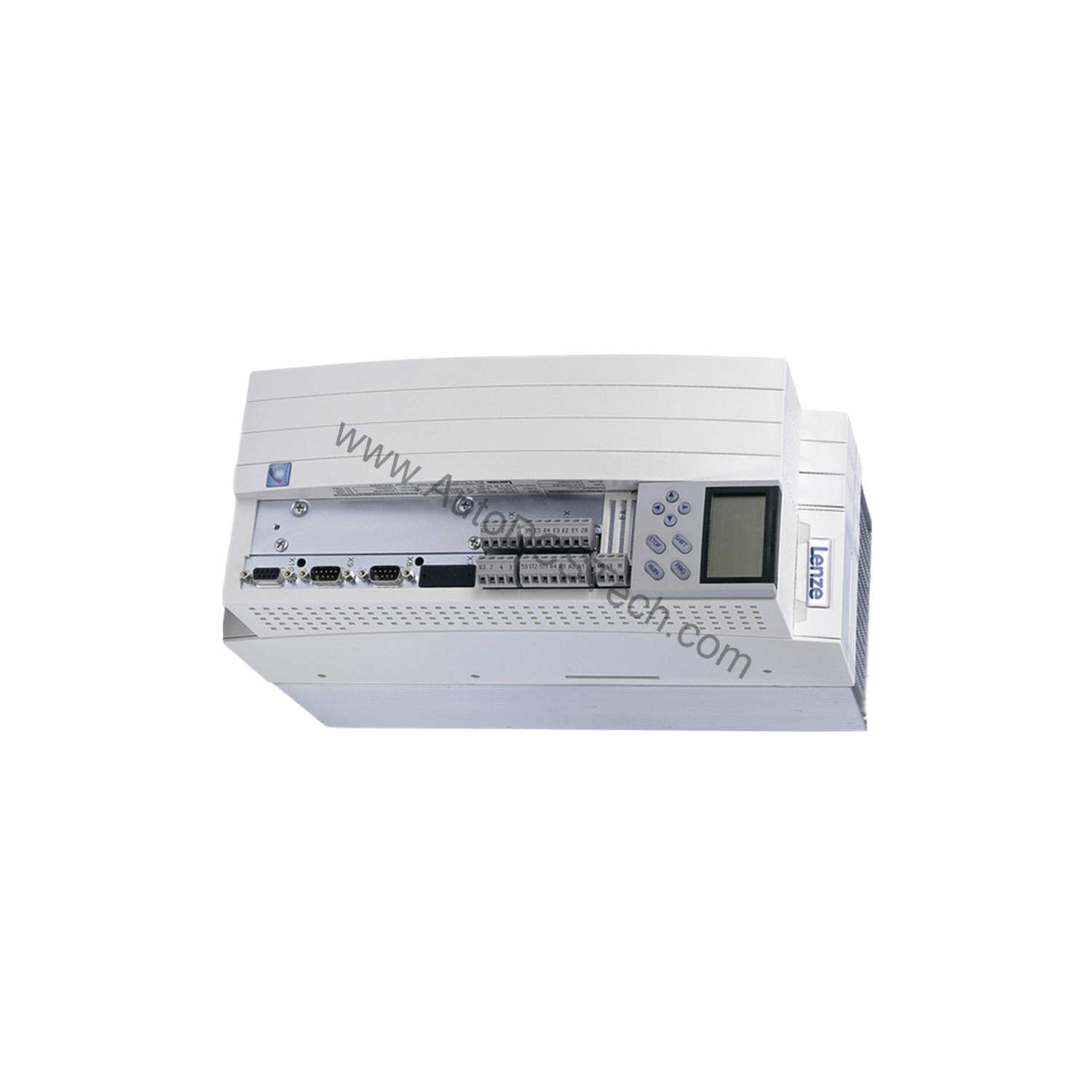

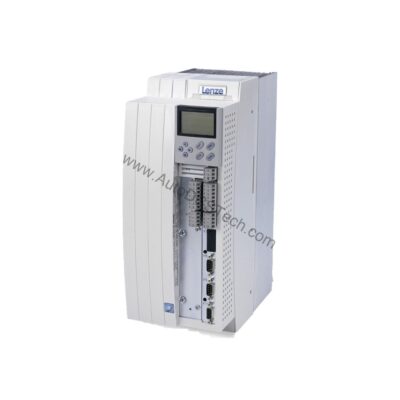

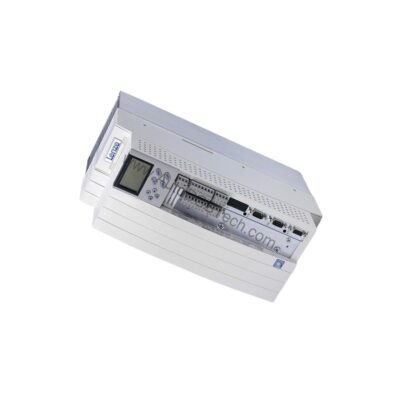

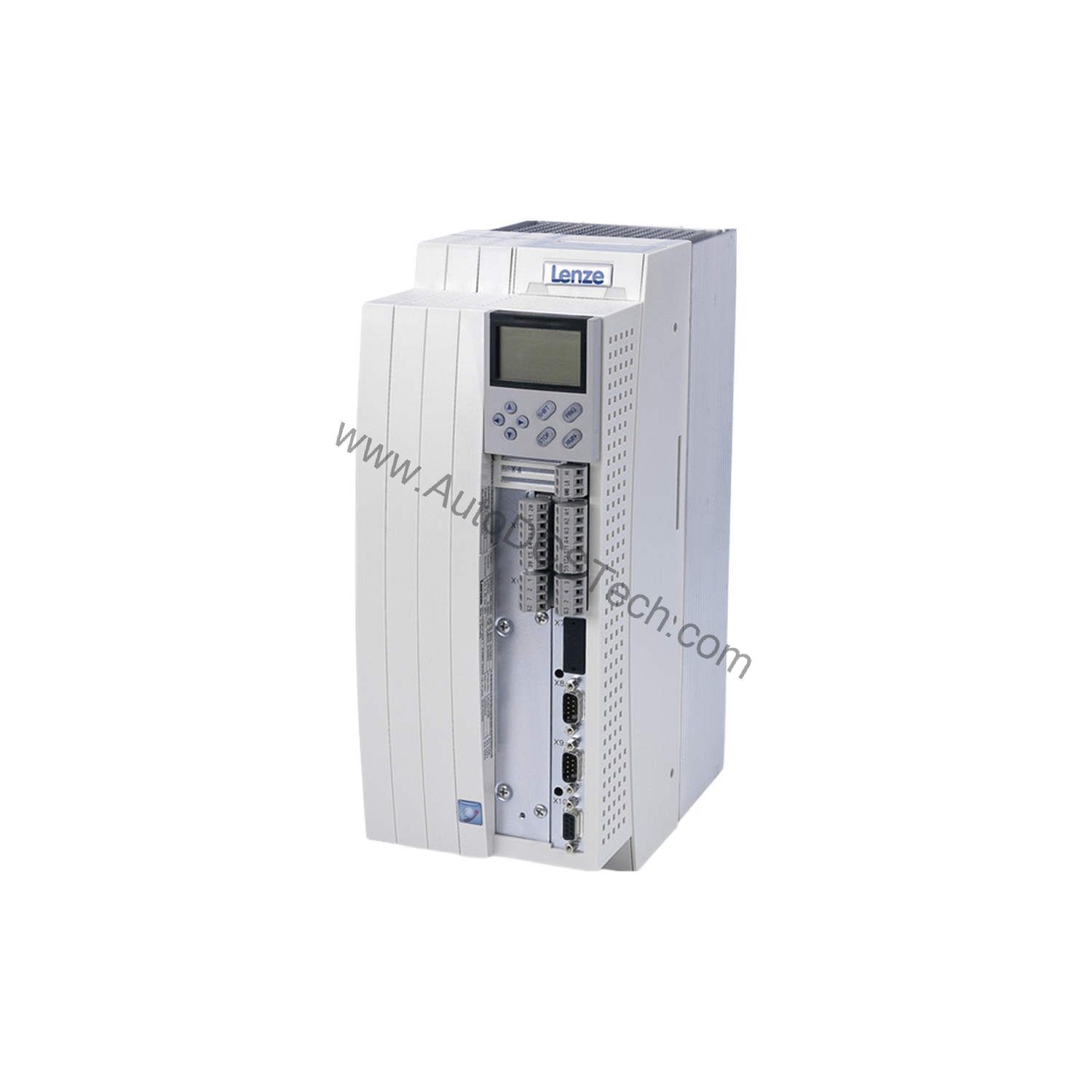

Lenze EVF9336-EVV060 Frequency Inverter 200 HP 340-456V AC

Technical Specifications Breakdown

Key parameters for the EVF9336-EVV060 are listed below for quick reference:

Robust Motor Control for Demanding Industrial Applications

Industrial motor control demands precision, reliability, and efficiency. The Lenze EVF9336-EVV060 frequency inverter delivers on all three fronts. It provides a cost-effective solution for operations seeking to optimize energy consumption and reduce downtime. By precisely controlling motor speed and torque, this inverter can cut energy consumption by nearly 50% in variable-torque applications such as fans and pumps.

Industry Applications and Cost Benefits

The EVF9336-EVV060 is built for heavy-duty applications. In a typical manufacturing plant, replacing a fixed-speed drive with this inverter can significantly lower energy bills. For example, a food processing facility running a 200 HP conveyor can save thousands of dollars annually by matching motor speed to actual load. The wide supply voltage range (340-456V AC) ensures compatibility with global power grids, reducing the need for additional transformers. This flexibility translates into lower installation costs and faster deployment.

Installation and Setup Guidance

Proper installation is crucial for maximizing the lifespan of the EVF9336-EVV060. Mount the unit on the back panel of a control cabinet using the provided mounting points. Ensure adequate clearance around the unit for airflow, as the operating temperature range is 0 °C to +50 °C. Verify that the incoming supply voltage matches the 340-456V AC requirement and that the supply frequency is within 45-65 Hz. Use appropriately rated cables for the 238A mains current to prevent overheating. Always follow local electrical codes and use proper safety lockout/tagout procedures during installation.

Maintenance and Reliability

The EVF9336-EVV060 is designed for long-term reliability. However, periodic inspections are recommended to ensure optimal performance. Check all power connections for tightness and signs of corrosion every six months. Clean the enclosure and cooling fans to prevent dust buildup, which can impede heat dissipation. Monitor the operating temperature to stay within the 0 °C to +50 °C range. If the inverter is installed in a harsh environment, consider additional filtration or cabinet cooling. Regular maintenance not only extends the life of the unit but also prevents costly unplanned downtime.

Compatibility and Integration

The EVF9336-EVV060 is a standard design frequency inverter, making it easy to integrate into existing motor control systems. It is compatible with standard three-phase induction motors. The IP20 rating means it is suitable for installation in a clean, dry control cabinet. For applications requiring higher protection, ensure the cabinet provides adequate sealing. The inverter can be controlled via external switches or PLC signals, offering flexibility in automation setups. Its straightforward design simplifies troubleshooting and reduces training time for maintenance personnel.

Selection Guide and Purchasing Advice

When selecting a frequency inverter, consider your motor's power rating, supply voltage, and environmental conditions. The EVF9336-EVV060 is a solid choice for 200 HP motors operating on 340-456V AC supplies. Before ordering, verify current lifecycle status and availability with AutoDCSTech. Our team can help you confirm compatibility and provide competitive pricing. Contact us today to discuss your requirements and get a quote.
