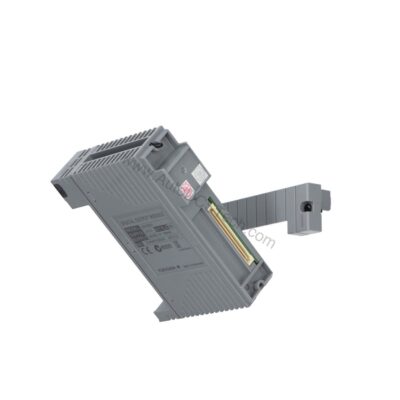

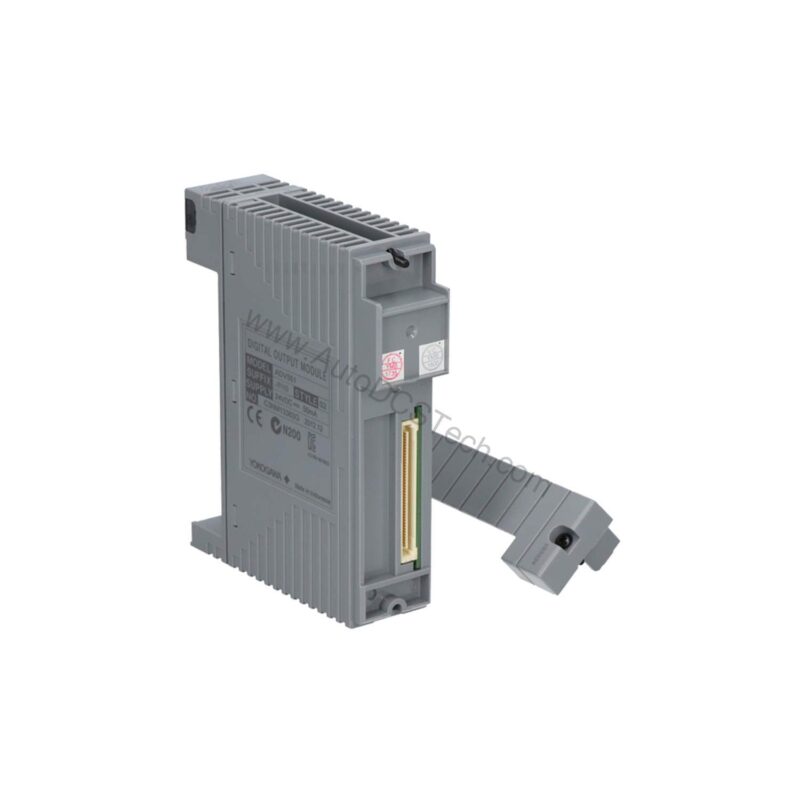

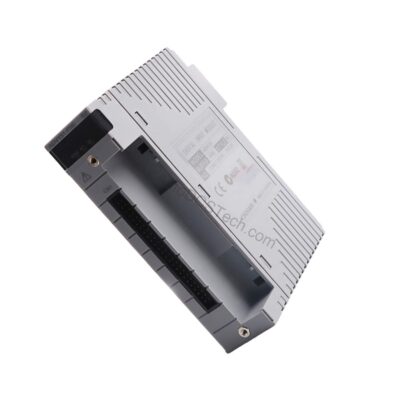

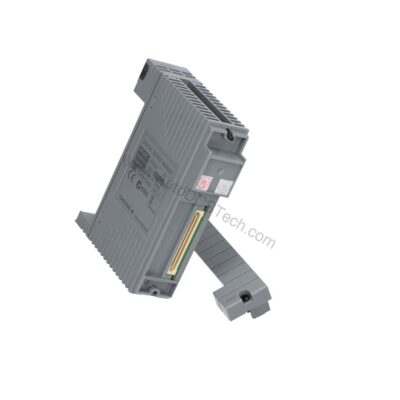

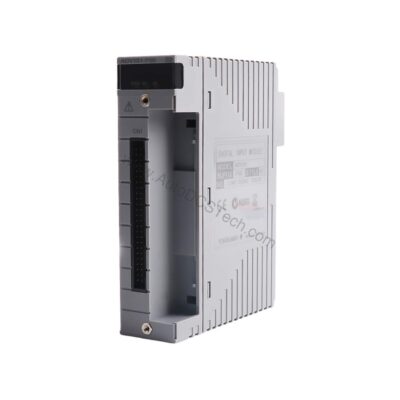

ADV551-P00: 32 Channel 24 V DC Digital Output Module
The ADV551-P00 is the 32 Channel 24 V DC Digital Output Module covered on this page. The attribute that decides whether it fits the existing installation without modification is 24 V DC.
What separates this variant from its siblings is 32 channel 24 v dc digital output module. On a rack I/O module the configuration that matters is the one that decides whether the unit drops into the existing slot and speaks the existing signal. 32 channel 24 v dc digital output module sets channel count, voltage or current class and isolation behaviour — the three things that decide compatibility with the backplane, the field wiring and the rest of the I/O. Matching 24 V DC against the rack rather than a generic datasheet avoids a module that installs but does not interface.
| Feature | Specification |
|---|---|
| Manufacturer | Yokogawa |
| Brand | Yokogawa |
| Part Number | ADV551-P00 |
| Number of output channels | 32 |
| Rated applied voltage | 24 V DC |
| External power supply rating | 24 V DC, 50 mA |
| External power supply voltage range | 20.4 to 26.4 V DC |
| Output ON voltage maximum value | 2 V DC |
| Output format | Current sink |
| Maximum load current | 100 mA/channel at 26.4 V |
| Withstanding voltage (between commons) | 500 V AC for 1 minute |
Availability & Condition at AutoDCSTech
| Part Number | ADV551-P00 |
|---|---|
| Availability | In Stock |
| Condition | New |
| Warranty | One Year |
| Origin | Japan |
