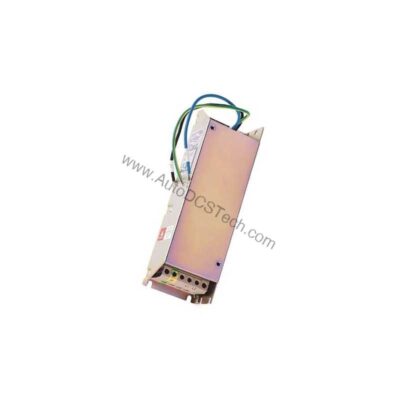

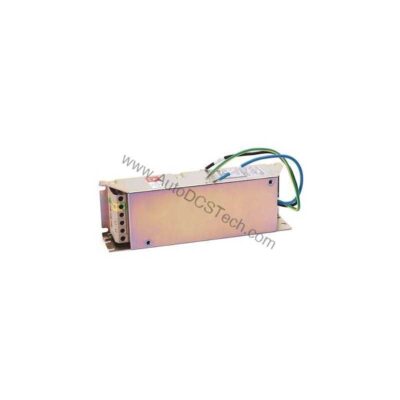

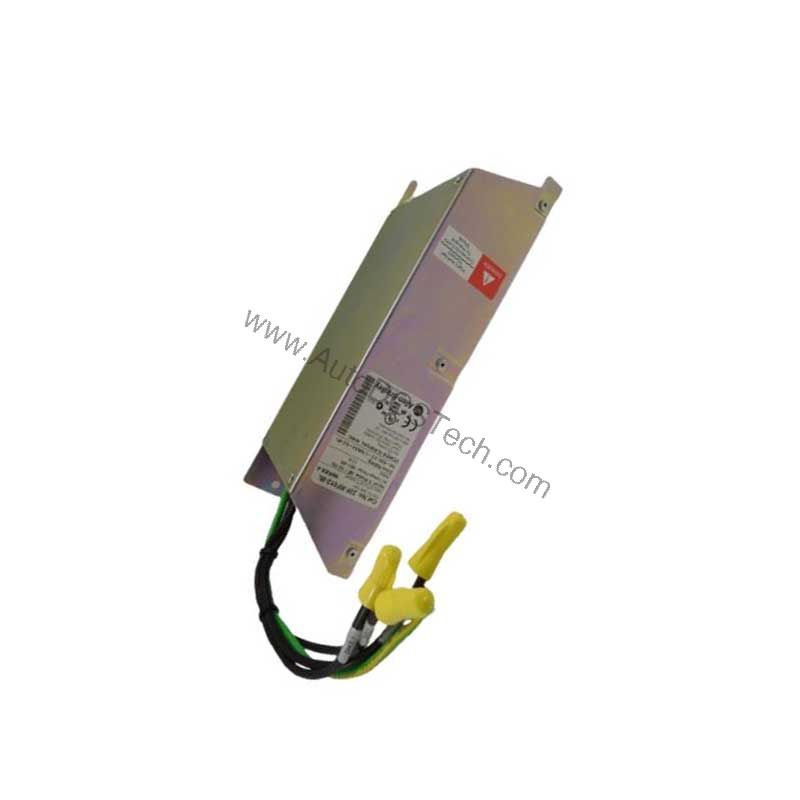

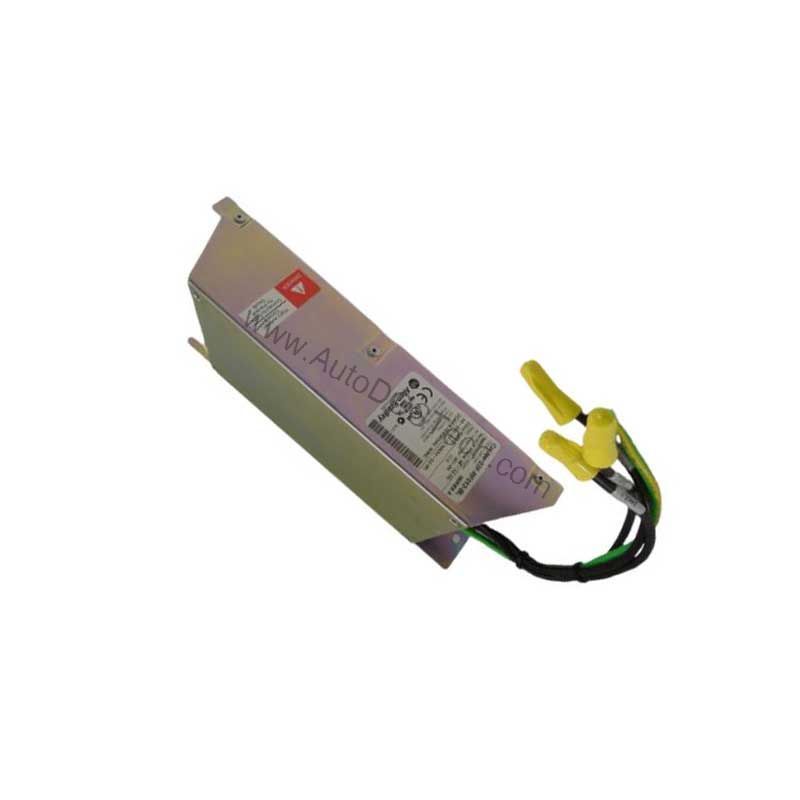

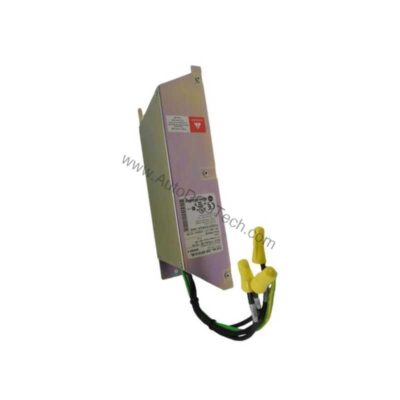

Allen-Bradley 22F-RF012-BL EMC Line Filter for PowerFlex 4M

Technical Specifications Breakdown

Key parameters for the 22F-RF012-BL are listed below for quick reference:

Industry Applications and Benefits

Consider these scenarios:

• Long Motor Cables: When the motor is installed more than a few meters from the drive, cable capacitance increases and can cause higher radiated emissions. The 22F-RF012-BL is designed for long cable lengths, mitigating these effects and preventing nuisance trips.
• Sensitive Production Lines: In facilities with PLCs, sensors, or communication networks, VFD noise can cause data errors or equipment malfunctions. Installing this filter helps maintain signal integrity and reduces downtime.
• Regulatory Compliance: Many industries require CE or other EMC compliance. Using a properly rated line filter is a proactive step toward meeting these standards and avoiding costly rework.

Installation & Setup Guidance

Proper installation is crucial for optimal filter performance. Follow these engineer-level guidelines:

1. Mounting: The B Frame filter has compact dimensions (9.02 x 3.98 x 1.97 in.) and can be mounted close to the drive. Ensure adequate clearance for airflow and wiring.
2. Wiring: Use shielded cables for the motor leads and keep the filter wiring separate from control wiring. Connect the ground terminal to the panel ground bus using a low-impedance connection.
3. Voltage Check: Verify that your supply voltage matches the filter rating of 380-480V AC, 3-phase. Do not exceed this range.
4. Current Rating: The filter is rated for 12A continuous. Confirm that the drive's output current does not exceed this value. For drives rated 2.20 to 3.70 kW, this filter is a match.
5. Cable Length: This filter is specifically for long cable lengths. If your installation uses short cables (under 3 meters), a standard filter may suffice, but this one will still work correctly.

Maintenance & Reliability

EMC filters are passive components with no moving parts, but they still require periodic inspection:

• Visual Inspection: Check for signs of overheating, discoloration, or loose connections every 6-12 months.
• Cleanliness: Keep the filter free of dust and debris. Use a dry, low-pressure air stream to clean the enclosure.
• Environmental Conditions: Ensure the filter is not exposed to excessive moisture, corrosive gases, or extreme temperatures beyond the drive's specifications.

Why Your PowerFlex 4M Drive Needs the 22F-RF012-BL EMC Line Filter

Variable frequency drives (VFDs) generate electrical noise that can disrupt sensitive equipment and fail EMC compliance tests. The Allen-Bradley 22F-RF012-BL EMC line filter is engineered to suppress this electromagnetic interference, ensuring your PowerFlex 4M drive operates reliably in industrial environments. This filter is specifically designed for long cable lengths, making it an essential component for installations where the motor is located far from the drive.

Compatibility & Integration

The 22F-RF012-BL is designed exclusively for Allen-Bradley PowerFlex 4M adjustable frequency AC drives. It is not an universal filter. Always confirm your drive model and frame size before purchasing. This filter is a line filter, meaning it is installed on the input side of the drive, between the power source and the drive's R, S, T terminals.

Selection Guide & Purchasing Advice

When selecting an EMC filter, match the voltage, current, and application to your drive. The 22F-RF012-BL is a proven solution for PowerFlex 4M drives in the 2.20-3.70 kW range. At AutoDCSTech, we stock this filter and can provide expert guidance on compatibility and availability. Contact our team to verify your drive's specifications and to check current lifecycle status before ordering. We offer competitive pricing and fast shipping to keep your operations running smoothly.

Troubleshooting & Common Issues

If you experience issues after installing the filter, consider these common scenarios:

• Drive Overvoltage Fault: If the filter is not grounded properly, or if the supply voltage is too high, the DC bus may see excessive voltage. Verify the supply is within 380-480V AC.
• Filter Overheating: This can occur if the current exceeds 12A or if airflow is blocked. Check the drive's output current and the filter's mounting location.
• EMC Problems Persist: If conducted emissions remain high, check that the filter is wired on the input side, not the output. Also, ensure the drive's internal EMC jumper settings are correct.

For any persistent issues, consult the PowerFlex 4M user manual or contact AutoDCSTech for technical support.
