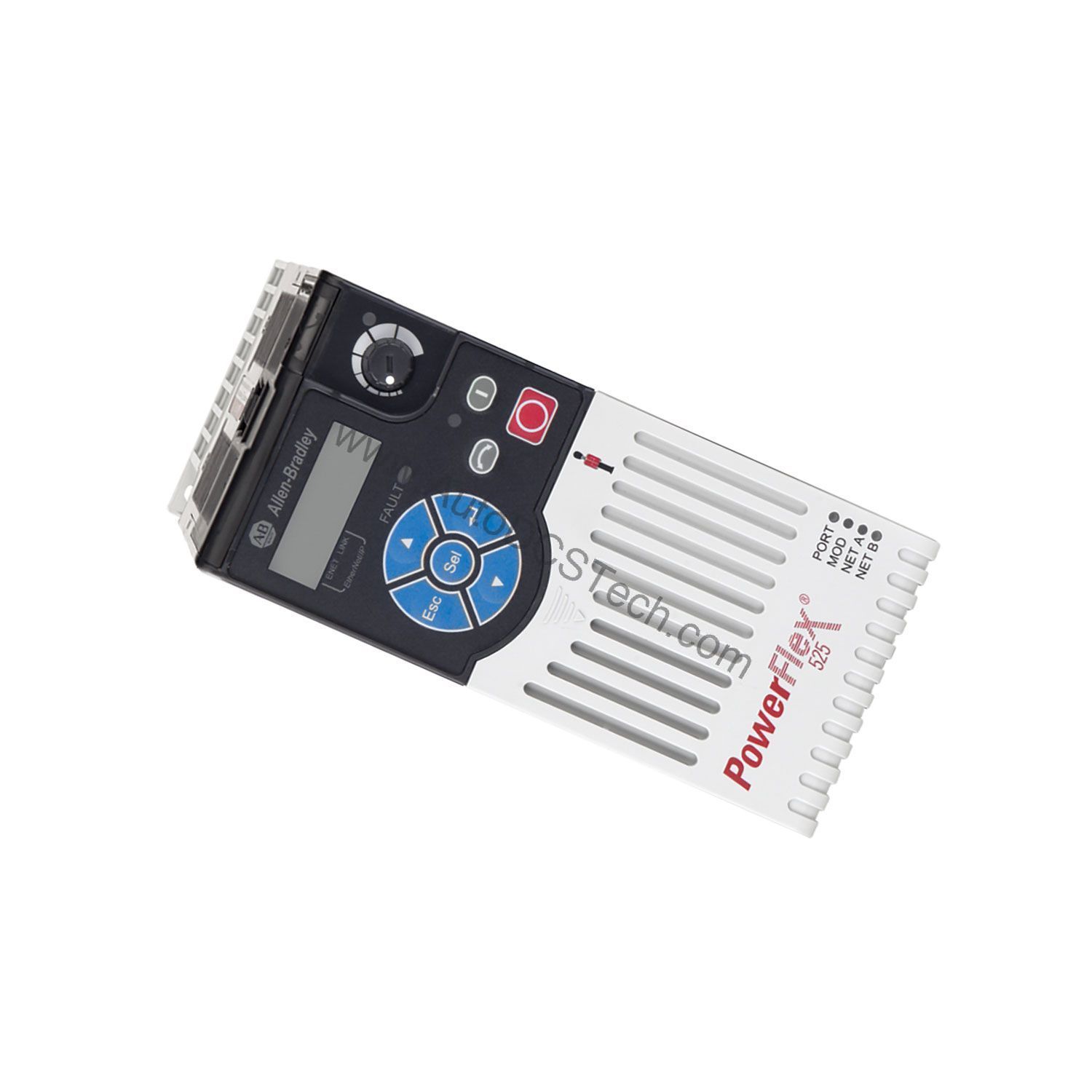

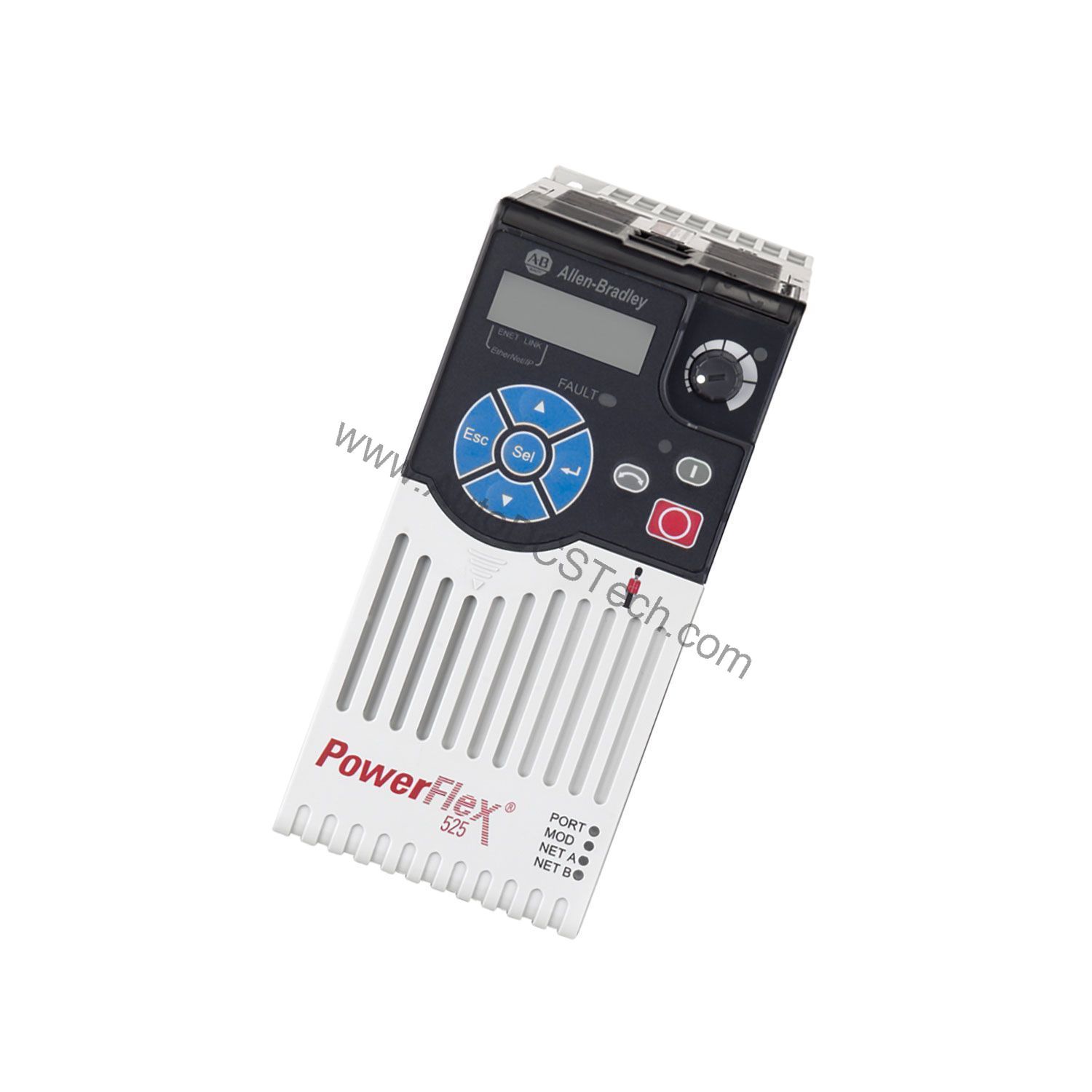

Allen-Bradley PowerFlex 525 Drive 25B-A2P5N114 | 0.5 HP AC Drive

Technical Specifications Breakdown

Key parameters for the 25B-A2P5N114 are listed below for quick reference:

For instance, in conveyor systems, the 25B-A2P5N114 provides smooth acceleration and deceleration, reducing mechanical stress and improving product handling. In packaging machinery, its precise speed control ensures consistent sealing and filling operations. Additionally, in HVAC fan and pump applications, the drive's sensorless vector control optimizes energy consumption, directly lowering operational costs. The built-in EMI filter also helps meet EN61803 standards, making it suitable for installations with strict electromagnetic compatibility requirements.

Installation & Setup Guidance

Proper installation is critical for optimal performance. The drive supports DIN rail mounting, which simplifies panel integration. When installing, maintain the minimum clearances specified in the manual to ensure adequate airflow and prevent overheating. The removable MOV to ground is a key feature for ungrounded systems, providing protection and hassle-free operation. Before powering up, double-check that the input voltage matches the nameplate rating of one phase, 240VAC. Follow the manufacturer's installation manual for wiring and configuration steps to ensure safe and reliable operation.

Maintenance & Reliability

Routine maintenance is straightforward. Periodically inspect the enclosure and connections for dust, moisture, or corrosion, especially in harsh environments. The IP20 NEMA / Open Type enclosure offers basic protection, so keep the drive in a clean, dry cabinet. Check that cooling fans (if any) are unobstructed. Because the drive includes a built-in EMI filter, ensure that the filter is not damaged, as this could affect compliance and performance. Regular visual inspections can prevent unexpected failures and extend the life of the drive.

Why Your Machinery Needs a Reliable Adjustable Frequency Drive

Is your production line plagued by motor control issues that lead to downtime and inconsistent output? The Allen-Bradley 25B-A2P5N114 adjustable frequency drive from the PowerFlex 525 series offers a compact, intelligent solution for precise motor control in demanding industrial environments. This drive is engineered to deliver reliable performance for applications requiring up to 0.5 Horsepower, ensuring your equipment runs smoothly and efficiently.

Compatibility & Integration

The 25B-A2P5N114 is designed for flexible integration. It features a built-in communication port supporting the Embedded Ethernet protocol, allowing seamless connection to modern industrial networks. Additionally, integral RS485/DSI communications enable multi-drop configurations, making it easy to connect multiple drives to a single controller. This drive also supports multiple control modes, including closed-loop velocity vector control, permanent magnet motor control, sensorless vector control, and volts per hertz control. With two analog inputs, seven digital inputs (six programmable), one analog output (10-bit resolution), two opto outputs, and two relay outputs, this drive offers extensive I/O capability for various automation needs.

Selection Guide & Purchasing Advice

When selecting a drive for your application, consider the motor's horsepower rating and input power requirements. The 25B-A2P5N114 is suited for 0.5 HP motors with single-phase input. At AutoDCSTech, we stock this exact model to ensure you get the genuine Allen-Bradley product. Our team can assist with technical questions and provide fast shipping. Contact us today to confirm availability and lifecycle status before ordering, ensuring your project stays on schedule.

Please verify current lifecycle status and availability with AutoDCSTech before ordering.
