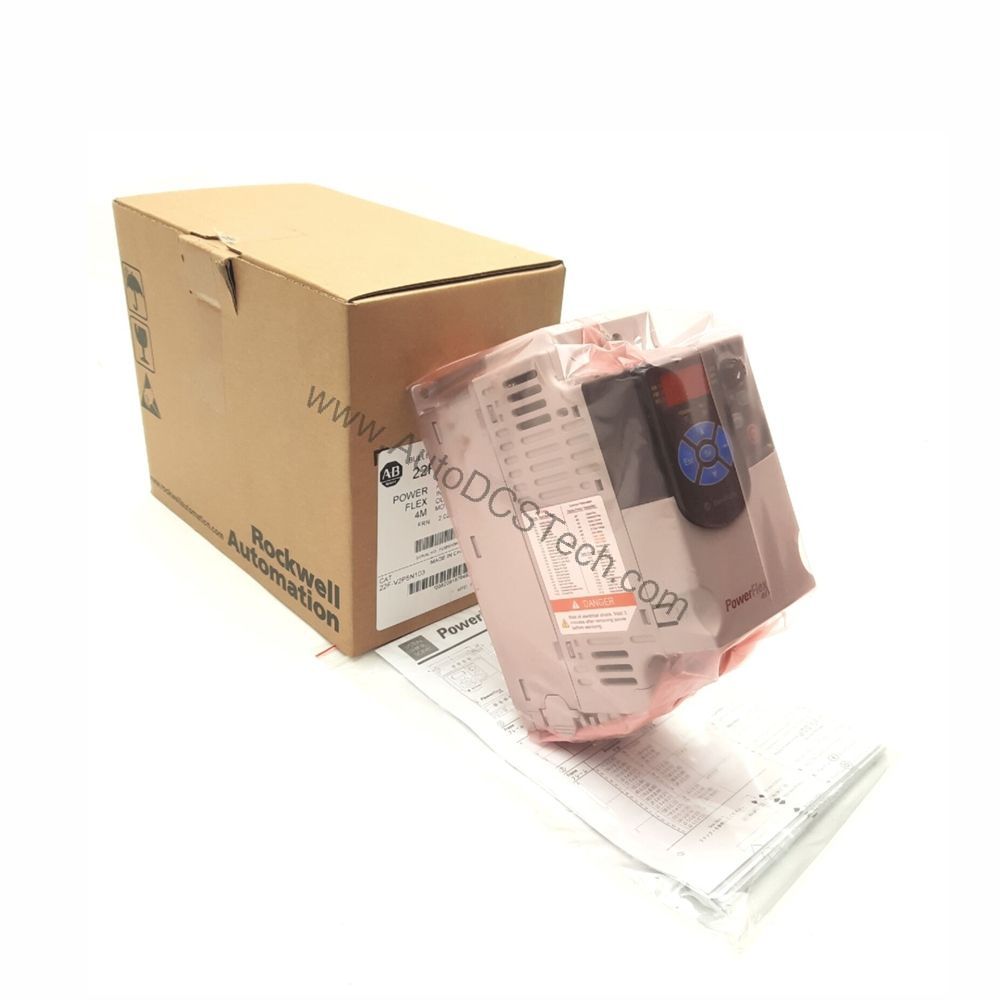

Allen-Bradley 22F-V2P5N103 PowerFlex 4M AC Drive 0.4 kW

Product Overview

The Allen-Bradley 22F-V2P5N103 is a PowerFlex 4M adjustable frequency AC drive engineered for precise speed control of three-phase AC motors. As part of the PowerFlex 4M family, this compact drive is designed for applications where space is limited and reliability is critical. With a rated output power of 0.4 kW (0.5 HP), it delivers dependable performance for small conveyors, fans, and pumps.

Technical Specifications Breakdown

Key parameters for the 22F-V2P5N103 are listed below for quick reference:

Industry Applications

Its compact frame and panel-mount design make it a preferred choice for retrofitting existing control panels. For maintenance engineers, the drive's straightforward V/Hz control simplifies commissioning and reduces downtime. The built-in RS485 port allows seamless integration with PLCs and HMIs, enabling remote monitoring and adjustments.

Installation & Setup Guidance

When installing the 22F-V2P5N103, ensure adequate clearance for airflow and maintain the IP20 enclosure rating by mounting it inside a suitable cabinet. Verify that the input supply matches the 100-120VAC, 1-phase rating. Use proper motor overload protection and follow local electrical codes. The drive supports panel mounting; secure it firmly to prevent vibration. For initial setup, use the integral Human Interface Module (HIM) to configure parameters. Always disconnect power before making connections.

Maintenance & Reliability

Regular inspection of the drive is essential for long-term reliability. Check for dust accumulation on the heatsink and ensure cooling fans (if any) operate freely. Periodically verify that all power terminals are torqued to specifications and that the enclosure remains clean and dry. The drive's pre-charge relay controls inrush current, reducing stress on internal components. With proper maintenance, this drive can provide years of trouble-free operation.

Compatibility & Integration

The 22F-V2P5N103 comes with a built-in RS485 communication port, allowing connection to a daisy-chain network of up to 31 drives. For advanced networking, optional protocols such as BACnet, LonWorks, ProfiBus, Ethernet, DeviceNet, and ControlNet are supported. This flexibility enables integration into various industrial control architectures, from simple standalone setups to complex automated lines.

Selection Guide & Purchasing Advice

When selecting a replacement or new drive, verify that the input voltage, output power, and enclosure rating match your application. The 22F-V2P5N103 is a robust choice for fractional horsepower applications. At AutoDCSTech, we stock genuine Allen-Bradley parts and provide expert support to ensure you choose the right drive. Contact us for availability and lifecycle status before ordering.

Troubleshooting & Common Issues

If the drive fails to start, check the input power and control wiring. Verify that the start command is properly configured. For communication issues, confirm RS485 wiring and address settings. If the drive trips on overload, inspect the motor and load for mechanical issues. Always refer to the user manual for detailed fault codes. For persistent problems, consult a qualified technician.
