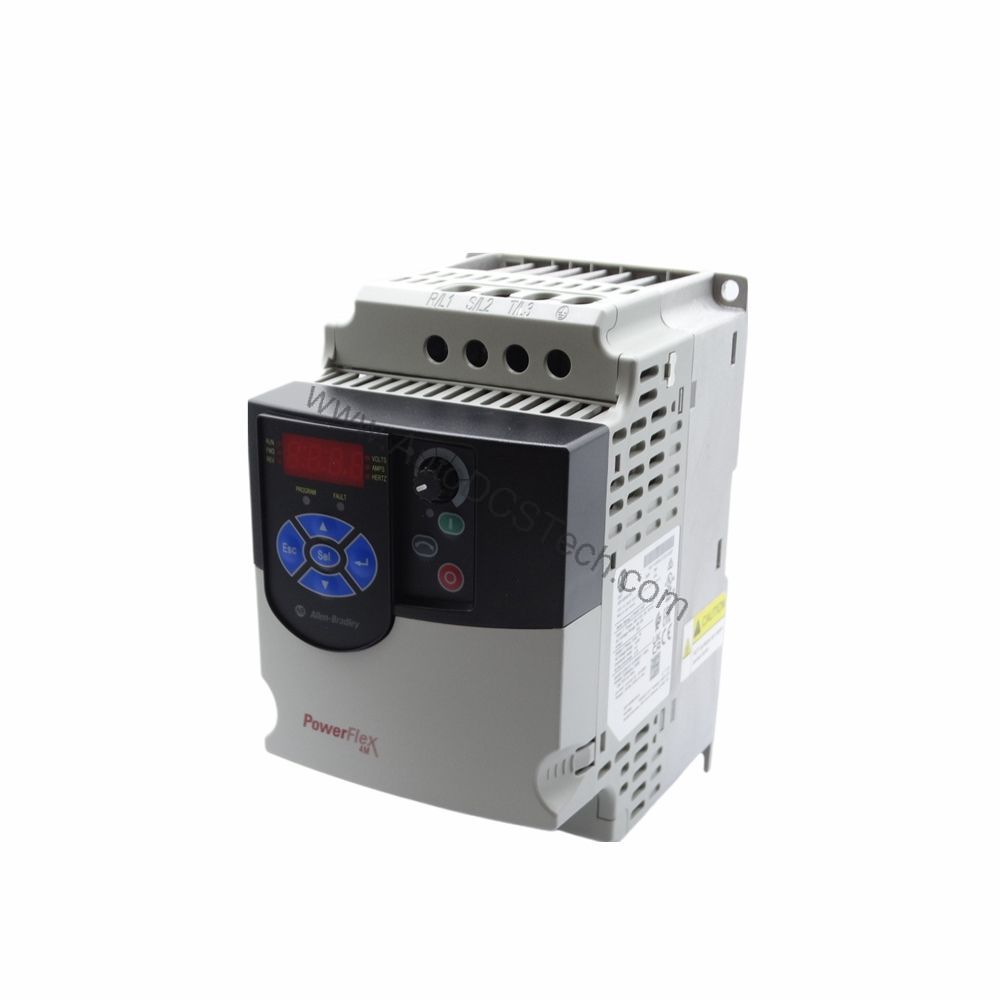

Allen-Bradley 22F-V4P5N103 PowerFlex 4M AC Drive, 0.75 kW, 4.5 A

Technical Specifications Breakdown

Key parameters for the 22F-V4P5N103 are listed below for quick reference:

Built for Real-World Applications

Consider a packaging machine that requires precise speed adjustment for different product sizes. The drive's Volts per Hertz control ensures consistent torque across the speed range, even under varying load conditions. This means smoother operation and fewer jams, directly improving throughput.

Another common use is in ventilation and exhaust fans. The drive's quiet operation, with an adjustable PWM frequency of up to 10 kHz, reduces audible noise, which is a significant benefit in occupied spaces. The built-in pre-charge feature limits inrush current, protecting the drive and the motor during startup, which extends equipment life and reduces maintenance calls.

Installation and Setup Guidance

When installing the 22F-V4P5N103, proper panel mounting is essential. The IP20 open-type enclosure is designed for indoor use within a larger enclosure. Ensure adequate clearance around the drive for airflow and heat dissipation. The feed-through wiring design simplifies wiring and reduces installation time, especially during retrofits. The DIP switch on the drive allows you to set the 24V DC control logic for either Sink or Source mode, matching your existing control system without extra components.

For speed control, you can use an electrically isolated 0 to 10V input or a 4 to 20 mA input, providing flexibility for various sensors and PLC analog outputs. Always follow the wiring diagrams in the user manual (22F-UM001D-EN-E) to ensure correct connections and avoid damage.

Maintenance and Reliability

Reliability is a hallmark of the PowerFlex 4M series. The 22F-V4P5N103 is designed for long service life, but regular inspection is still recommended. Periodically check for dust accumulation on the heatsink and ensure the cooling fan (if present) operates freely. The removable MOV (Metal Oxide Varistor) provides surge protection, and its removability allows operation on ungrounded distribution systems, adding flexibility in different plant environments.

Monitor the drive's status via the integral keypad and LED indicators. These provide real-time feedback on drive health and can help you quickly identify any abnormal conditions. Keeping the drive clean and within its specified environmental limits will maximize its lifespan.

The Compact Power Solution for Tight Spaces

Imagine a production line where every inch of panel space matters. You need variable speed control for a small conveyor or a fan, but the cabinet is already crowded. The Allen-Bradley 22F-V4P5N103 from the PowerFlex 4M series is engineered for exactly this scenario. It delivers reliable adjustable frequency control in a remarkably compact frame, making it a smart choice for original equipment manufacturers and panel builders who value efficiency and simplicity.

This drive is part of the PowerFlex 4M family, known for being one of the most cost-effective and space-saving options in the Allen-Bradley lineup. It is designed to handle single-phase input power and provide three-phase output, allowing you to run standard three-phase motors from a common single-phase supply. This capability is especially valuable in light industrial applications, material handling, and HVAC equipment where three-phase power may not be readily available.

Compatibility and Integration

Its single-phase input simplifies power wiring, while the three-phase output allows you to use standard three-phase motors. The drive supports both sink and source control logic, making it compatible with most PLCs and sensors. The optional electrically isolated analog inputs (0-10V or 4-20mA) provide clean speed reference signals, reducing electrical noise issues.

Selection Guide and Purchasing Advice

When selecting a drive, consider the motor's full-load current and the required overload capacity. The 22F-V4P5N103 is rated for 4.5 A output, which suits motors up to 1 HP (0.75 kW). Verify that the input voltage matches your facility's supply (120 VAC single-phase). If you need a drive with an EMC filter, note that this model comes without a CE-compliant filter, so plan accordingly for electromagnetic compatibility.

At AutoDCSTech, we stock the Allen-Bradley 22F-V4P5N103 and many other industrial automation parts. Our team can help you verify compatibility and availability.

Troubleshooting and Common Issues

The 22F-V4P5N103 includes two fault types that stop drive operation: Auto Reset/Run faults, which prompt a restart, and non-resettable faults, which may require motor or drive repair. The user manual provides corrective actions for common fault symptoms. Always consult the manual before attempting any troubleshooting. If the drive displays an overcurrent fault, check the motor wiring and ensure the motor is not mechanically jammed. For overvoltage faults, verify that the input voltage is within the specified range. Regular preventive maintenance can reduce the frequency of these issues.
