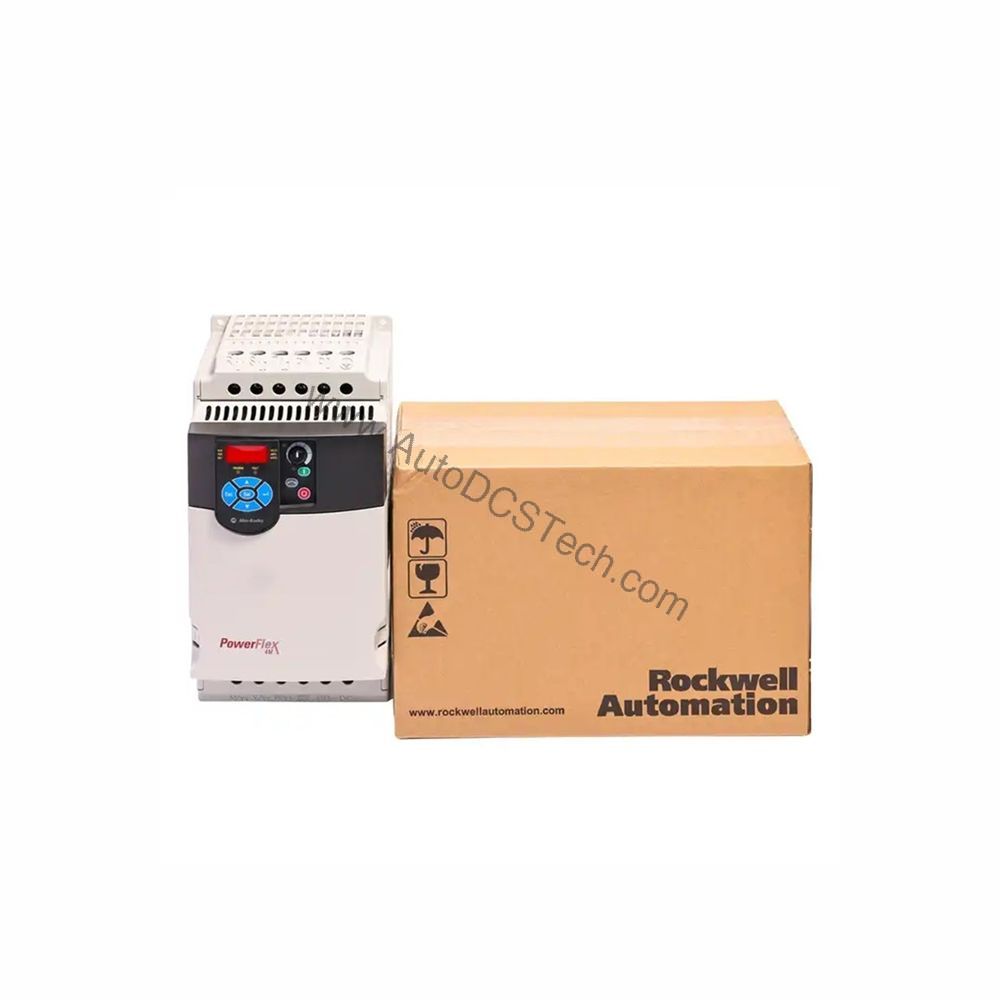

Allen-Bradley 22F-V6P0N103 PowerFlex 4M AC Drive 1.5 HP

Technical Specifications Breakdown

Key parameters for the 22F-V6P0N103 are listed below for quick reference:

Real-World Applications

This drive is well-suited for fans, conveyors, and simple material handling equipment. Its 1.5 HP rating and 6 A output handle typical fractional horsepower motors. The 120 VAC single-phase input makes it easy to integrate into existing control panels. Because it is compact, you can mount it inside smaller enclosures. This saves panel space and reduces overall installation cost.

Installation and Setup

The B frame and IP20 open type enclosure simplify mounting. You can install the drive on a standard DIN rail, which speeds up panel assembly. A panel mounting option is also available for flexibility. For ambient temperatures up to 40 °C, you can use zero stacking to save space. At 50 °C, allow minimal clearance between drives. The integral keypad provides out-of-the-box operation using control keys and a local potentiometer. Programming is fast because the most common parameters are in the Basic Program Group. The four-digit display and ten LED indicators make monitoring easy.

Maintenance and Reliability

The drive features a Volts per Hertz control performance for speed regulation. A relay pre-charge limits inrush current, protecting the drive and motor. Adjustable PWM frequency allows quiet motor operation. Periodic inspection of the enclosure and wiring is recommended. Keep the IP20 enclosure free of dust and moisture. Check that all terminals remain tight and clean.

Compact, Cost-Efficient Speed Control

Industrial machines often need simple, reliable speed control without the complexity of high-end drives. The Allen-Bradley 22F-V6P0N103 from the PowerFlex 4M series delivers exactly that. It is one of the most compact and cost-efficient members of the PowerFlex family. This adjustable frequency drive controls the speed and torque of variable speed motors in PLC systems. It is built for applications where space is tight and budgets matter.

Communications and Control Flexibility

The drive supports integral RS485/DSI communications. You can use it in multi-drop network configurations or program it from a PC. A DSI Wireless Interface Module (WIM) enables wireless communication. For control wiring, a DIP switch sets the input for 24 VDC sink or source. This flexibility simplifies integration with different PLC output cards.

Selection and Purchasing Advice

When selecting a replacement or new drive, verify your motor's voltage and current requirements. The 22F-V6P0N103 is a 120 VAC single-phase input drive. Confirm that your supply matches this. Also check the output current rating against your motor's full-load current. For availability and lifecycle status, contact AutoDCSTech. They can confirm stock and provide a quote. AutoDCSTech is a reliable supplier of industrial automation parts.

Troubleshooting Common Issues

If the drive does not start, check the input power and control wiring. Verify that the DIP switch settings match your PLC output type. If the motor runs erratically, review the programming parameters. Ensure the motor is compatible with the drive's output. If the display shows an error, consult the manual for the specific fault code. Always disconnect power before servicing.

Please verify current lifecycle status and availability with AutoDCSTech before ordering.
