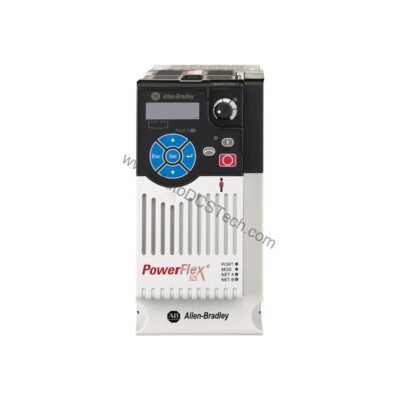

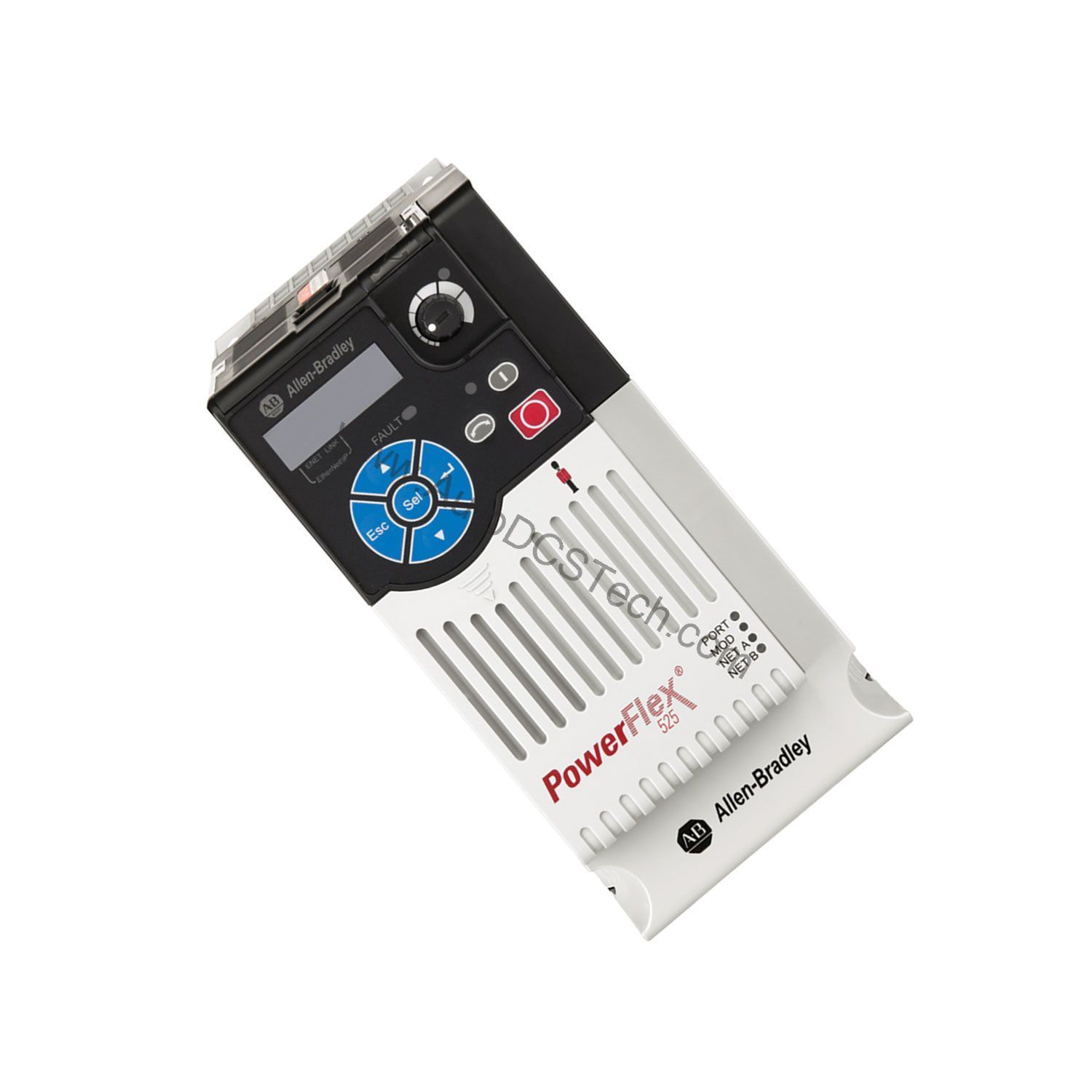

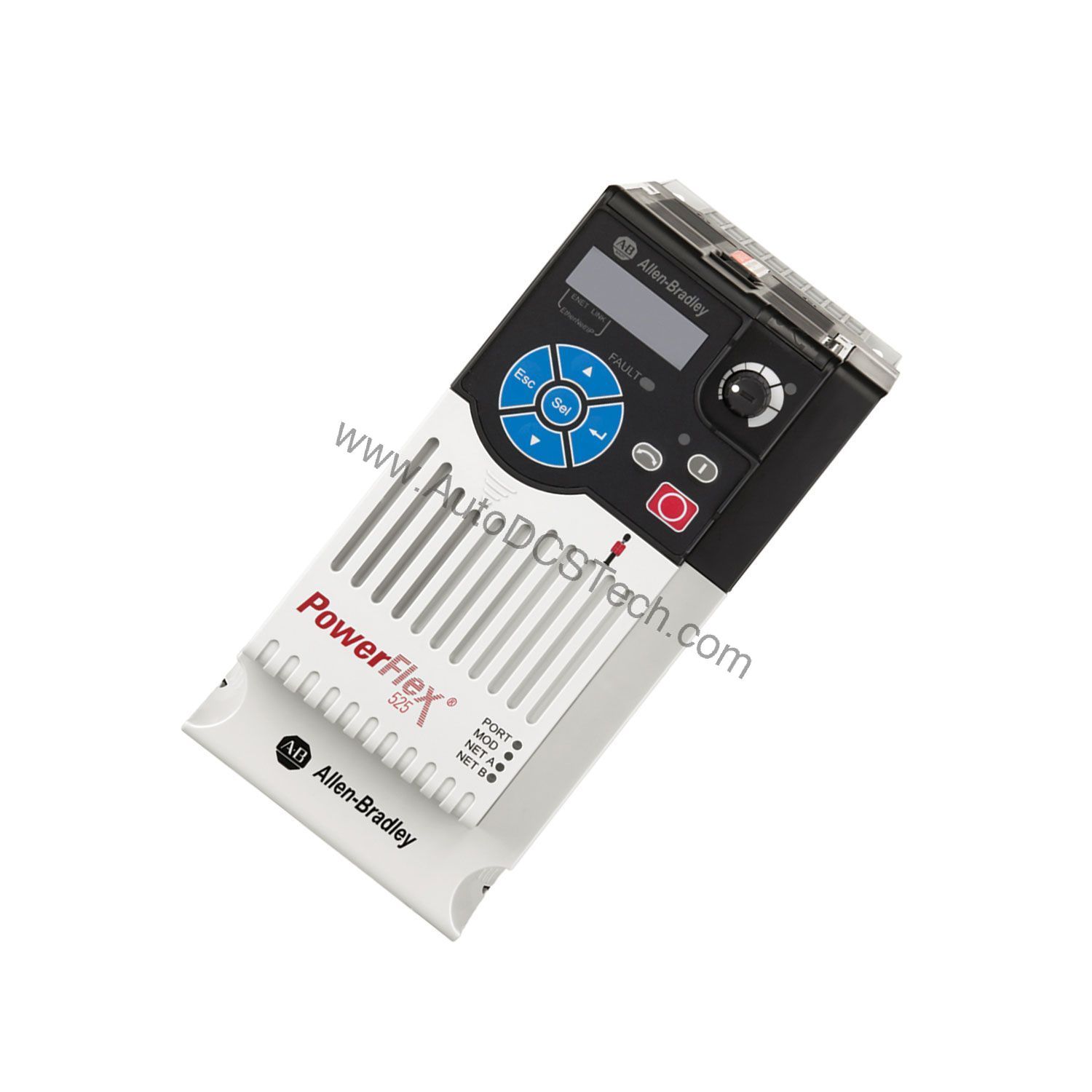

Allen-Bradley PowerFlex 525 AC Drive 25B-A8P0N104 | 2 HP, 8A

Technical Specifications Breakdown

Key parameters for the 25B-A8P0N104 are listed below for quick reference:

Industry Applications That Benefit

Conveyor Systems

In conveyor applications, the drive's ability to maintain accurate speed control ensures smooth product flow and reduces mechanical stress. The closed-loop feedback capability helps maintain consistent tension, which is critical in packaging and bottling lines.

Pump and Fan Control

For pumps and fans, the drive's variable frequency operation allows for energy savings by matching motor speed to actual demand. The built-in braking features provide controlled deceleration, reducing wear on mechanical components.

Machine Tool Spindles

The compact Frame B design allows for easy integration into existing control panels.

Installation and Setup Guidance

When installing the 25B-A8P0N104, ensure that the mounting surface is clean and provides adequate airflow for cooling. The drive uses a panel-type mounting and comes with an IP20 NEMA open-type enclosure, which means it should be installed in a suitable cabinet to protect against dust and moisture. Verify that the input voltage matches the drive's rating of 200 to 240 Volts AC single-phase. Connect the motor to the output terminals, ensuring proper phase sequence. Use the integrated keypad to configure the drive parameters according to your motor's specifications. For advanced setups, the EtherNet/IP, USB, and RS485 communication ports allow for remote monitoring and control.

Maintenance and Reliability

Regular inspection of the drive's cooling fan and air vents is recommended to prevent overheating. Keep the enclosure clean and free of debris. Periodically check all electrical connections for tightness, especially after initial installation. The drive's robust construction and air-cooled design contribute to long-term reliability in industrial environments.

Is your production line held back by a drive that can't handle dynamic loads?

In modern manufacturing, variable speed drives must deliver precise control while withstanding harsh industrial environments. The Allen-Bradley PowerFlex 525 AC drive, model 25B-A8P0N104, is engineered to meet these demands. As part of the trusted PowerFlex 525 series from Rockwell Automation, this compact drive offers reliable performance for a wide range of motor control applications.

Built for Precision and Flexibility

The 25B-A8P0N104 is a 3-phase output drive that operates with a 1-phase input voltage of 200 to 240 Volts AC. It delivers a 3-phase output voltage of 0 to 230 Volts AC, making it suitable for a variety of motor types. With a normal duty and heavy-duty output power rating of 2 Horsepower, this drive provides consistent performance even in demanding conditions.

One of the standout features of this drive is its support for point-to-point positioning modes and closed-loop feedback. This capability allows for precise speed and position control, which is essential in applications such as conveyors, packaging machinery, and material handling systems. The integrated keypad, LED display, and potentiometer provide an intuitive interface for configuration and monitoring.

Compatibility and Integration

The 25B-A8P0N104 is designed to work with a variety of Allen-Bradley motors and control systems. Its built-in EtherNet/IP, USB, and RS485 ports enable seamless integration into existing automation networks. The standard interface module simplifies connectivity, while the optional EMC filter (not included on this model) can be added if required for your application.

Selection Guide and Purchasing Advice

When selecting a variable frequency drive, consider the motor's horsepower, voltage, and current requirements. The 25B-A8P0N104 is rated for 2 HP with 8 Amps output current, making it suitable for many small to medium-sized motors. Ensure that the input voltage matches your facility's power supply. For expert advice and competitive pricing, contact AutoDCSTech. We offer genuine Allen-Bradley products and fast worldwide shipping. Please verify current lifecycle status and availability with AutoDCSTech before ordering.
