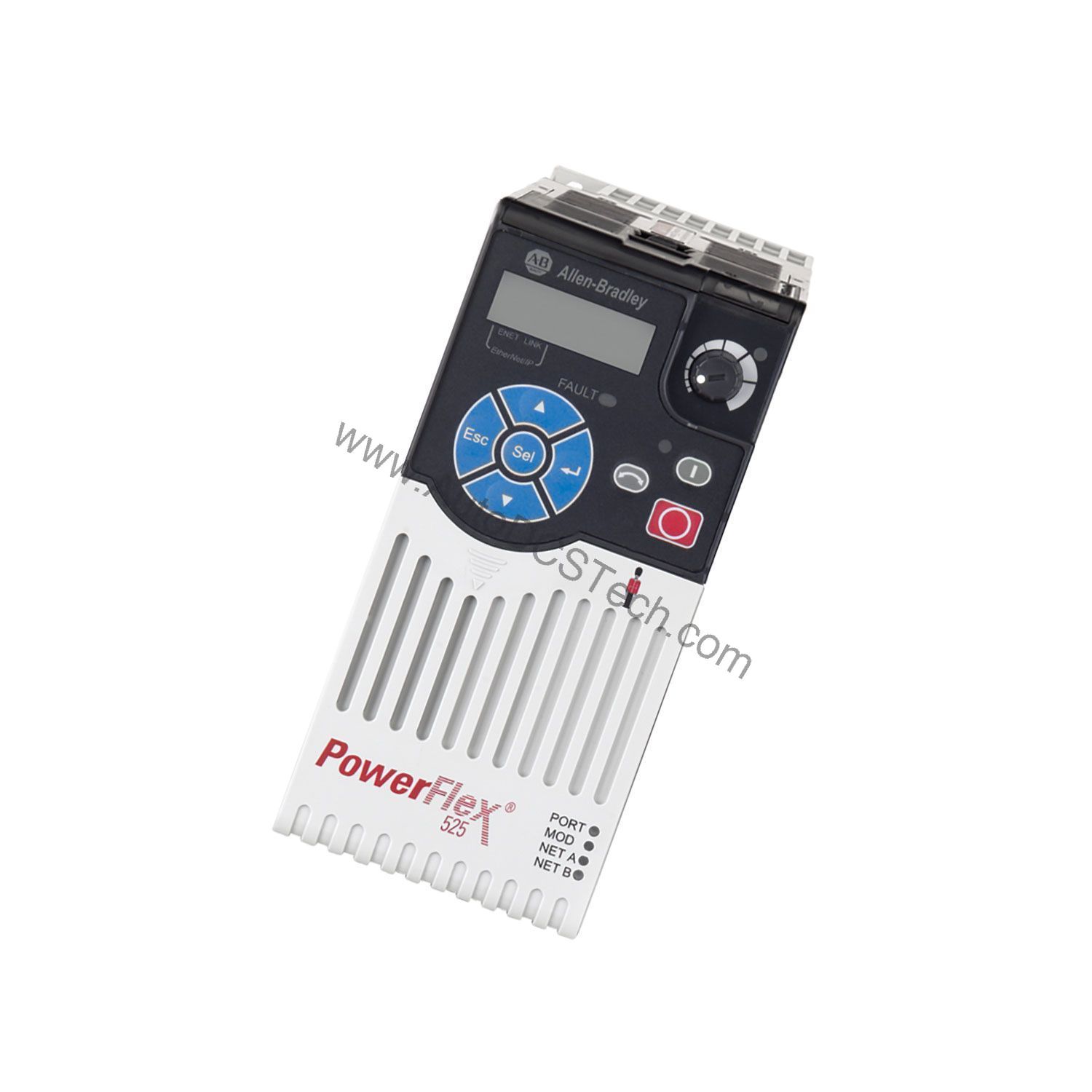

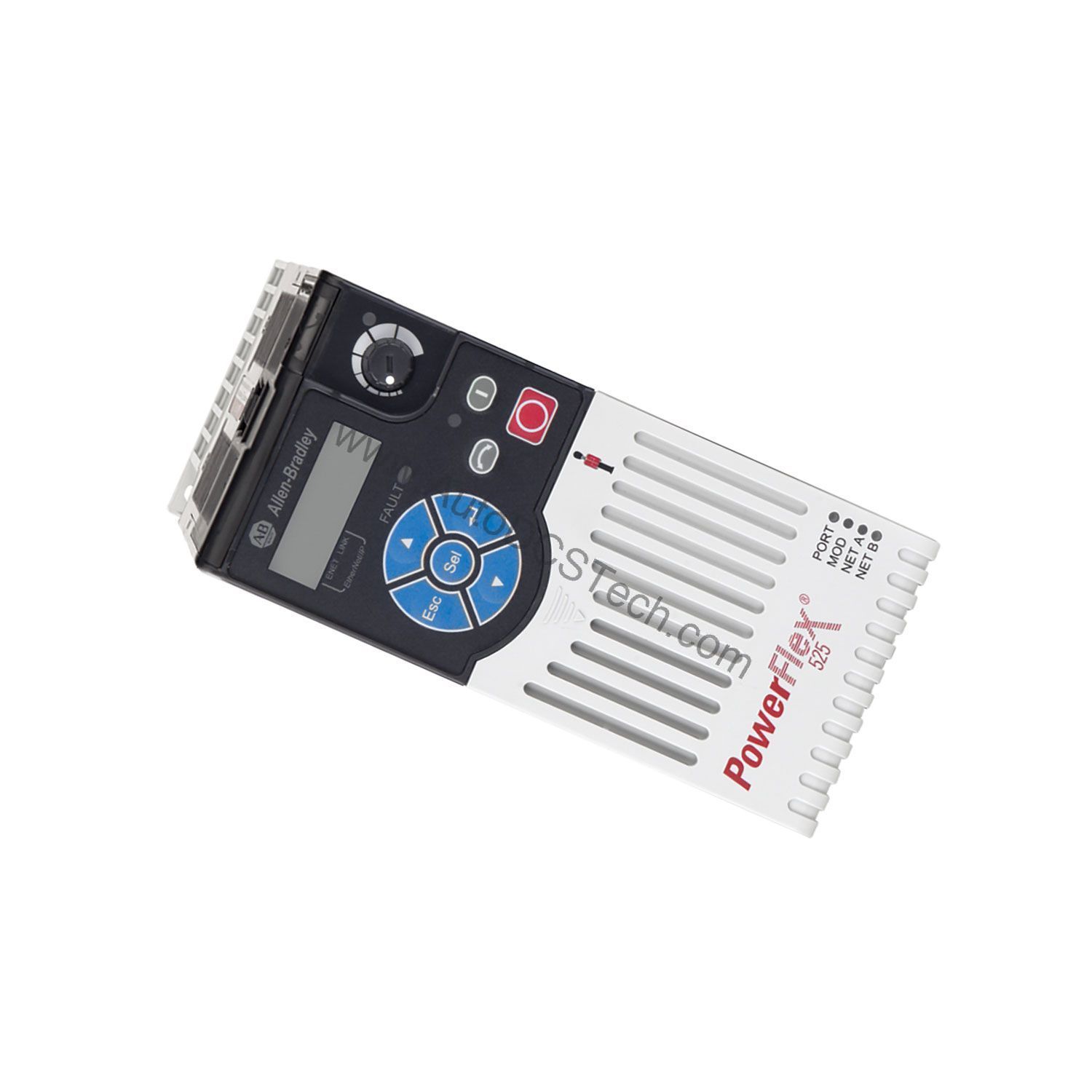

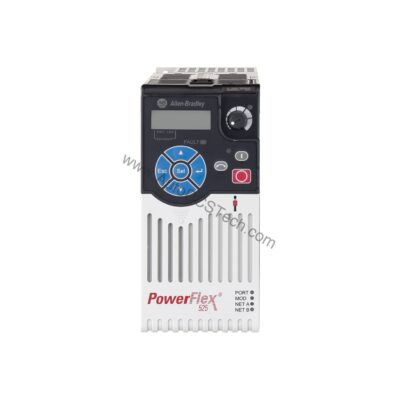

Allen-Bradley 25B-A2P5N104 PowerFlex 525 VFD, 0.4kW, IP20

Technical Specifications Breakdown

Key parameters for the 25B-A2P5N104 are listed below for quick reference:

Installation and Setup: Designed for Flexibility

The compact Frame A design (152.0mm H x 72.0mm W x 172.0mm D) supports both panel mounting and DIN rail installation, giving you options to fit existing layouts. Zero stacking capability allows multiple drives to be mounted side-by-side, saving valuable panel space. The drive operates in temperatures up to 50°C without derating, and up to 60°C with derating, providing flexibility in warmer environments. Always follow the manufacturer's installation manual to ensure proper wiring and safety. The removable MOV allows use on ungrounded distribution systems, adding versatility.

Maintenance and Reliability: Maximizing Uptime

Regular inspection of the drive's cooling fins and surrounding area prevents dust buildup, which can cause overheating. The drive's operating temperature range of -20 to 50°C (with derating up to 60°C) should be respected to ensure long-term reliability. Storage conditions are also critical: maintain a temperature range of -40...85°C and relative humidity of 0...95% (non-condensing) to avoid damage. The drive complies with IEC 60721-3-3 level 3C2 conformal coating standards, offering protection against corrosive gases. These features reduce the risk of unexpected failures, lowering total cost of ownership.

Compact Power and Connectivity: The Allen-Bradley 25B-A2P5N104

Industrial operations constantly balance performance against floor space and budget. The Allen-Bradley 25B-A2P5N104 PowerFlex 525 drive delivers precise motor control in a compact Frame A package, making it a smart choice for applications where every inch counts. This variable frequency drive (VFD) combines essential features with robust build quality, offering a cost-effective solution for controlling AC motor speed and torque.

Cost-Effective Motor Control for Diverse Industries

Industries such as water treatment, packaging, and material handling benefit from its ability to reduce energy consumption by matching motor speed to demand. The single-phase input simplifies installation in facilities with limited three-phase power, lowering infrastructure costs. With an IP20 enclosure, it is well-suited for clean, indoor environments like control cabinets, protecting your investment without the expense of a higher-rated enclosure.

Connectivity and Integration: Ethernet/IP Built-In

This drive includes a built-in Ethernet/IP port, enabling seamless integration into modern industrial networks. This allows for remote monitoring, configuration, and data collection, reducing downtime and improving process visibility. For legacy systems, optional communication adapters for Dual Ethernet/IP, DeviceNet, and Profibus DP are available, ensuring compatibility with a wide range of PLCs and SCADA systems. This flexibility protects your existing infrastructure investment while enabling future upgrades.
