Introduction: Evolution of Vibration Monitoring
In the early days of industrial rotating machinery, engineers relied on periodic manual measurements to assess machine health. The advent of continuous vibration monitoring transformed maintenance from reactive to predictive, enabling early detection of mechanical faults. Today, the 991-06-50-03-00 from Bently Nevada represents a mature, reliable solution in this evolution, providing precise axial thrust measurement in a compact, DIN-rail mount package.
This probe vibration transmitter is engineered for demanding environments where accurate, real-time data is critical. Its design reflects decades of field experience, delivering dependable performance in turbines, compressors, and other critical rotating equipment.
Key Features & Technical Specifications

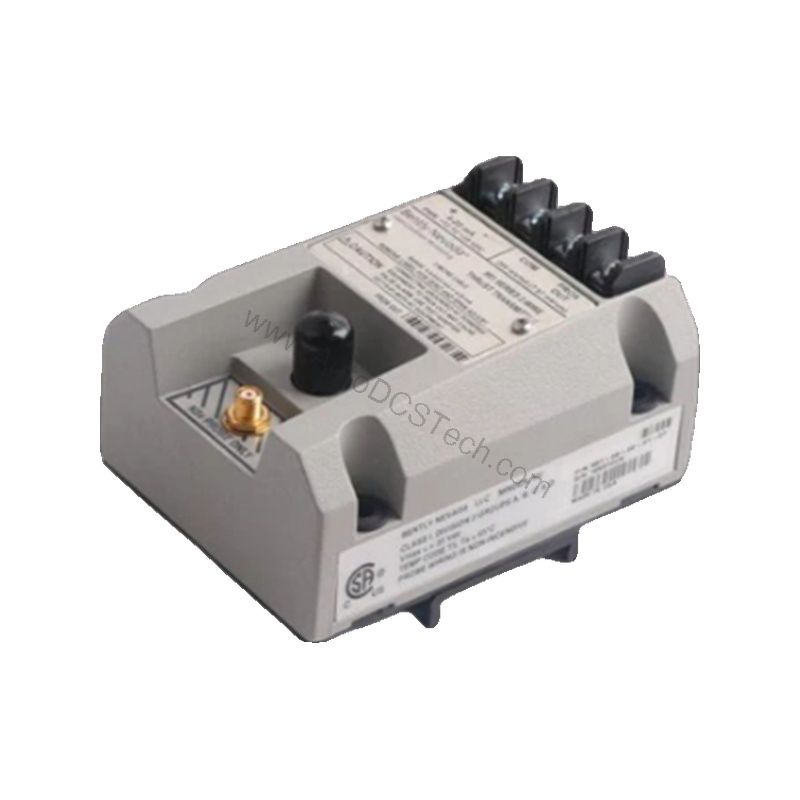

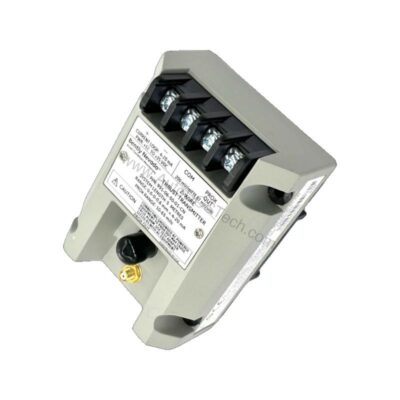

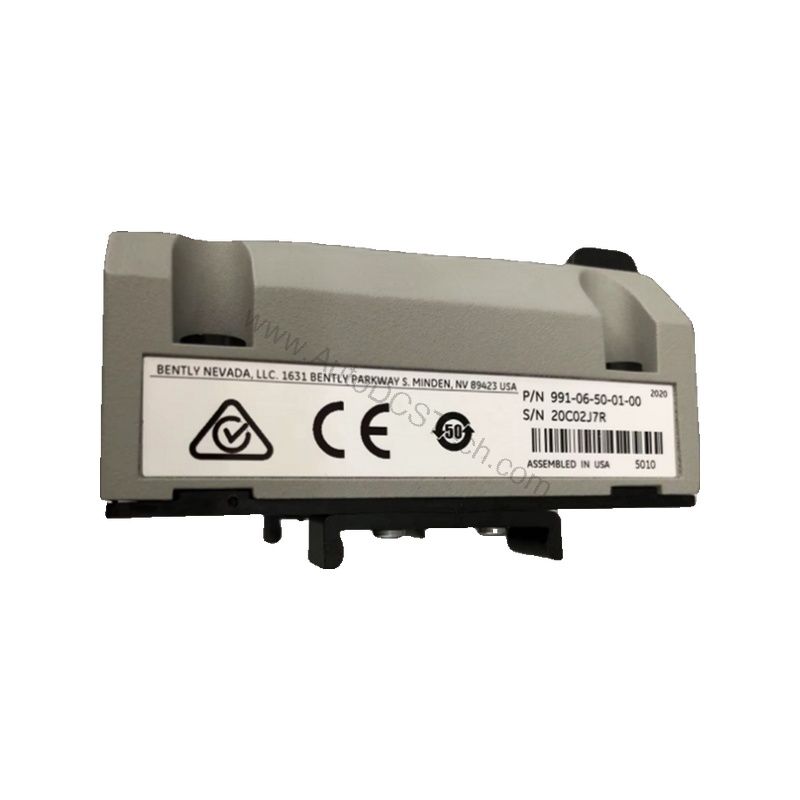

The 991-06-50-03-00 is a thrust transmitter that accepts input from a single non-contacting 3300 NSv proximity probe and extension cable. This configuration allows for direct measurement of axial shaft position, a critical parameter for preventing thrust bearing failure.
- Full-scale option: 0.6-0-0.6 mm (25-0-25 mils) current loop linear range.
- System length: 5.0 meters (16.4 feet) cable.
- Mounting: DIN rail with DIN clips and screws (option 03).
- Output signal: 4-20 mA DC in a 2-wire configuration.
- Power requirement: +12 to +35 Vdc input at the transmitter terminal.
- Linear range: 0.25 to 1.65 mm for Prox Out.
- Accuracy: Within ±1.5% over specified full scale (typical).
- Maximum loop resistance: 1,000 Ω including cable at 35 Vdc.
- Current limiting: 23 mA typical.
- Operating temperature: -35°C to +85°C (-31°F to +185°F).
- Storage temperature: -51°C to +100°C (-60°F to +212°F).
- Weight: 0.43 kg (0.9 lbm).
One distinctive feature is the Not OK/Signal Defeat function. In the event of a fault condition, the output drops to less than 3.6 mA within 100 µs, providing a clear, rapid indication of a problem. This fast response is crucial for triggering alarms and protecting machinery.
Real-World Applications
The 991-06-50-03-00 is specifically designed for axial thrust measurement, making it ideal for monitoring the axial position of rotating shafts in large machinery. Common applications include steam turbines, gas turbines, compressors, and pumps where excessive thrust can lead to catastrophic bearing damage.
In a typical installation, the transmitter is mounted on a DIN rail in a control cabinet, while the proximity probe is installed near the thrust bearing. The 4-20 mA output can be directly interfaced with PLCs, DCS systems, or standalone monitors, enabling seamless integration into existing control architectures.
Installation & Setup
Proper installation is essential for accurate measurement. The 991-06-50-03-00 is designed for DIN rail mounting, simplifying mechanical installation. The system length option of 5.0 meters provides flexibility in positioning the transmitter relative to the probe.
When wiring, ensure that the power supply provides +12 to +35 Vdc at the transmitter terminals. The 4-20 mA output is a two-wire loop, so observe correct polarity. The zero and span adjustments are non-interacting external adjustments, allowing for straightforward calibration without affecting each other.
Always follow the manufacturer's manual for detailed wiring and configuration instructions.
Maintenance & Reliability
Routine maintenance of the 991-06-50-03-00 is minimal due to its solid-state design. However, periodic inspection is recommended to ensure that the DIN rail mounting is secure and that all electrical connections remain tight.
The transmitter's wide operating temperature range (-35°C to +85°C) ensures reliable operation in harsh industrial environments. Its storage temperature range of -51°C to +100°C allows for safe storage in extreme conditions.
Given its role in critical machinery protection, verifying the Not OK/Signal Defeat function periodically is advisable. This can be done by simulating a fault condition and confirming that the output drops below 3.6 mA.
Compatibility & Integration
The 991-06-50-03-00 is designed to work with Bently Nevada's 3300 NSv proximity probe and extension cable. The 4-20 mA output is universally compatible with most industrial control systems, including PLCs, DCS, and SCADA systems.
Its DIN rail mounting option (option 03) allows for easy integration into existing control panels. The transmitter's 2-wire configuration simplifies wiring, reducing installation time and potential points of failure.
Product Support & Availability
The 991-06-50-03-00 is available from AutoDCSTech, a leading supplier of industrial automation parts. Please verify current lifecycle status and availability with AutoDCSTech before ordering.
