Product Overview

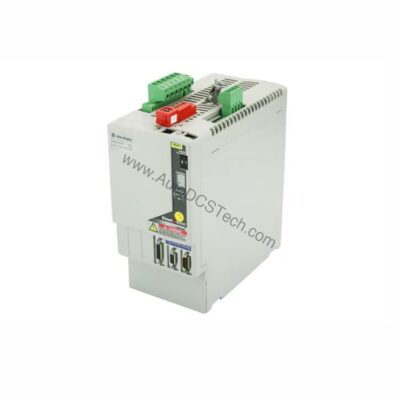

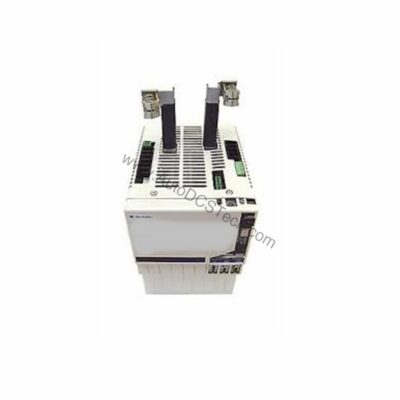

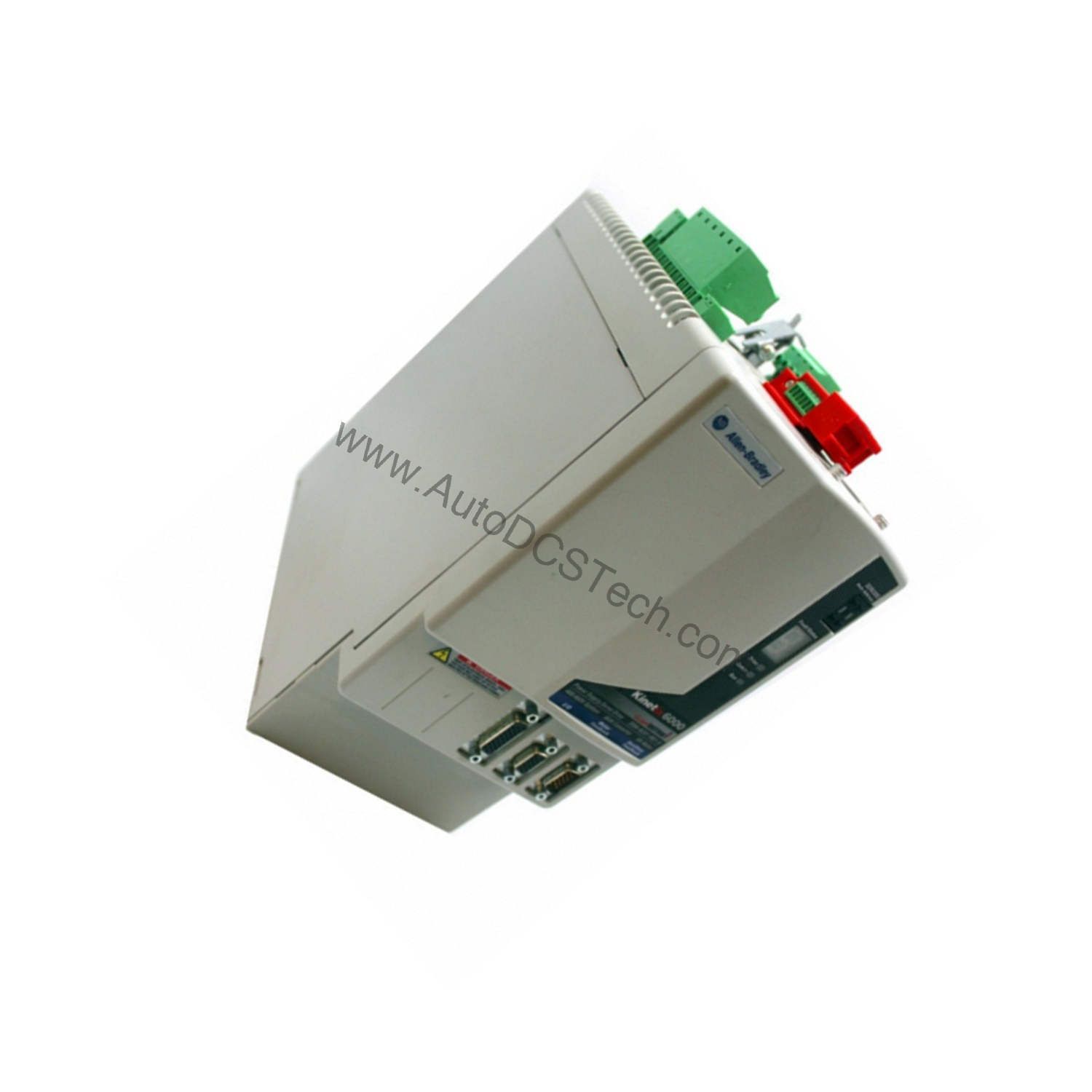

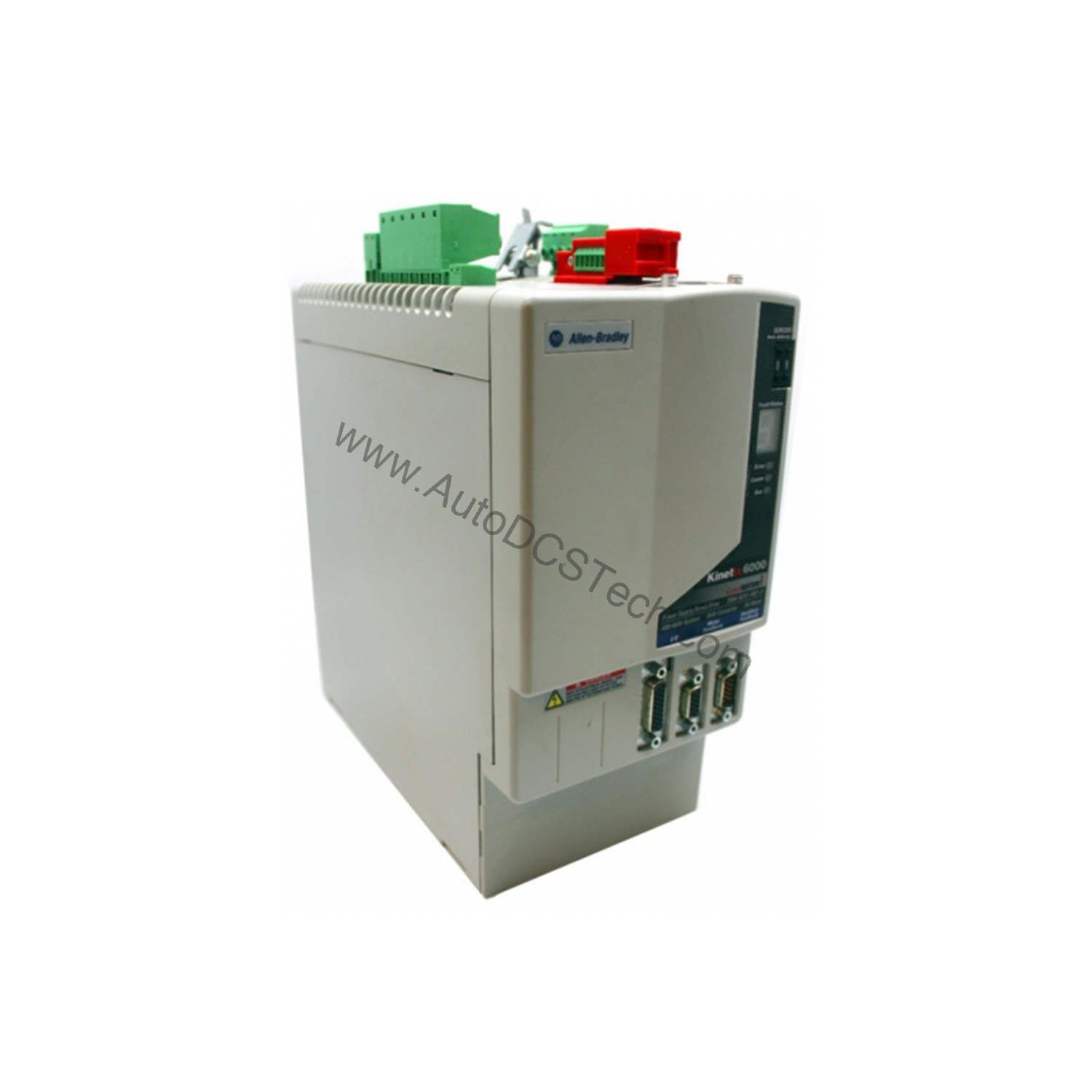

The Allen-Bradley 2094-SE02F-M00-S1 is a control module from the Kinetix 6200 series, designed to integrate with Logix 5000 controllers. It provides a Safe Speed Monitor safety feature and a fiber-optic Sercos interface for reliable communication in demanding industrial environments. This module is an essential component for motion control systems requiring precise safety monitoring.
Technical Specifications Breakdown
Key parameters for the 2094-SE02F-M00-S1 are listed below for quick reference:
| Feature | Specification |
|---|---|
| Brand | Allen-Bradley / Rockwell Automation |
| Series | Kinetix 6200 |
| Part Number | 2094-SE02F-M00-S1 |
| Interface | Sercos, fiber optic |
| Sercos Ports | Rx/Tx |
| Number of Ethernet Ports | 1 |
| Built-in Safety Feature | Safe Speed Monitor |
| Compatibility | Logix 5000 |
| Weight | 0.68 kilograms (1.5 pounds) |
| Mounting | Rail mount |
| Certifications | CE, UL |
| Operating Temperature | 0 to 50 degrees Celsius (32 to 122 degrees Fahrenheit) |
| Storage Temperature | -40 to 70 degrees Celsius (-40 to 158 degrees Fahrenheit) |
Industry Applications
In material handling systems, the Safe Speed Monitor ensures conveyor speeds remain within safe limits, reducing risk to personnel. The fiber-optic Sercos interface provides noise immunity, making it suitable for welding or heavy motor environments where electrical interference is common.
Installation & Setup Guidance
Mount the module on a standard DIN rail in a clean, dry enclosure. Connect the fiber-optic Sercos cables to the Rx/Tx ports, ensuring proper polarity. Use the single Ethernet port for configuration and integration with Logix 5000 controllers. Verify that the ambient temperature stays within the 0 to 50 °C operating range to avoid thermal stress. Always follow Rockwell Automation guidelines for safe installation.
Maintenance & Reliability
Inspect the fiber-optic connections periodically for dust or damage. Keep the module free from moisture and contaminants. The CE and UL certifications confirm compliance with international safety standards, supporting long-term reliability in industrial settings. The storage temperature range of -40 to 70 °C allows for safe warehousing between uses.
Compatibility & Integration

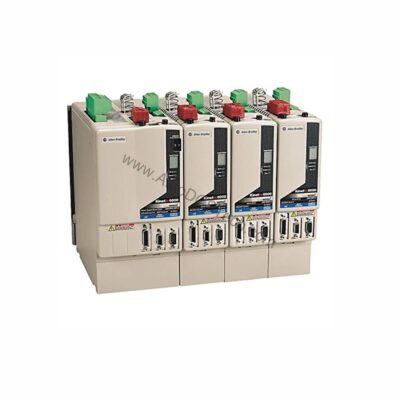

The 2094-SE02F-M00-S1 is designed for Logix 5000 controllers, enabling straightforward integration into existing Allen-Bradley architectures. The Sercos fiber-optic interface supports high-speed deterministic communication, while the Safe Speed Monitor works alongside Safe Torque-Off features for comprehensive safety. This module can be paired with compatible IAM/AM power modules from the Kinetix 6200 series.
Selection Guide & Purchasing Advice
When selecting a control module for your motion system, consider the required safety functions and communication speed. AutoDCSTech stocks this module and can assist with availability and lifecycle status. Please verify current lifecycle status and availability with AutoDCSTech before ordering.
Troubleshooting & Common Issues
If communication errors occur, check the fiber-optic cables for breaks or loose connections. Verify that the Ethernet port is configured correctly for your Logix 5000 controller. If the Safe Speed Monitor triggers unexpectedly, review the speed threshold settings in the safety configuration. For persistent issues, consult the Kinetix 6200 technical documentation.
Availability & Condition at AutoDCSTech
| Part Number | 2094-SE02F-M00-S1 |
|---|---|
| Availability | In Stock |
| Condition | New |
| Warranty | One Year |
| Origin | US |
