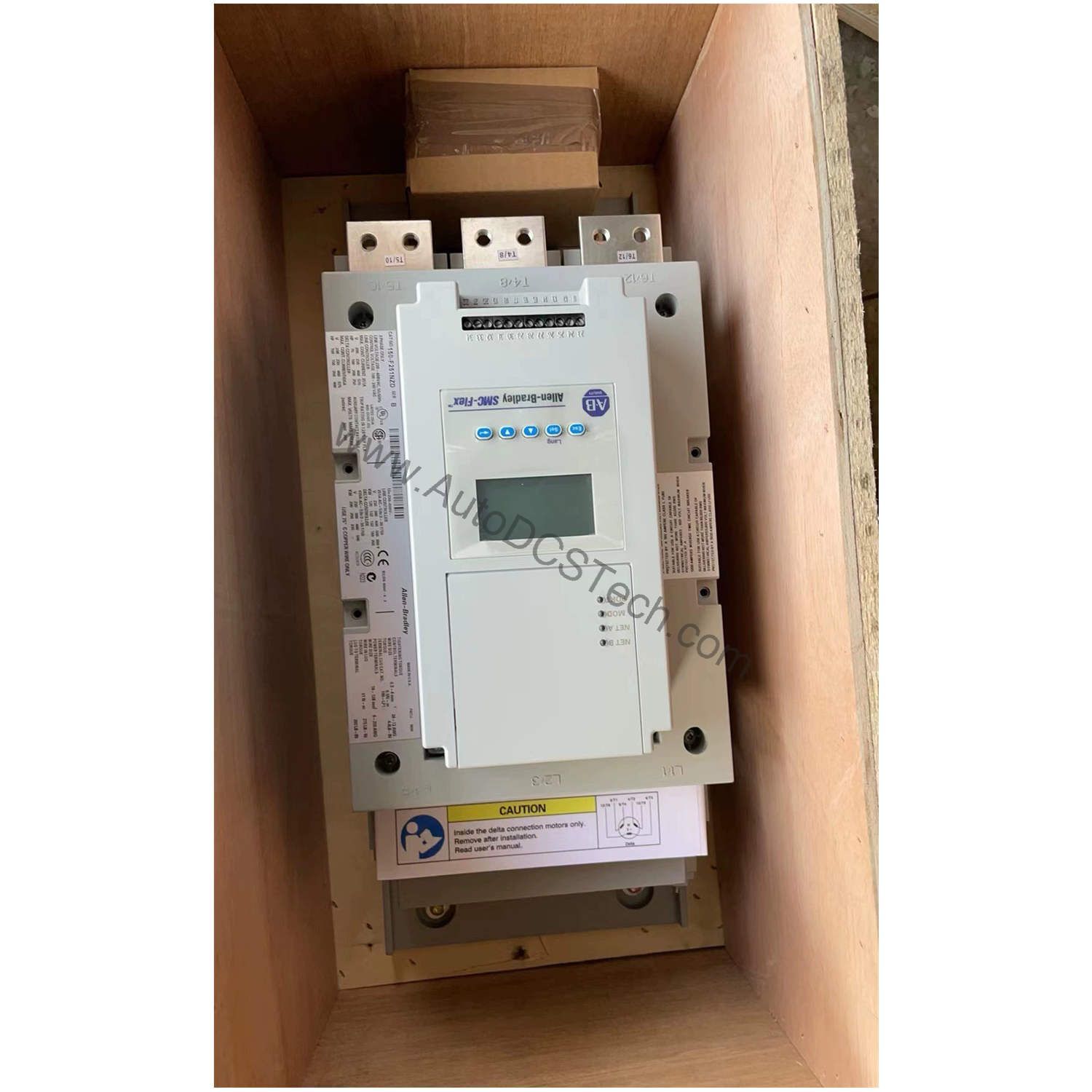

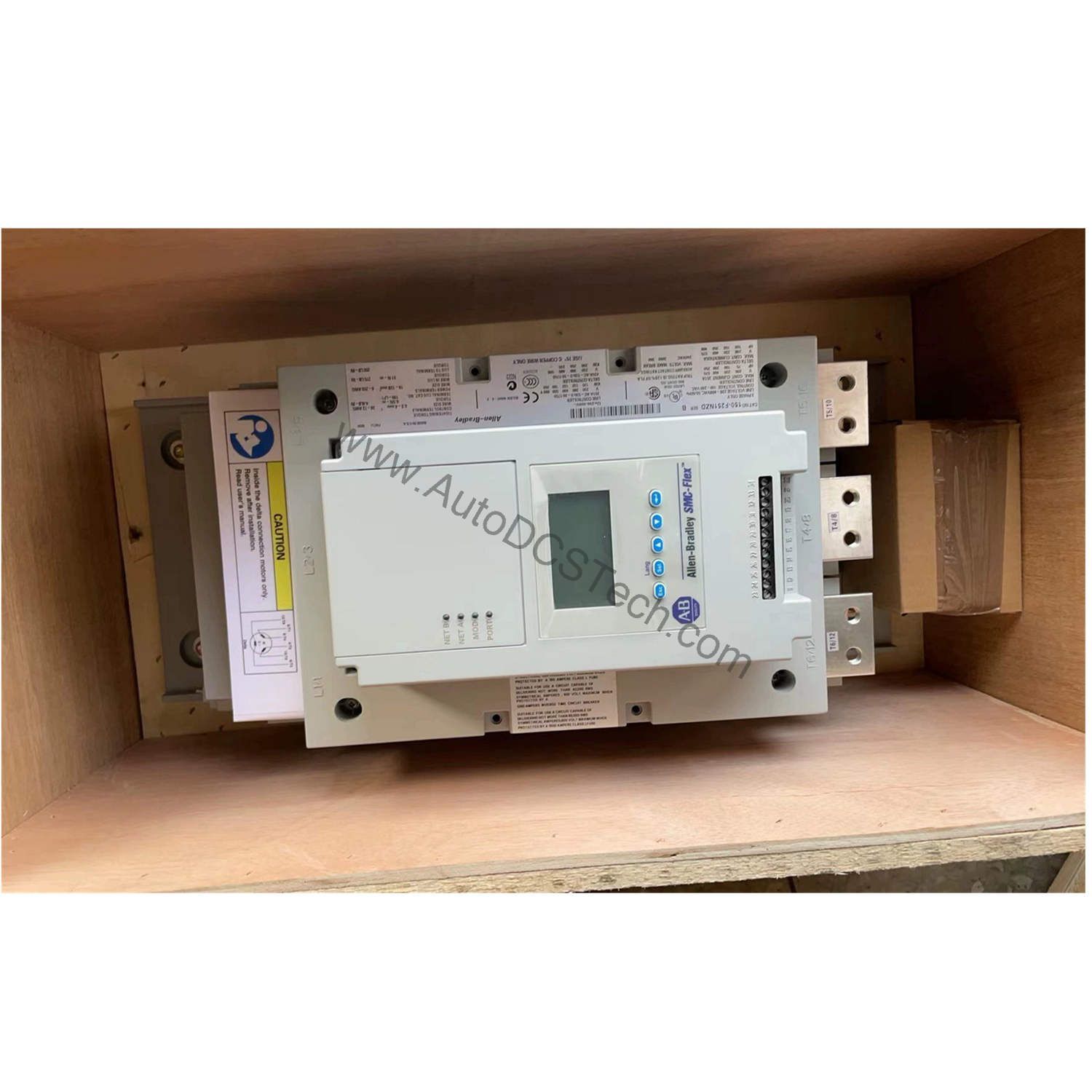

Allen-Bradley 150-F251NBD SMC Flex Smart Motor Controller

Product Overview

The Allen-Bradley 150-F251NBD is a SMC Flex Smart Motor Controller from the Bulletin 150 series. This solid-state controller provides soft starting and stopping for three-phase induction motors, reducing mechanical stress and electrical disturbances. It is designed for industrial applications requiring reliable motor control and protection.

Technical Specifications Breakdown

Key parameters for the 150-F251NBD are listed below for quick reference:

Industry Applications

This controller is suited for applications requiring controlled acceleration and deceleration of motors. In conveyor systems, it minimizes belt jerk and product spillage. For pump applications, it reduces water hammer effects. The ground fault detection feature enhances safety in environments with moisture or conductive dust.

Installation & Setup Guidance

Mount the open-type enclosure in a clean, dry location with adequate airflow. Maintain ambient temperature between 0 and 50 degrees Celsius. Use an additional fan if natural convection is insufficient. Follow static control precautions during handling. Connect input line voltage per the 200 to 460 VAC, three-phase specification. Set control voltage to 120 or 240 VAC as required.

Maintenance & Reliability

Periodically inspect the controller for dust accumulation and loose connections. Verify that the cooling fan (if used) operates freely. Check ground fault detection functionality using an external sensor. No disassembly of the unit is required for routine inspection.

Compatibility & Integration

The 150-F251NBD integrates with standard three-phase motor systems. It includes a built-in electronic motor overload protection feature and an SCR bypass/run contactor. The programmable contact configuration offers one normally open and one normally closed contact for external signaling.

Selection Guide & Purchasing Advice

When selecting a motor controller, verify that the current rating (251 amps) and horsepower rating (200 HP at 460 VAC) match your motor specifications. For delta connection applications, the controller supports up to 350 HP at 460 VAC. Contact AutoDCSTech for lifecycle status and availability before ordering.

Troubleshooting & Common Issues

If the controller fails to start, check control voltage at 120/240 VAC and input line voltage within 200-460 VAC. Verify ground fault detection settings and external sensor connection. For overload trips, confirm motor current does not exceed 251 amps. Ensure the ambient temperature stays below 50 degrees Celsius.
