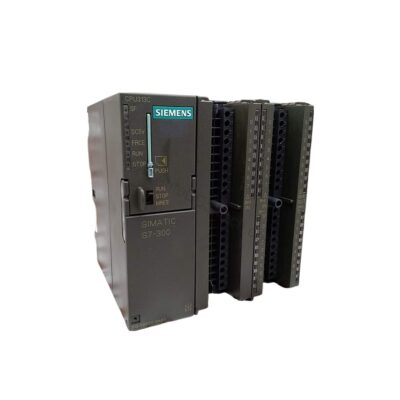

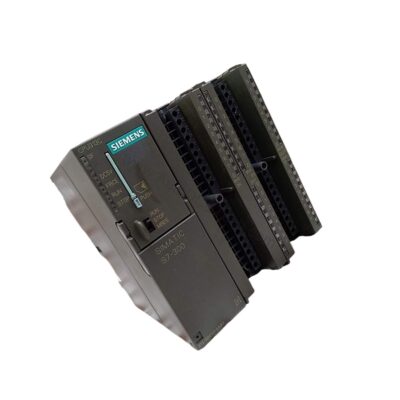

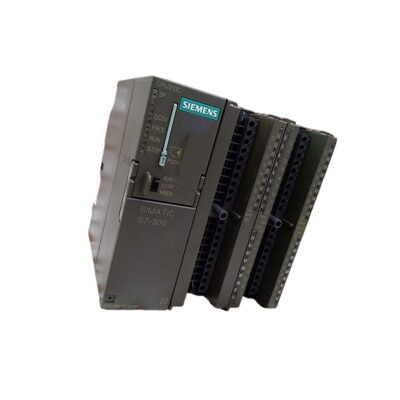

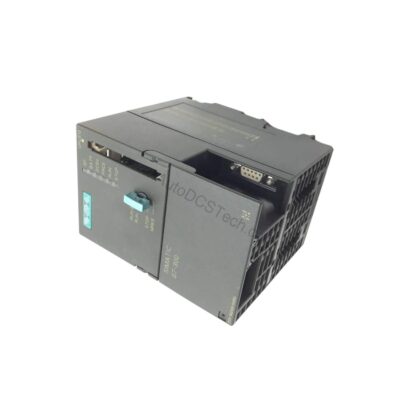

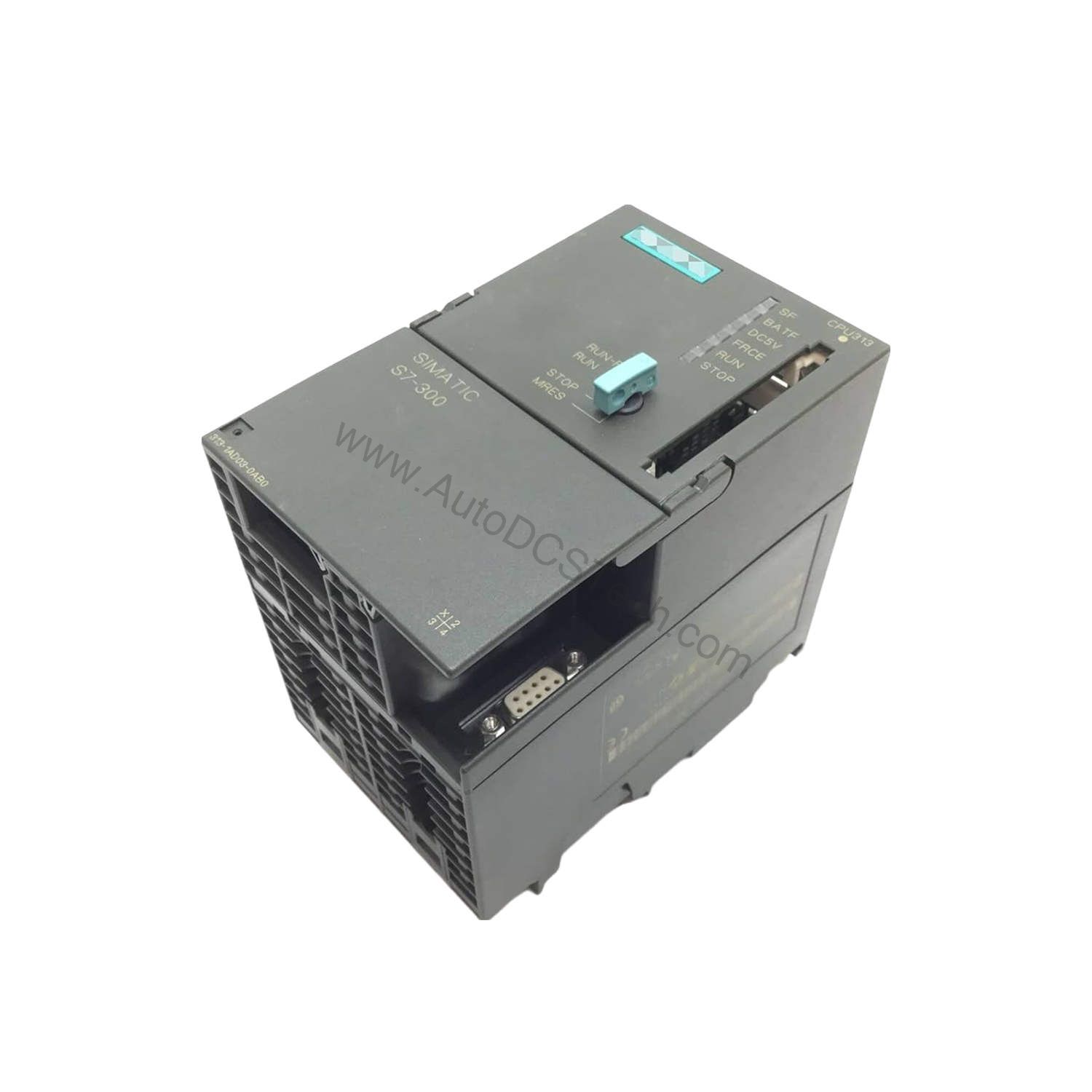

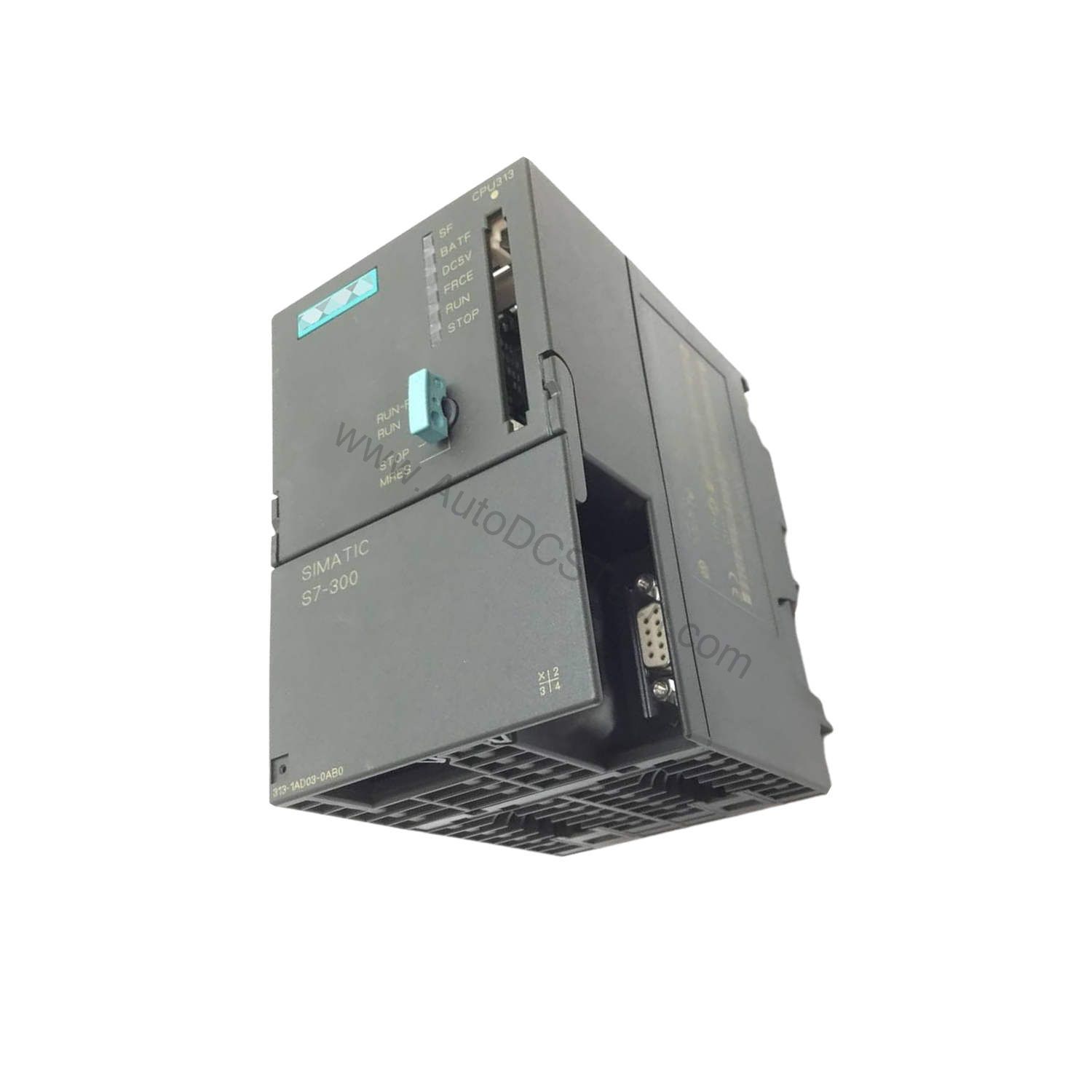

6ES7313-6CG04-0AB0 Siemens 24V DC CPU 16DI/16DO

6ES7313-6CG04-0AB0 Overview: Compact Control with Integrated I/O

When your automation system demands a compact yet powerful controller, the 6ES7313-6CG04-0AB0 from Siemens delivers. This CPU 313C-2 DP is part of the SIMATIC S7-300 family, engineered for applications that require integrated digital I/O and high-speed processing. With a 24 V DC rated supply voltage and a permissible range of 19.2 V to 28.8 V, this unit offers stable operation in industrial environments. The integrated 128 KB work memory ensures ample space for your control programs, while the 16 digital inputs and 16 digital outputs provide direct interface to field devices. This model also features three high-speed counters (30 kHz) and an integrated DP interface, making it a versatile choice for mid-range automation tasks.

From a cost perspective, the 6ES7313-6CG04-0AB0 reduces the need for separate I/O modules, lowering both hardware and installation expenses. Its compact design saves cabinet space, and the integrated power supply simplifies wiring. For engineers seeking a balance between performance and economy, this CPU offers a practical solution.

Key Features and Technical Specifications

The 6ES7313-6CG04-0AB0 is packed with features that enhance both performance and cost-efficiency. Below are the critical specifications extracted from the datasheet:

• Supply Voltage: Rated 24 V DC, permissible range 19.2 V to 28.8 V.
• Digital Inputs: 16 inputs, with 12 usable for technological functions.
• Digital Outputs: 16 outputs, with 4 high-speed outputs (note: cannot be connected in parallel).
• Work Memory: 128 KB integrated, not expandable.
• Load Memory: Plug-in Micro Memory Card (MMC), max 8 MB.
• Processing Times: Bit operations 0.07 µs, word operations 0.15 µs, fixed point 0.2 µs, floating point 0.72 µs.
• Power Loss: Typically 9 W.
• Current Consumption: Rated 800 mA, no-load 110 mA, inrush 5 A.
• Digital Output Current: For signal "1", rated 500 mA.
• Output Voltage: For signal "1", min L+ (-0.8 V).

One distinctive spec is the high-speed outputs, which allow precise control of fast actuators. This feature can reduce cycle times in applications like packaging or labeling, directly improving throughput and lowering per-unit production costs. Additionally, the input delay is parameterizable (0.1/0.3/3/15 ms), giving you flexibility to optimize response times for your specific process.

Installation and Setup Guidance

Proper installation is crucial for optimal performance. The 6ES7313-6CG04-0AB0 requires a front connector (1x 40-pole) and a Micro Memory Card, which are not included and must be ordered separately. When mounting, ensure adequate ventilation to maintain ambient temperature within specified limits. For horizontal installation, up to 16 inputs can be simultaneously controlled at up to 40 °C, but this drops to 8 at 60 °C. For vertical installation, the limit is 8 inputs at 40 °C. Plan your wiring accordingly to avoid exceeding these limits.

For the power supply, use a miniature circuit breaker type C (min. 2 A) or type B (min. 4 A) as recommended. This external protection helps prevent damage from overcurrent. Also, note that the digital outputs have reverse polarity protection, but the digital inputs do not, so verify polarity before connection.

Maintenance and Reliability

Routine maintenance for the 6ES7313-6CG04-0AB0 is straightforward. The MMC provides maintenance-free backup of program and data, eliminating the need for battery changes. However, it is advisable to periodically inspect the MMC for proper seating and ensure the CPU is free from dust and debris. The hardware clock is retentive and synchronizable, with a deviation of max 10 s per day (typ. 2 s), so occasional time synchronization may be needed for precise timestamping.

Given the cost-analysis angle, this low-maintenance design reduces service calls and replacement parts, contributing to a lower total cost of ownership. The 6-week backup time at 40 °C ensures that even during power outages, your program remains intact, preventing costly reprogramming.

Cost-Benefit Analysis: Why This CPU Saves Money

Investing in the 6ES7313-6CG04-0AB0 yields long-term savings. Its integrated I/O eliminates the need for additional modules, reducing upfront hardware costs. The 24 V DC operation is energy-efficient, and the low power loss (typ. 9 W) minimizes heat dissipation, potentially extending the life of surrounding components. Moreover, the high-speed processing (0.07 µs for bit operations) accelerates logic execution, which can increase machine throughput and reduce energy consumption per cycle.

Maintenance costs are also lower due to the maintenance-free backup provided by the MMC. The clock continues running after power-off, and the backup time is 6 weeks at 40 °C, ensuring reliable operation without frequent battery replacements. This reliability translates to reduced downtime and lower total cost of ownership.

Integration and Compatibility

The 6ES7313-6CG04-0AB0 features an integrated DP interface, allowing it to act as a DP master. It supports up to 3 expansion units and can operate with up to 4 DP masters via CP. This makes it easy to integrate into existing PROFIBUS DP networks. The CPU also supports MPI communication for programming and data exchange. For engineering, you need STEP 7 V5.5 + SP1 or higher, or V5.3 + SP2 with HSP 203.

From a cost perspective, using the integrated DP interface eliminates the need for a separate communication processor, saving money and simplifying setup. The ability to connect up to 8 FMs and 6 LAN CPs provides scalability without excessive hardware investment.

Troubleshooting Common Issues

If you encounter issues, start by checking the power supply. The permissible voltage range is 19.2 V to 28.8 V DC; outside this range, the CPU may not operate correctly. Verify that the miniature circuit breaker is properly rated. For digital inputs, ensure the signal levels are within -3 to +5 V for "0" and +15 to +30 V for "1". For outputs, the load resistance must be between 48 Ω and 4 kΩ; exceeding this range can cause overcurrent or no switching.

If high-speed outputs are not functioning, remember they cannot be connected in parallel. Also, check the input delay settings; if you reconfigure them during runtime, the new filter time may not take effect until the next filter cycle. For communication issues, verify the DP interface settings and ensure the bus is properly terminated.

Product Support and Availability

The 6ES7313-6CG04-0AB0 is available from AutoDCSTech, a trusted supplier of industrial automation parts. Please verify current lifecycle status and availability with AutoDCSTech before ordering. Our team can assist with technical questions and ensure you receive the right components for your application.
