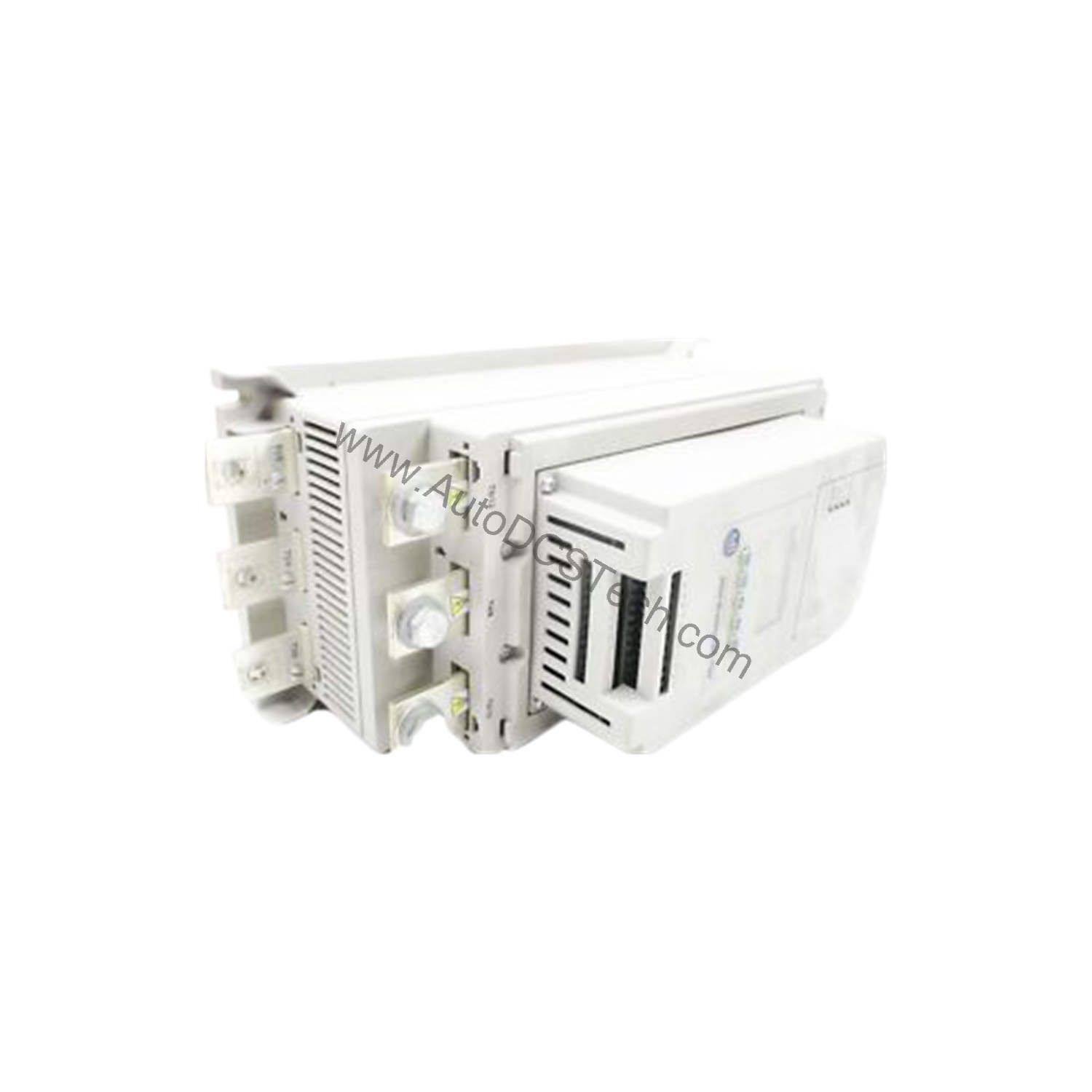

Allen-Bradley 150-F108NCD SMC-Flex Smart Motor Controller 108A

Technical Specifications Breakdown

Key parameters for the 150-F108NCD are listed below for quick reference:

Industry Applications and Operational ROI

By offering seven different starting and stopping modes, it reduces mechanical wear and electrical stress, extending motor life and lowering maintenance costs. For example, a soft start mode limits inrush current to reduce voltage dips in weak power systems, while a kickstart mode provides initial torque for high-friction loads. The 108A rating at 460V AC supports up to 75 HP motors, making it suitable for medium-duty industrial processes.

Installation and Setup Guidance

Mount the controller in a clean, dry location with adequate ventilation. Ensure the supply voltage matches the 200-575V AC three-phase input range. Connect control power to the 100-240V AC terminals. Use the built-in DPI communication interface to integrate with automation networks via optional modules. Configure the seven start/stop modes through the onboard programming interface to match load requirements. Always follow local electrical codes and manufacturer guidelines for wiring and grounding.

Maintenance and Reliability

The solid-state design eliminates contact wear, reducing periodic inspection needs. Monitor LED indicators for status and fault conditions. Keep the enclosure free from dust and moisture. The controller withstands 1G peak vibration and 15G operating shock for 11 milliseconds, ensuring reliability in harsh environments. Operate within the functional temperature range of 23 to 122 degrees Fahrenheit and non-condensing 5% to 95% relative humidity. Verify lifecycle status and availability with AutoDCSTech before ordering.

Smart Motor Control for Modern Industry

Industrial motor control has evolved from simple electromechanical starters to intelligent solid-state systems that optimize performance and protect equipment. The Allen-Bradley 150-F108NCD SMC-Flex smart motor controller exemplifies this evolution, offering precise microprocessor-based starting for three-phase induction motors in demanding applications.

Compatibility and Integration

This flexibility allows centralized monitoring and control, reducing downtime and improving diagnostics. The controller also features programmable relays for up-to-speed and normal operation signals.

Selection Guide and Purchasing Advice

When selecting a motor controller, consider the motor full-load current, voltage, and starting requirements. For higher current ratings, consult the SMC-Flex series options. AutoDCSTech stocks this controller and can advise on lifecycle status and compatible accessories. Contact our team to verify stock and lead times.
