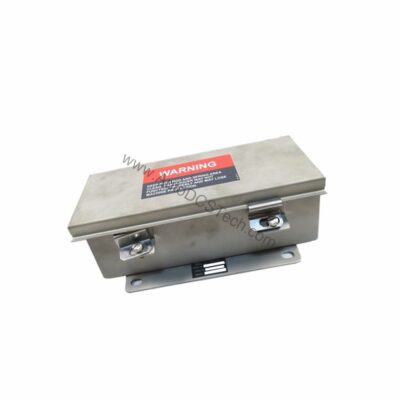

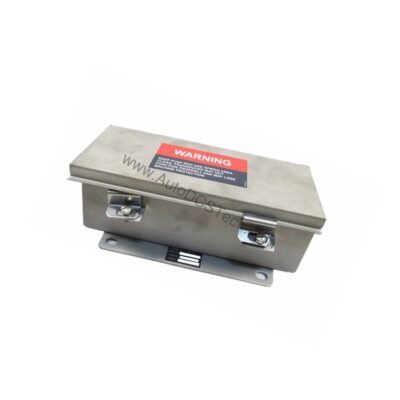

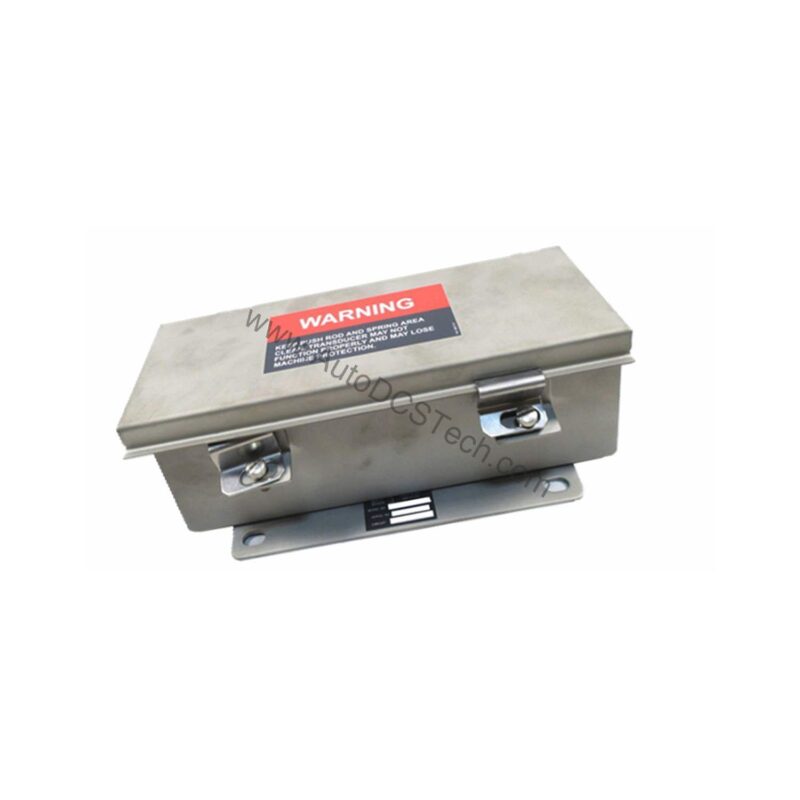

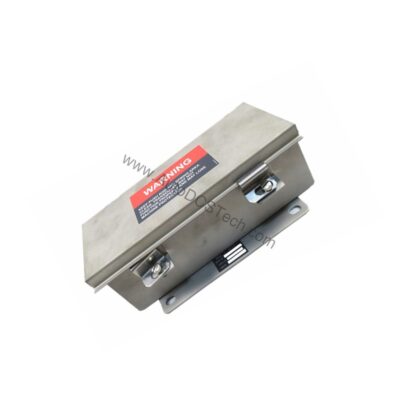

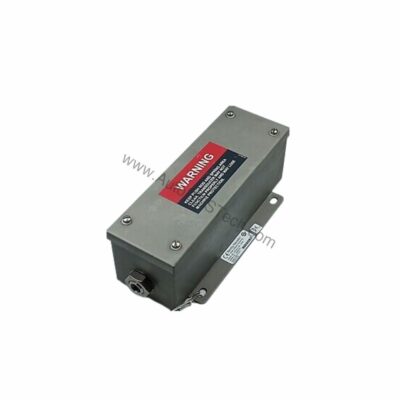

24765-02-01: Case Expansion Transducer Assembly DC
The 24765-02-01 is the Case Expansion Transducer Assembly DC covered on this page. The attribute that decides whether it fits the existing installation without modification is 2.3 kg.
On this unit case expansion transducer assembly dc is the figure that decides fit and function. In a machine protection or condition-monitoring installation case expansion transducer assembly dc is the attribute that decides whether the sensor reaches the target and reads it on the correct gap. A probe or transducer specified to the wrong case length, thread or sensitivity either cannot reach the measured surface or returns vibration values that do not line up with the rest of the train. Confirming 2.3 kg against the existing mount is therefore the first check before a replacement, not an afterthought.
| Feature | Specification |
|---|---|
| Manufacturer | Bently Nevada |
| Brand | Bently Nevada |
| Part Number | 24765-02-01 |
| Linear Range | 50.8 mm (2.00 in) |
| Scale Factor | 0.404 V/mm (10.25 V/in) |
| -3 dB Frequency | 15 Hz |
| Input Power | +24 Vdc, 30 mA minimum |
| Output Linearity | ±0.5% full-range |
| Output Ripple | <1% full scale |
| Stability | 0.125% full-scale |
| Operating Temperature | -18 °C to +71 °C |
| Weight | 2.3 kg |
Related Configurations
Other published configurations in the same family — confirm the distinguishing specification against your installation:
Availability & Condition at AutoDCSTech
| Part Number | 24765-02-01 |
|---|---|
| Availability | In Stock |
| Condition | New |
| Warranty | One Year |
| Origin | US |
