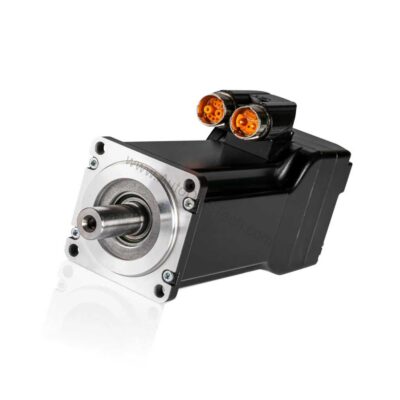

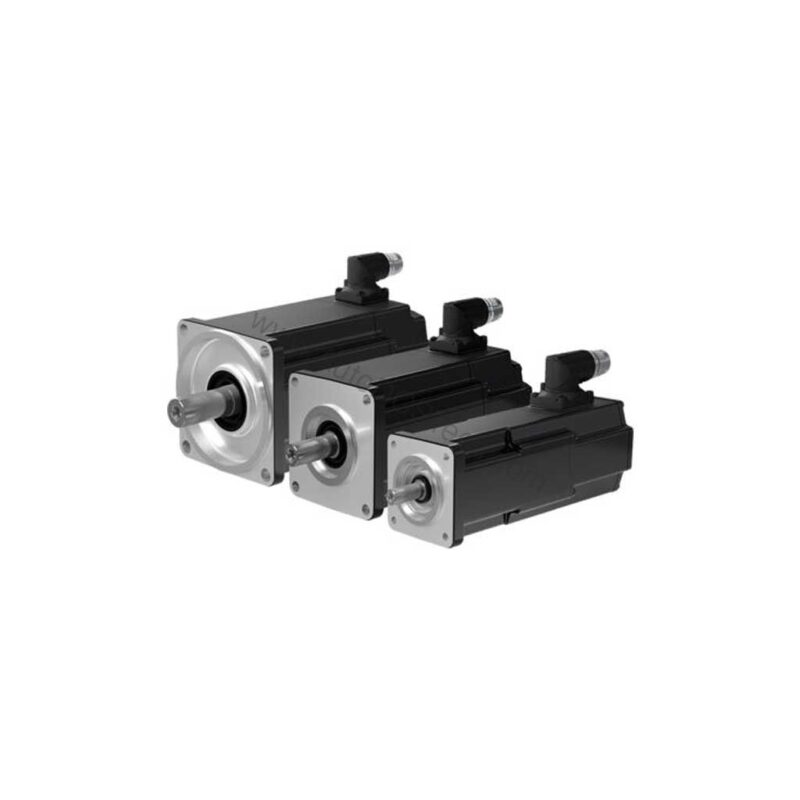

8LSA56.ee030ff00-4: B&R 3 Phase Servo Motor 17.8 Nm
The 8LSA56.ee030ff00-4 is the B&R 3 Phase Servo Motor 17.8 Nm covered on this page. The attribute that decides whether it fits the existing installation without modification is 5592 W.
On this unit b&r 3 phase servo motor 17.8 nm is the figure that decides fit and function. Selecting this unit comes down to confirming the configuration against the installation it is being fitted to. b&r 3 phase servo motor 17.8 nm is the attribute that decides fit and function, and verifying 5592 W against the existing equipment is the check that prevents a part that installs but does not perform.
| Feature | Specification |
|---|---|
| Manufacturer | B&R |
| Brand | B&R |
| Part Number | 8LSA56.ee030ff00-4 |
| Nominal speed | 3000 rpm |
| Nominal torque | 17.8 Nm |
| Nominal power | 5592 W |
| Nominal current | 10.9 A |
| Stall torque | 25.0 Nm |
| Maximum torque | 75.0 Nm |
| Maximum speed | 5000 rpm |
| Torque constant | 1.63 Nm/A |
| Moment of inertia | 17.9 kg·cm² |
| Mass (without brake) | 14.50 kg |
· Last updated:
Availability & Condition at AutoDCSTech
| Part Number | 8LSA56.ee030ff00-4 |
|---|---|
| Availability | In Stock |
| Condition | New |
| Warranty | One Year |
| Origin | US |
