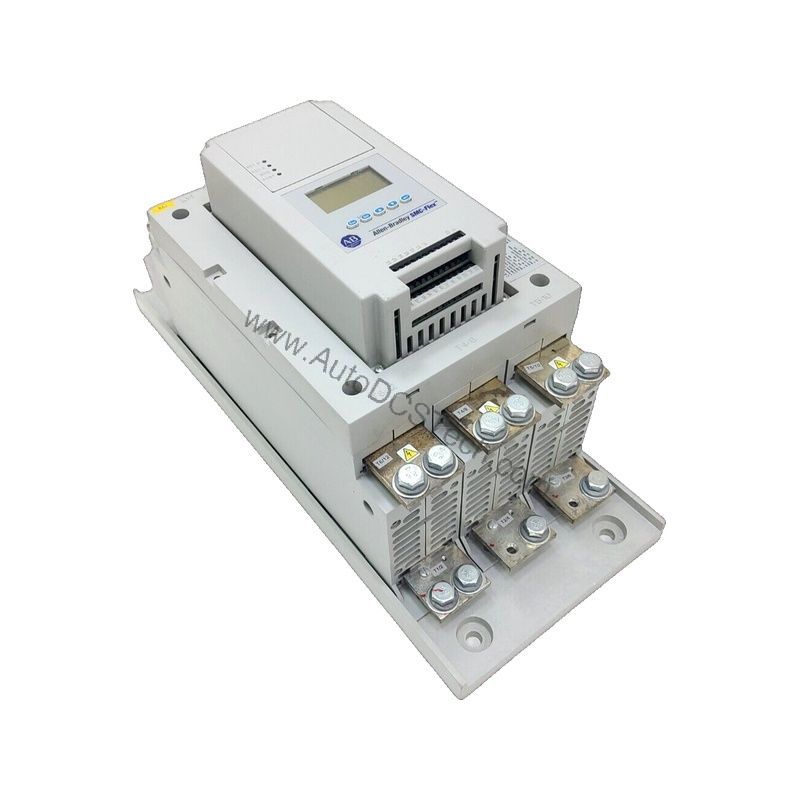

Allen-Bradley 150-F201FBD SMC-Flex Solid State Controller, 201A, IP65

Product Overview

The 150-F201FBD is a solid state controller from the SMC-Flex series by Allen-Bradley, a brand under Rockwell Automation. It features an IP65 (Type 4/12) enclosure, making it suitable for washdown and dusty locations. The controller is rated at 201 A and 150 Hp at 460V AC, with input line voltage of 400-460V AC, 3-phase, 50 and 60 Hz. Control voltage is 100-240V AC (for 5-480 A units). This unit integrates a microprocessor, modular design, and digital setup for precise motor management.

Technical Specifications Breakdown

Key parameters for the 150-F201FBD are listed below for quick reference:

Industry Applications

Common uses include conveyors, pumps, fans, and compressors. The integrated bypass contactor automatically engages at full speed, reducing heat dissipation and improving efficiency. The IP65 enclosure allows installation in harsh environments such as food processing, wastewater treatment, and material handling. The dual ramp start mode is particularly useful for applications with varying load conditions, such as crushers or mixers.

Installation and Setup Guidance

Mount the controller on a flat, vertical surface to ensure proper cooling. The IP65 enclosure protects against dust and water jets, but ensure conduit entries are sealed. Connect input power to terminals rated for 400-460V AC, 3-phase. Use the graphical backlit LCD display and keypad for initial setup. Navigate the three-level menu structure to select starting mode: soft start, current limit, full voltage, dual ramp, linear speed acceleration, preset slow speed, or soft stop. Verify control voltage is 100-240V AC before energizing.

Maintenance and Reliability

Periodically inspect the enclosure seals and cooling vents. The solid state design reduces wear compared to electromechanical starters. The controller monitors start and running modes; if a fault is detected, it shuts down the motor and displays an alarm. Operating temperature range is -5 to 40 degrees Celsius (23 to 104 degrees Fahrenheit). Ensure ambient temperature stays within this range to prevent thermal issues.

The Evolution of Motor Control

Industrial motor starting has evolved from simple across-the-line methods to sophisticated solid state controllers that reduce mechanical stress and optimize energy use. The Allen-Bradley 150-F201FBD SMC-Flex Smart Motor Controller represents this advancement, combining robust construction with flexible starting modes. Designed for demanding environments, this controller delivers reliable performance for three-phase motors up to 150 HP.

Selection Guide and Purchasing Advice

When selecting a motor controller, match the controller rating to your motor full-load current and voltage. For other voltages, derate accordingly. AutoDCSTech offers this unit with fast shipping and expert support. Please verify current lifecycle status and availability with AutoDCSTech before ordering.
