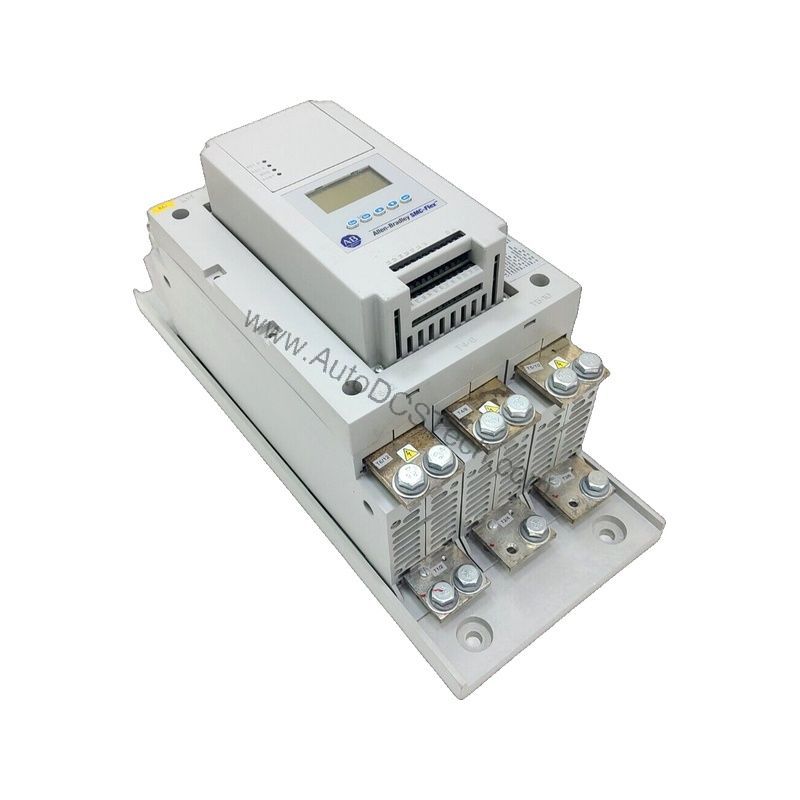

Allen-Bradley 150-F201FCD SMC-Flex Solid State Controller, 201A, IP65

Evaluating the Allen-Bradley 150-F201FCD SMC-Flex Solid State Controller

When selecting a motor controller for demanding industrial environments, the enclosure rating and electrical specifications are critical. The Allen-Bradley 150-F201FCD is a solid state controller from the SMC-Flex series, designed to manage starting and stopping of three-phase induction motors with precision and reliability. Its IP65 (Type 4/12) enclosure makes it suitable for washdown or dusty locations, reducing the need for additional cabinets.

Technical Specifications Breakdown

Key parameters for the 150-F201FCD are listed below for quick reference:

Industry Applications and Operational ROI

This controller is well-suited for applications requiring controlled acceleration and deceleration of large motors, such as conveyors, pumps, and compressors. The 201 A rating and 150 Hp at 460V AC capability handle substantial loads. By using the SMC-Flex soft start features—linear speed acceleration, current limit start, and selectable kickstart—operators reduce mechanical stress and electrical inrush, extending equipment life and lowering maintenance costs. The IP65 enclosure allows installation in wet or dirty environments without an extra enclosure, saving on installation expenses.

Installation and Setup Guidance

Before mounting, verify that the input line voltage matches your facility's supply: 500-575V AC, 3-phase, 50 or 60 Hz. The control voltage for this unit is 100-240V AC. Ensure the enclosure is securely fastened and all conduit entries are properly sealed to maintain the IP65 rating. Follow the manufacturer's wiring diagrams for connecting the motor and control circuits. Do not attempt to modify internal components; adjustments are made via the built-in programming interface.

Maintenance and Reliability

Periodically inspect the enclosure gaskets and seals for wear to preserve the IP65 (Type 4/12) integrity. Check all electrical connections for tightness and signs of corrosion. The controller's built-in electronic overload protection, voltage unbalance protection, and undervoltage protection help prevent motor damage, but routine inspection of the overall system is recommended. Keep the ambient environment within the controller's rated conditions.

Compatibility and Integration

The 150-F201FCD is part of the SMC-Flex family, which integrates with various motor types, including 6-lead wye-delta and three-phase squirrel-cage induction motors. It supports multiple starting modes, such as soft start/stop, preset slow speed, and dump ramp. For communication and advanced control, verify compatibility with your automation network using the SMC-Flex documentation.

Selection Guide and Purchasing Advice

When evaluating this controller, consider your motor's full-load current and horsepower requirements. The 150-F201FCD is rated for 201 A and 150 Hp at 460V AC, making it a robust choice for medium-to-large motors. Ensure the input voltage matches your supply (500-575V AC). For lifecycle status and availability, please verify with AutoDCSTech before ordering. AutoDCSTech stocks genuine Allen-Bradley parts and can assist with your purchase.

Troubleshooting and Common Issues

If the controller fails to start, first check that the input line voltage is within the 500-575V AC range and that the control voltage is present (100-240V AC). Verify that the motor overload protection settings are correctly programmed for the motor's full-load current. If the unit trips on voltage unbalance, measure phase-to-phase voltages to identify an imbalance. For persistent faults, consult the SMC-Flex user manual and contact technical support.
