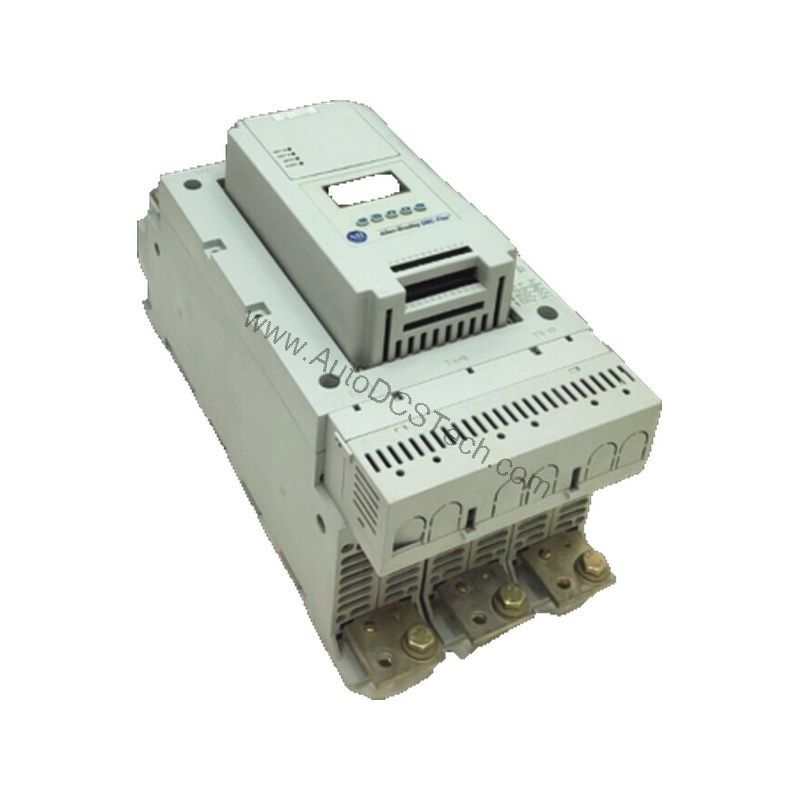

Allen-Bradley 150-F135FAD SMC-Flex Solid State Controller, 135A, IP65

Technical Specifications Breakdown

Key parameters for the 150-F135FAD are listed below for quick reference:

Industry Applications and Operational ROI

By using the 150-F135FAD, facilities can reduce inrush current and mechanical shock, extending the life of motors and driven equipment. The IP65 enclosure allows installation in washdown or dusty environments, minimizing downtime and maintenance costs. For operations running 230V AC three-phase systems, this controller delivers a cost-effective solution for motor management.

Installation and Setup Guidance

When installing the 150-F135FAD, ensure the input line voltage matches the 230V AC, 3-phase supply. The control voltage range of 100-240V AC accommodates various control circuits. Mount the unit securely in a location that does not exceed the IP65 enclosure limits—avoid submerging or exposing to high-pressure washdowns directly on seals. Follow standard wiring practices for solid state controllers, and verify all connections before applying power.

Maintenance and Reliability

Periodically inspect the enclosure gaskets and seals for integrity to maintain the IP65 rating. Keep the exterior clean and free of debris that could block ventilation. Because the controller uses solid state components, there are no moving parts to wear, but thermal cycling can affect connections over time. Check torque on power terminals annually to ensure reliable operation.

Robust Motor Control for Demanding Environments

Industrial facilities often face the challenge of starting and stopping large motors reliably while protecting equipment from electrical stress. The Allen-Bradley 150-F135FAD SMC-Flex Solid State Controller addresses this need with a rugged IP65 (Type 4/12) enclosure and a controller rating of 135 A, 100 Hp @ 460V AC. Designed for 230V AC, 3-phase, 50 and 60 Hz input lines, this module provides smooth acceleration and deceleration, reducing mechanical wear and electrical disturbances.

Compatibility and Integration

The SMC-Flex series is designed for use with standard three-phase induction motors. The 150-F135FAD integrates easily into existing control systems via its control voltage input. No specialized communication protocols are required for basic operation, making it a straightforward replacement or upgrade for older electromechanical starters.

Selection Guide and Purchasing Advice

When selecting a solid state controller, match the rating to your motor full-load current and voltage. The 150-F135FAD supports up to 135 A and 100 Hp at 460V AC, but note the input line is 230V AC. For applications needing higher voltage or current, consult the SMC-Flex family. AutoDCSTech stocks this module and can assist with availability and lifecycle status.

Please verify current lifecycle status and availability with AutoDCSTech before ordering.
