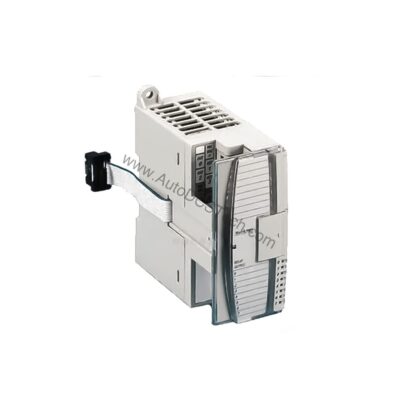

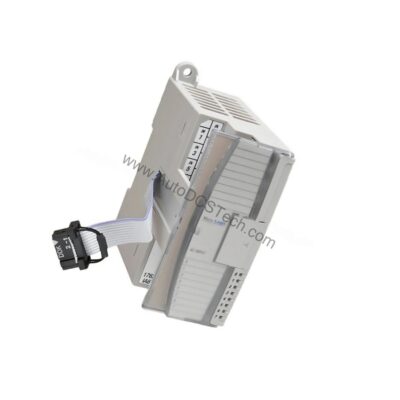

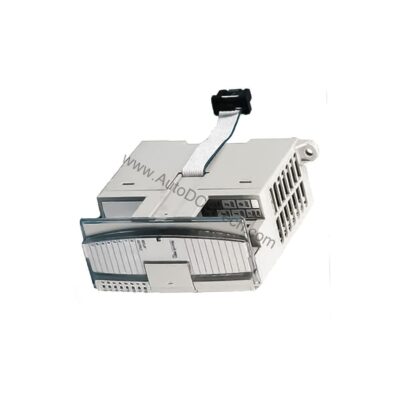

Allen-Bradley 1762-IA8 8-Point AC Input Module for MicroLogix 1200

Product Overview

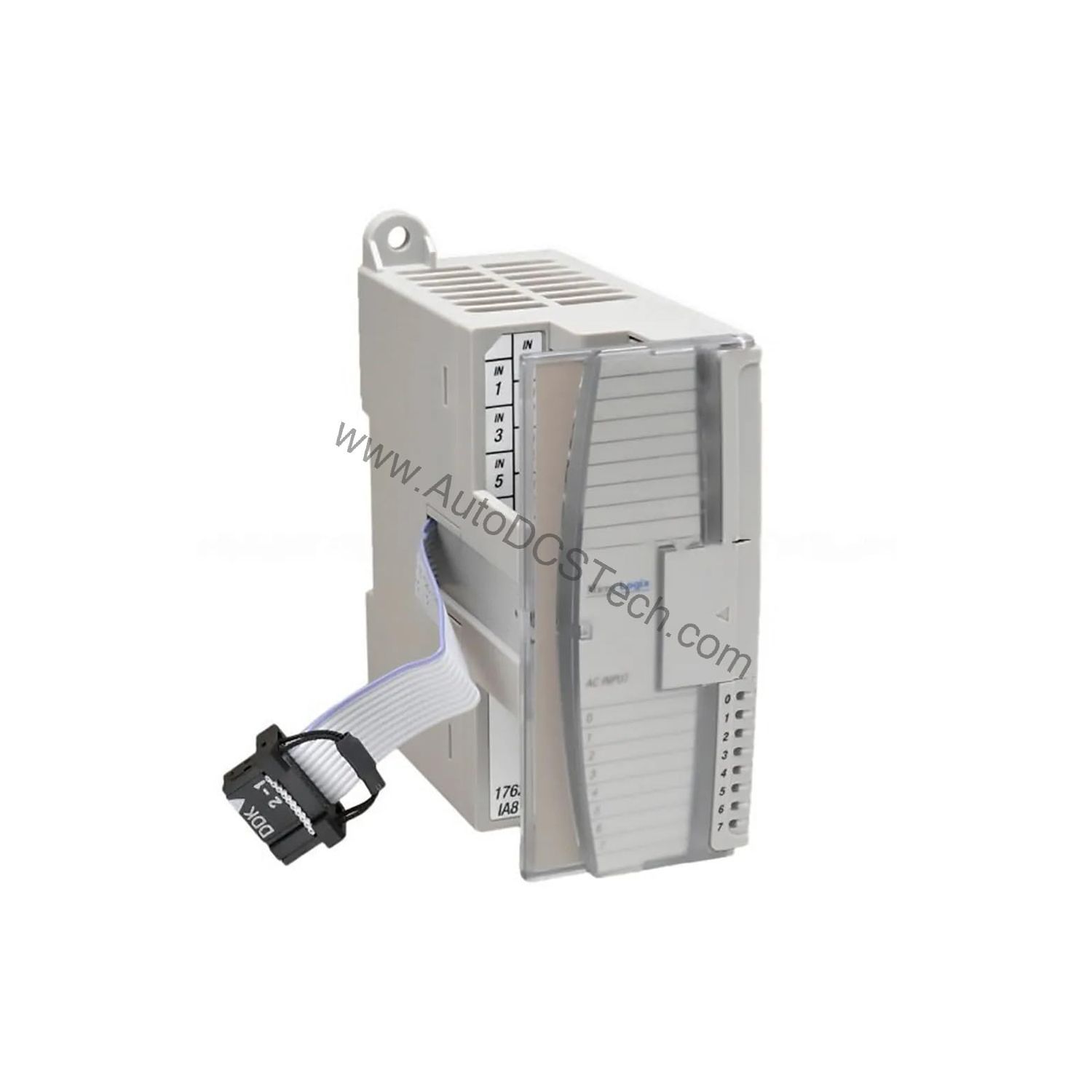

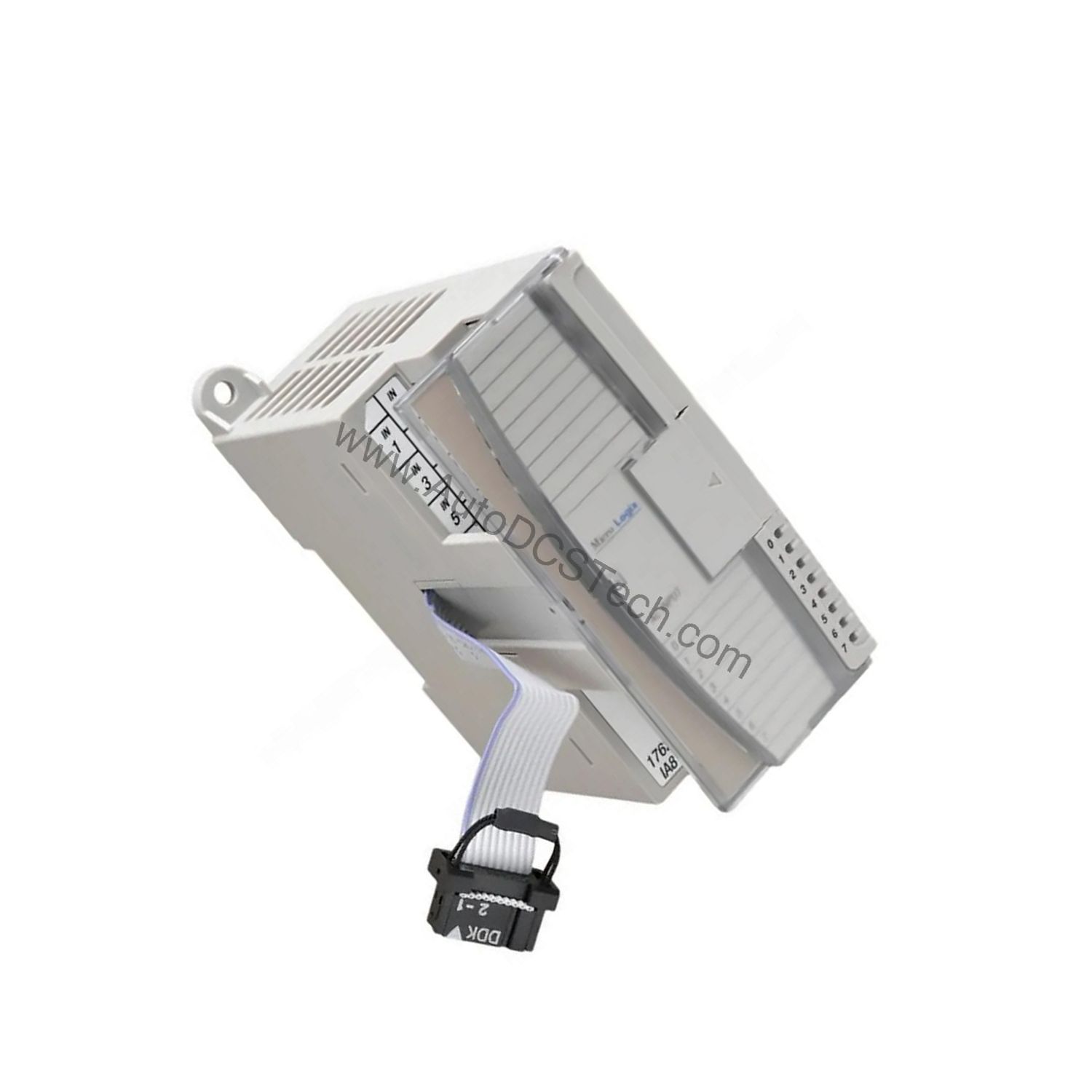

The Allen-Bradley 1762-IA8 is a 120V AC input module from the Bulletin 1762 MicroLogix Expansion I/O series. It extends the I/O capacity of MicroLogix 1200 programmable controller systems. Its modular, rackless design simplifies replacement and reduces inventory costs. Digital and analog I/O modules can be combined flexibly. The unit mounts on a DIN rail or panel with two screws, and includes an integrated I/O bus.

Technical Specifications Breakdown

Key parameters for the 1762-IA8 are listed below for quick reference:

Industry Applications

For example, it can monitor limit switches or proximity sensors on a conveyor belt, ensuring accurate part presence detection. Its compact size allows installation in tight control panels, reducing enclosure costs.

Installation & Setup Guidance

Mount the module horizontally on a DIN rail or directly to a panel using two screws. Ensure the host MicroLogix 1200 power supply is within six module slots distance. Connect 100-120V AC field wiring to the input terminals, observing polarity and torque specifications per the user manual. The module automatically communicates with the controller via the I/O bus after power-up.

Maintenance & Reliability

Periodically inspect the module for dust accumulation and loose connections. The unit operates without active cooling; ensure adequate ventilation in the enclosure. With no moving parts, it offers long-term reliability in typical industrial environments.

Compatibility & Integration

The 1762-IA8 is designed exclusively for MicroLogix 1200 systems. It integrates via the built-in I/O bus, requiring no additional communication modules. It is C-UL certified (under CSA C22.2 No. 142), UL 508-listed, and CE compliant.

Selection Guide & Purchasing Advice

When expanding your MicroLogix 1200 I/O, verify total system power budget and slot distance limits. The 1762-IA8 is available from AutoDCSTech, a trusted supplier of industrial automation parts. Please verify current lifecycle status and availability with AutoDCSTech before ordering.
