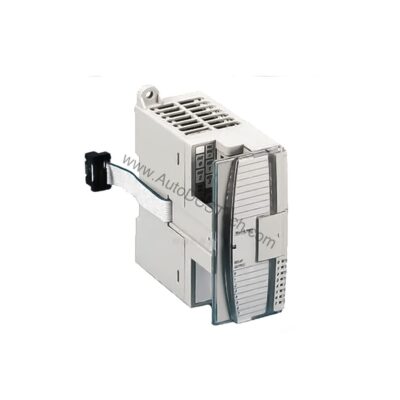

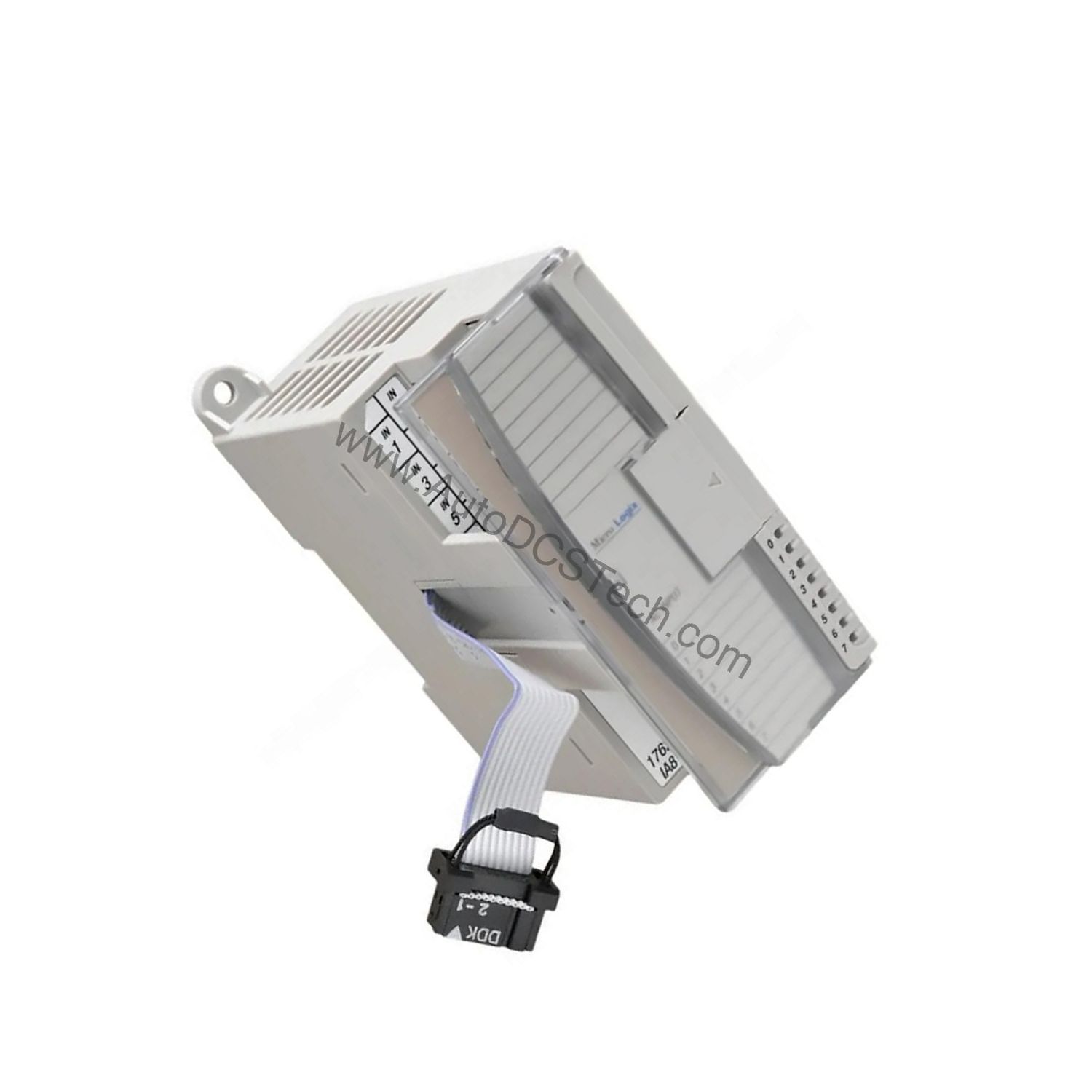

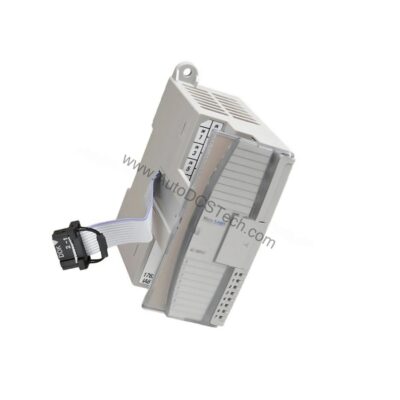

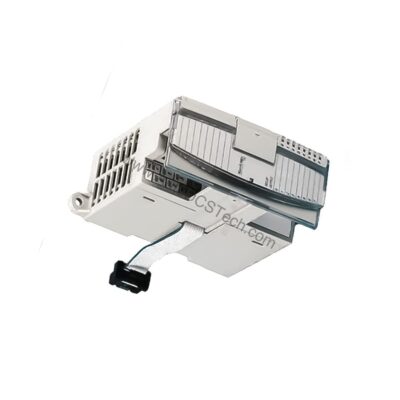

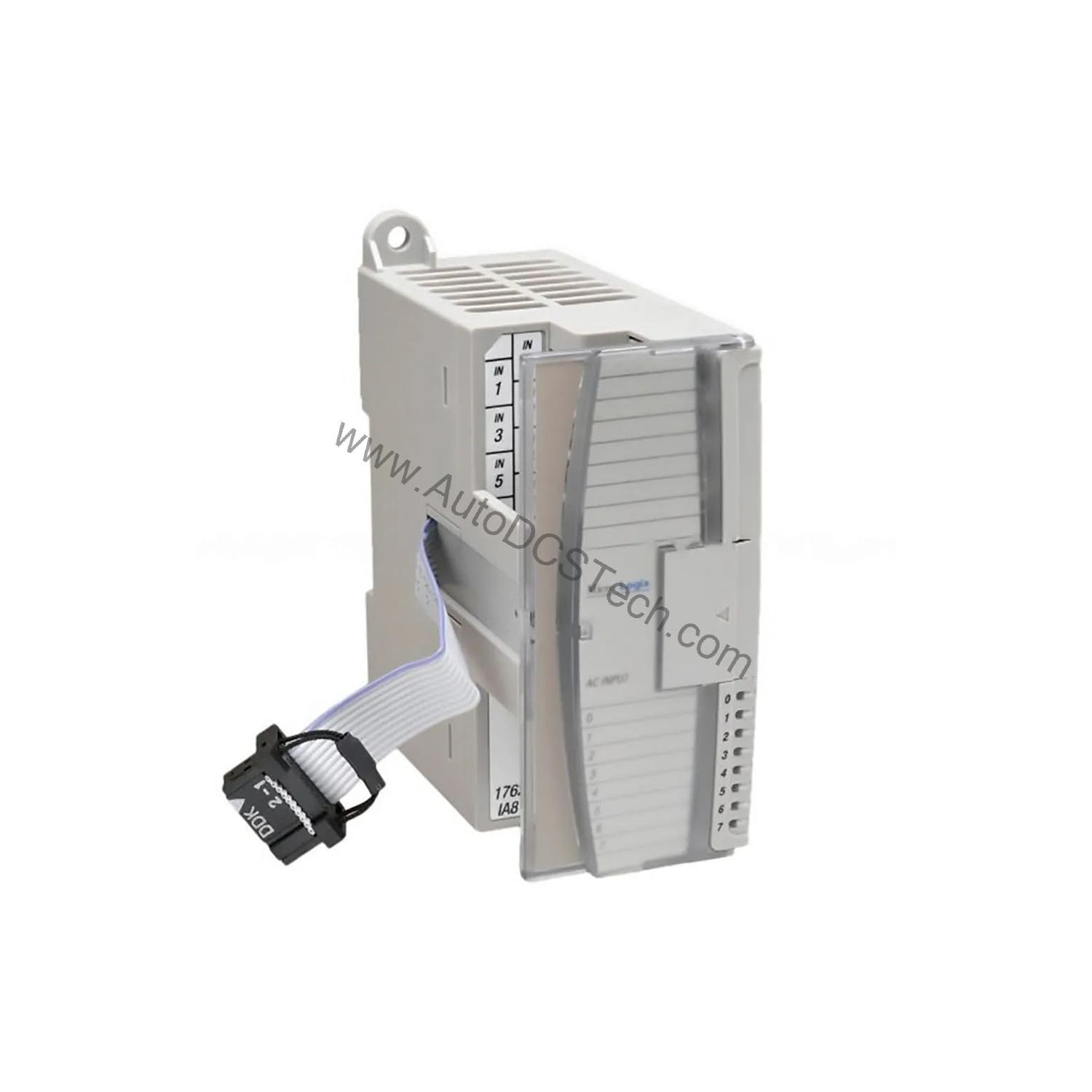

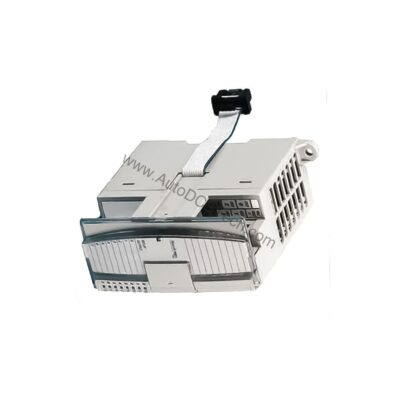

Allen-Bradley 1762-IR4 MicroLogix RTD Resistance Input Module

Product Overview

The Allen-Bradley 1762-IR4 is a dedicated RTD and resistance input module designed for the MicroLogix family of programmable logic controllers. This module provides four channels for interfacing with resistance temperature detectors (RTDs) and resistance-generating devices, making it an essential component for temperature monitoring and displacement measurement applications. As part of the MicroLogix expansion series, it integrates with MicroLogix 1100, 1200, and 1400 controllers to extend their analog input capabilities.

Technical Specifications Breakdown

Key parameters for the 1762-IR4 are listed below for quick reference:

Industry Applications

Temperature Monitoring in Process Control

By interfacing with platinum RTDs (e.g., 100Ω Platinum 385), it delivers accurate readings essential for maintaining product quality and safety. The module's multiple input filter options (10 Hz to 1 kHz) allow engineers to optimize noise rejection based on the environment.

Displacement and Position Sensing

Beyond temperature, this module can monitor resistance changes from devices like potentiometers used in cylinder position feedback or clamping mechanisms. The ability to accept resistance ranges up to 3000Ω makes it versatile for linear displacement transducers. This dual functionality reduces the need for separate modules, lowering overall system cost.

Failure Mode Analysis and Prevention

In high-reliability installations, the 1762-IR4's diagnostic LED and auto-calibration features help detect sensor drift or wiring faults early. Engineers can program the module to recalibrate every 5 minutes, ensuring consistent accuracy. By monitoring channel diagnostics, potential failures in RTD elements or lead wires can be identified before they cause process upsets.

Installation and Setup Guidance

When installing the 1762-IR4, mount it on a DIN rail or panel in a clean, dry, non-hazardous location away from electrical noise and heat sources. The module connects to the MicroLogix controller via the 1762 bus interface, receiving 5V and 24V DC power. Use the finger-safe terminal cover during wiring to prevent accidental contact. For RTD connections, select 2-wire, 3-wire, or 4-wire configuration based on accuracy requirements; 4-wire offers the best lead resistance compensation. Configure each channel's input filter and data format via the controller's programming software after installation. The module uses 6 input words and 5 configuration words.

Maintenance and Reliability

Periodically inspect the module for dust accumulation and ensure the diagnostic LED indicates normal operation. The 1762-IR4 performs self-calibration on channel enable and can be set to recalibrate every 5 minutes. Environmental conditions should remain within standard industrial limits; avoid exposure to moisture or corrosive gases. For safety, always de-energize the system before handling wiring or replacing the module.

Compatibility and Integration

This module is designed exclusively for MicroLogix 1100, 1200, and 1400 controllers. The number of 1762-IR4 modules that can be used depends on the specific controller model's expansion capacity. It supports a wide range of RTD types (platinum, copper, nickel, nickel-iron) and resistance ranges, ensuring broad sensor compatibility. Data formats include raw/proportional, engineering units, scaled-for-PID, and percent full scale, allowing flexible integration into control logic.

Selection Guide and Purchasing Advice

When selecting the 1762-IR4, verify that your MicroLogix controller supports the required number of expansion modules. For applications involving long cable runs, choose 3-wire or 4-wire RTD configurations to minimize lead resistance errors. At AutoDCSTech, we stock this module and can advise on compatibility with your existing system. Please verify current lifecycle status and availability with AutoDCSTech before ordering.

Troubleshooting and Common Issues

If the diagnostic LED does not illuminate, check the bus connection and power supply. Inaccurate readings may indicate incorrect RTD type selection or wiring faults; verify the sensor matches the configured type (e.g., 100Ω Platinum 385). Use the input filter settings to reduce electrical noise interference. If the module fails to communicate, ensure the controller firmware supports this expansion module. Always follow safety procedures: stand clear of equipment during troubleshooting and check for program changes before servicing.
