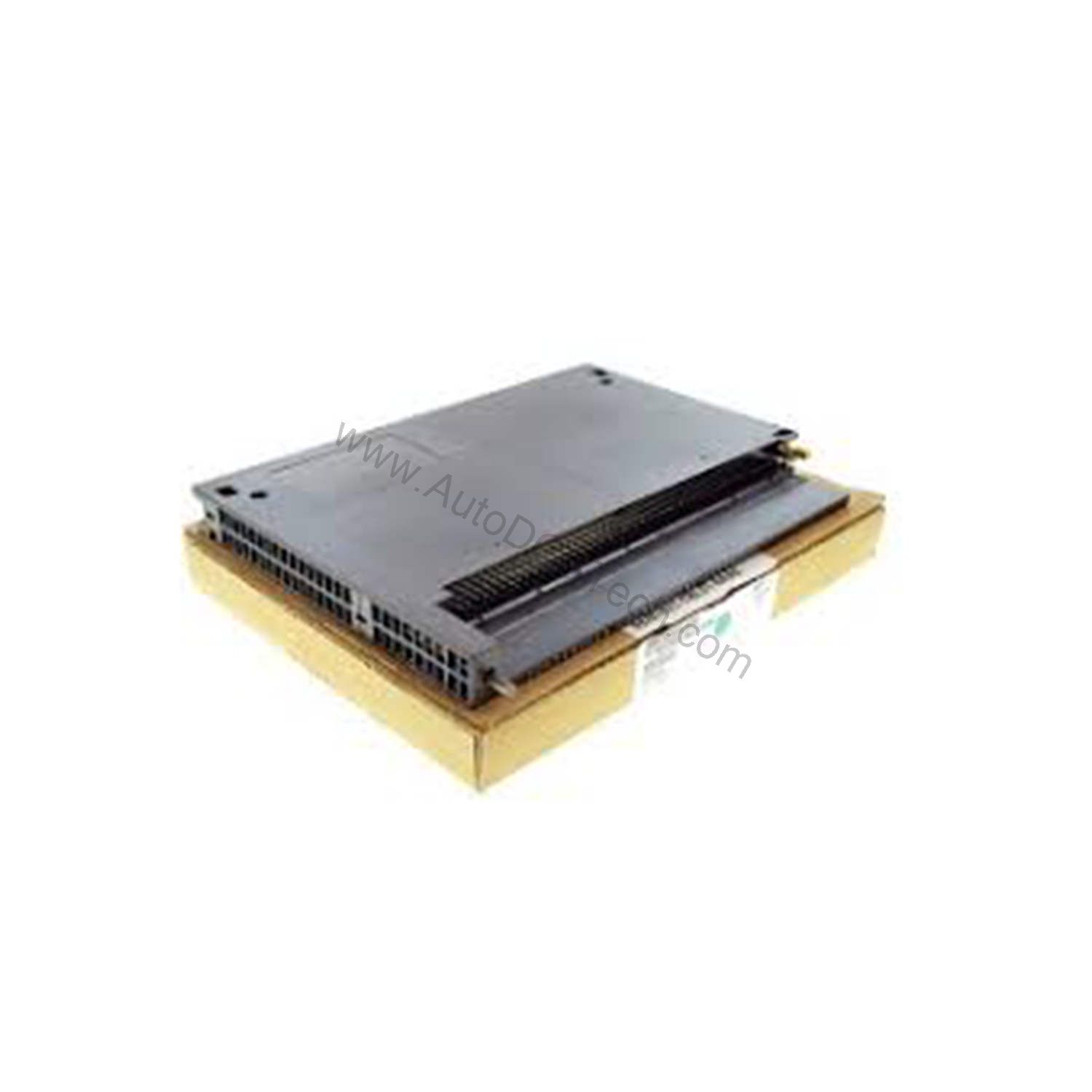

6ES7421-5EH00-0AA0 16-Ch 120V AC Digital Input Module

Introduction to the Siemens 6ES7421-5EH00-0AA0 Digital Input Module

When your control system demands reliable detection of 120V AC signals, the 6ES7421-5EH00-0AA0 from Siemens delivers. This SIMATIC S7-400 SM 421 module provides 16 digital inputs, each rated for 120V AC, with a single common point and optical isolation. Designed for industrial environments, it ensures accurate signal acquisition while protecting your PLC from electrical noise and transients.

Its robust construction and precise engineering make it a dependable choice for applications ranging from discrete manufacturing to process control.

Key Features and Technical Specifications

The 6ES7421-5EH00-0AA0 is built for performance and safety. Below are the core specifications extracted from the official datasheet:

• Part Number: 6ES7421-5EH00-0AA0
• Brand: Siemens
• Series: SIMATIC S7-400 SM 421
• Product Type: Digital Input Module
• Inputs: 16 digital inputs
• Input Voltage: 120V AC
• Common Point: 1 common point
• Isolation: Optically isolated

These specifications ensure that the module can handle standard AC line voltages commonly found in industrial plants. The optical isolation protects the backplane and CPU from potential voltage spikes, enhancing system reliability.

Applications and Use Cases

The 6ES7421-5EH00-0AA0For instance, in material handling systems, it can monitor limit switches and proximity sensors operating at 120V AC. Similarly, in packaging lines, it can track the status of AC-driven actuators and conveyors.

Moreover, because the module offers optical isolation, it is suitable for applications where electrical noise is a concern, such as near variable frequency drives or high-power switching equipment. The single common point simplifies wiring, reducing installation time and potential errors.

Installation and Setup

Installing the 6ES7421-5EH00-0AA0 is straightforward. Mount the module onto an S7-400 rack, ensuring proper seating and locking. Connect the 120V AC field wiring to the terminal block, observing the common point arrangement. Always verify that the power is disconnected before making connections to avoid electrical shock.

For optimal performance, use shielded cables for field wiring and route them away from high-voltage power lines. Refer to the S7-400 installation manual for detailed guidelines on grounding and noise suppression.

Maintenance and Reliability

Routine maintenance of the 6ES7421-5EH00-0AA0 is minimal. Periodically inspect the module for signs of overheating, loose connections, or physical damage. Ensure that the ventilation around the rack is unobstructed to maintain proper cooling.

Because the module uses optical isolation, it is less susceptible to ground loop issues, which enhances long-term reliability. Regularly verify that the input status LEDs (if present) match the expected field device states, as this can indicate early wiring or sensor problems.

Troubleshooting Common Issues

If an input channel fails to respond, first check the field wiring and the sensor's power supply. Confirm that the common point is correctly connected and that the input voltage is within the specified 120V AC range. If the issue persists, test the module in a known-good slot to rule out rack or backplane faults.

Another common issue is false triggering due to electrical noise. Ensure that cables are properly shielded and grounded. The optical isolation helps, but good wiring practices are still essential.

Compatibility and Integration

The 6ES7421-5EH00-0AA0 is designed for the SIMATIC S7-400 PLC system. It is compatible with all S7-400 CPUs and racks that support SM 421 modules. Integration is seamless, as the module is automatically recognized by the S7-400 configuration software.

No special communication protocols are required; the module communicates over the standard S7-400 backplane bus. This ensures straightforward setup and reliable data exchange with the CPU.

Product Support and Availability

The 6ES7421-5EH00-0AA0 is available through AutoDCSTech. We stock this module and can provide technical support to help you integrate it into your system. Contact our team for availability and ordering information.

Please verify the current lifecycle status and availability with AutoDCSTech before ordering, as Siemens may have production changes.

Comparison with Similar Modules

When selecting a digital input module, engineers often compare options. The table below contrasts the 6ES7421-5EH00-0AA0 with typical alternatives in the S7-400 lineup:

In contrast, 24V DC modules require separate power supplies and are better suited for modern solid-state sensors.
