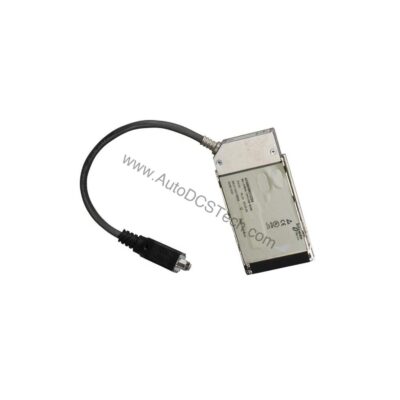

Schneider 416NHM30030 Modbus Plus PCI Adapter Card for Modicon PLCs

Technical Specifications Breakdown

Key parameters for the 416NHM30030 are listed below for quick reference:

Industrial Applications

Connecting Legacy Modicon PLCs to Modern PCs

Many factories still rely on Modicon PLCs for critical control loops. The 416NHM30030 bridges these legacy controllers with contemporary industrial PCs for data logging and HMI visualization. Its single Modbus Plus port provides focused, deterministic communication without network overhead.

Streamlined Packaging Line Integration

In high-speed packaging lines, reliable communication between PLCs and supervisory systems prevents downtime. This adapter card installs directly into a PCI slot, enabling quick data exchange for monitoring throughput and fault detection.

Installation and Setup Guidance

Before installation, ensure the host computer has an available PCI slot and supports plug-and-play enumeration. Power down the system completely. Insert the card firmly into the slot and secure the bracket. After powering on, the operating system should detect the new hardware automatically. Install the appropriate Modbus Plus driver from Schneider Electric. Verify communication by connecting to a Modicon PLC via the single Modbus Plus port.

Maintenance and Reliability

The card operates reliably in environments free of corrosive gases. Inspect the PCI connection and port contacts annually for dust or oxidation. Keep the ambient temperature within 0–50°C to ensure stable performance. No routine calibration is required.

Seamless Modbus Plus Communication for Modicon Systems

Industrial networks often face integration challenges when connecting programmable logic controllers (PLCs) to supervisory systems. The Schneider 416NHM30030 Modbus Plus PCI adapter card eliminates these hurdles by providing a dedicated, reliable interface between Modicon PLCs and industrial PCs. Designed for environments without corrosive gases, this card ensures stable data exchange in automation cells, packaging lines, and process control stations.

Compatibility and Integration

This adapter is designed for Modicon PLCs and industrial PCs. It uses the Modbus Plus protocol for peer-to-peer or master-slave communication. The PCI interface ensures broad compatibility with standard industrial computers. Plug-and-play support simplifies driver installation and system configuration.

Selection Guide and Purchasing Advice

When selecting a communication card for Modicon networks, verify that your host system has a PCI slot and that your PLC supports Modbus Plus. The 416NHM30030 is a compact, cost-effective solution for single-port applications. AutoDCSTech stocks this part for immediate shipment. Please verify current lifecycle status and availability with AutoDCSTech before ordering.
