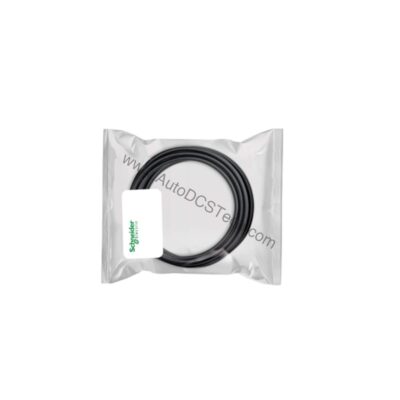

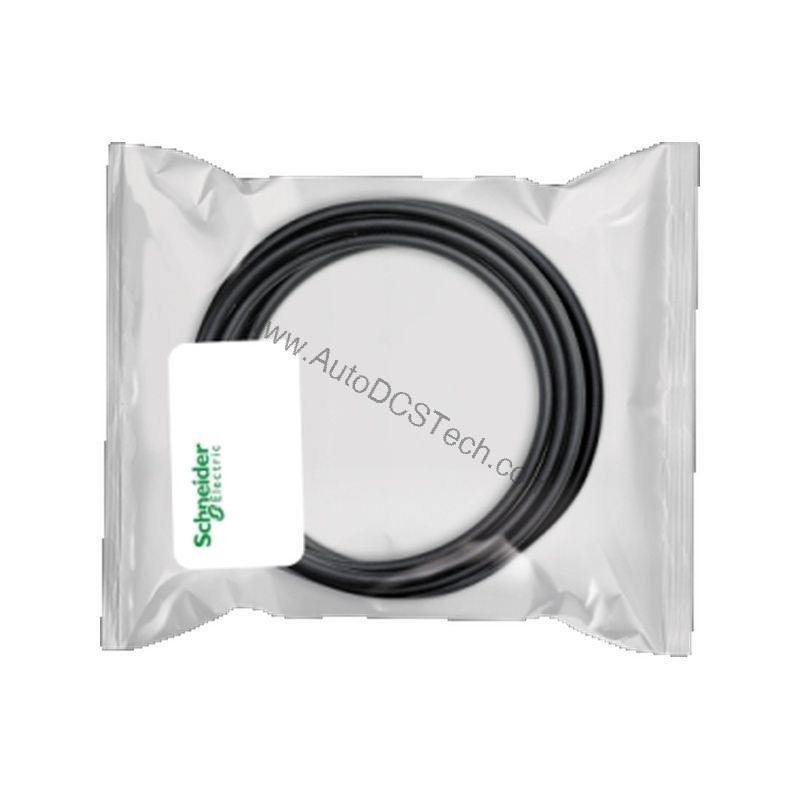

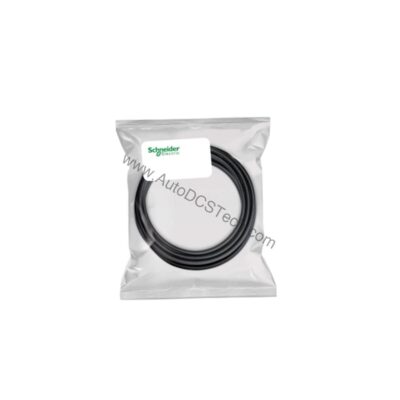

ABFM16S201: Cabled Connector
The ABFM16S201 is the Cabled Connector covered on this page. The attribute that decides whether it fits the existing installation without modification is 6.6 ft (2 m).
On this unit cabled connector is the figure that decides fit and function. An extension or probe cable is specified by length, armor and connector rather than by any processing function. cabled connector is what decides whether the run reaches the junction box and mates with the existing probe and monitor. Checking 6.6 ft (2 m) against the original cable route avoids a cable that fits the connector but leaves the run short or mismatched.
| Feature | Specification |
|---|---|
| Manufacturer | Schneider Electric |
| Brand | Schneider |
| Part Number | ABFM16S201 |
| Product Type | Cabled Connector |
| Product Line | Modicon Quantum |
| Part Number | ABFM16S201 |
| EAN | 3389110956580 |
| Number of Channels | 16 |
| Cable Length | 6.6 ft (2 m) |
| Signal Type | Analogue Input |
| Electrical Connection | 2 Connectors |
| AWG Gauge | AWG 24 |
| Connector Type | SUB-D |
| Wire Section | 0.22 mm² |
| Number of Ways | 25 Ways |
| Operating Temperature Range | –20 °C to +60 °C |
| Insulation Material | PVC |
| Cable Construction | Multi-conductor Shielded Cable |
| Current Rating | 1A |
| Voltage Rating | 250 V |
| Net Weight | 1.37 lb(US) (0.62 kg) |
Related Configurations
Other published configurations in the same family — confirm the distinguishing specification against your installation:
| Related Part Number | Configuration Difference |
|---|---|
| schneider-abfm16h300-modicon-quantum-cabled-connector-16-channel-relay-i-o | confirm the configuration against your installation |
| schneider-abfm16h301-cabled-connector-for-modicon-quantum-plc-systems | confirm the configuration against your installation |
· Last updated:
Availability & Condition at AutoDCSTech
| Part Number | ABFM16S201 |
|---|---|
| Availability | In Stock |
| Condition | New |
| Warranty | One Year |
| Origin | France |
