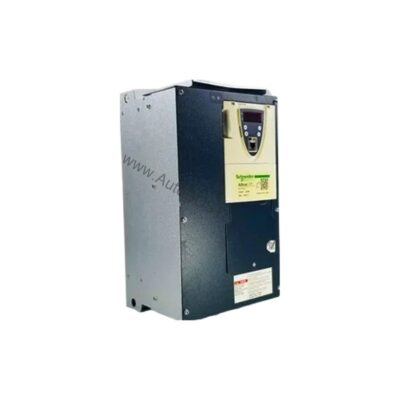

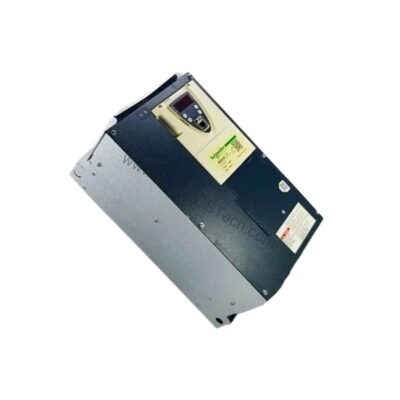

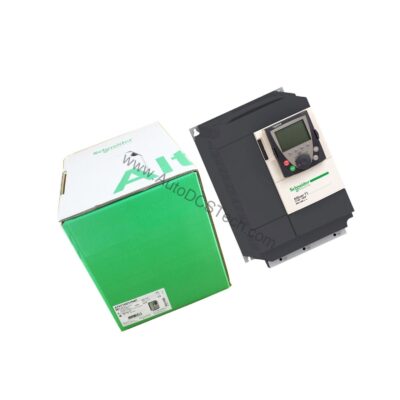

Schneider ATV71HD15N4Z Altivar 71 15 kW Variable Speed Drive for Industrial Automation

Technical Specifications Breakdown

Key parameters for the ATV71HD15N4Z are listed below for quick reference:

Industrial Applications: Reliability in Action

This drive is designed for complex, high-power machines such as conveyors, pumps, fans, and compressors. Its sensorless flux vector control (SFVC) and flux vector control (FVC) with encoder feedback ensure accurate speed and torque regulation, critical for processes requiring consistent performance. The integrated EMC filter helps meet electromagnetic compatibility standards, reducing interference in sensitive environments.

Installation & Setup Guidance

Mount the ATV71HD15N4Z vertically within +/-10 degrees for optimal cooling. Use shielded cable up to 50 m or unshielded up to 100 m for motor connections. Ensure the input power supply is within 323-528 V AC limits. The unit supports Modbus and CANopen communication via RJ45 and SUB-D connectors, simplifying integration into existing control systems.

Maintenance & Reliability

Regularly inspect the fan and heat sink for dust buildup to maintain cooling efficiency. Operate within ambient temperatures of -10 to 50°C without derating. The IP20 enclosure protects against solid objects; ensure the environment is free from excessive moisture or conductive dust.

Robust Motor Control for Demanding Industrial Environments

The Schneider Electric ATV71HD15N4Z is a variable speed drive from the Altivar 71 series, engineered for precise control of complex, high-power machinery. This unit delivers a power output of 15 kW (20 HP) and operates on a 380-480V AC, three-phase supply, making it a reliable choice for heavy industrial automation tasks. With an IP20 rating and fan-cooled design, it is built for indoor use where protection from solid objects larger than 12.5 mm is required.

Compatibility & Integration

This drive supports multiple communication protocols including Modbus and CANopen. It is compatible with various option cards such as DeviceNet, EtherNet/IP, Profibus DP, and encoder interface cards, allowing flexible integration into diverse automation architectures.

Selection Guide & Purchasing Advice

When selecting the ATV71HD15N4Z, verify the motor power rating (15 kW) and voltage requirements. Contact AutoDCSTech for lifecycle status and availability before ordering.

Troubleshooting & Common Issues

If the drive fails to start, check the power supply voltage and phase integrity. The red LED on the drive indicates voltage presence. For communication issues, verify Modbus or CANopen settings and cable connections. Overheating may require cleaning the fan or reducing ambient temperature.
