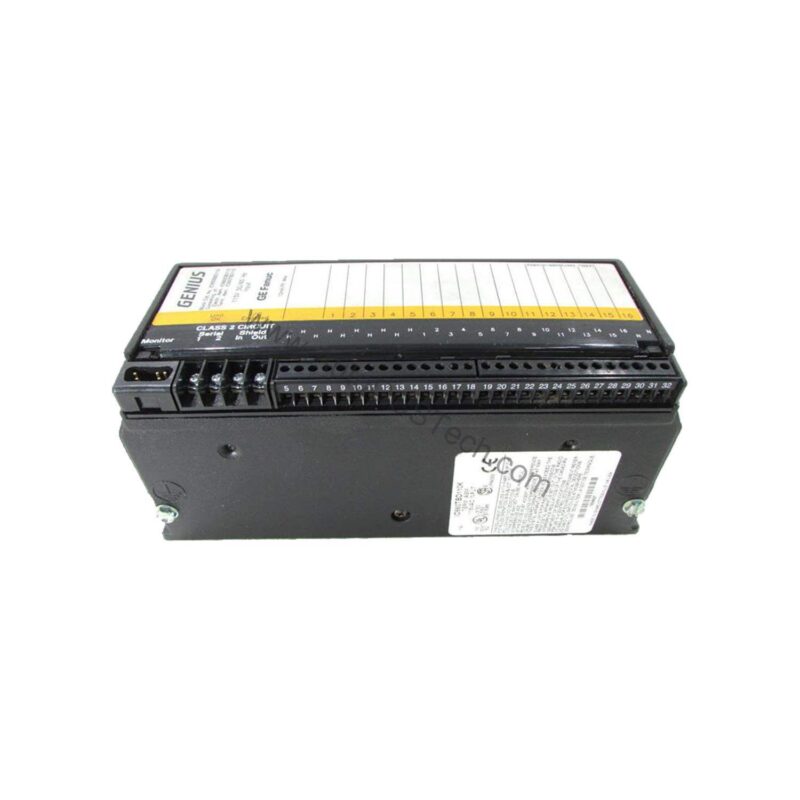

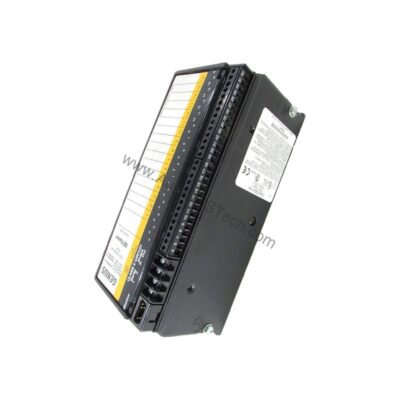

IC660BBD110: Discrete Input Block
The IC660BBD110 is the Discrete Input Block covered on this page. The attribute that decides whether it fits the existing installation without modification is 32 to 140 degrees Fahrenheit.
On this unit discrete input block is the figure that decides fit and function. On a rack I/O module the configuration that matters is the one that decides whether the unit drops into the existing slot and speaks the existing signal. discrete input block sets channel count, voltage or current class and isolation behaviour — the three things that decide compatibility with the backplane, the field wiring and the rest of the I/O. Matching 32 to 140 degrees Fahrenheit against the rack rather than a generic datasheet avoids a module that installs but does not interface.
| Feature | Specification |
|---|---|
| Manufacturer | GE Fanuc / GE Intelligent Platforms |
| Brand | GE |
| Part Number | IC660BBD110 |
| Series | Genius Block I/O |
| Part Number | IC660BBD110 |
| Module Type | Discrete input block I/O |
| Input Voltage Range | 93-132 VAC |
| Nominal Input Voltage | 115VAC |
| Input Current | 80mA max. block current plus 200mA max. input circuit current |
| Number of Points | Sixteen (16) |
| Input Off State, Input On State | Programmable threshold (25% to 85%) |
| Input Shorted Wire | Fixed 10%-90% thresholds |
| Selectable Input Filter Times | 10 to 100ms in 10ms increments |
| Input Diagnostics | Open Wire, Short Circuit |
| Input to Ground or Serial Bus Isolation | 1500V |
| Product Type | Discrete Input Block |
| Number of Inputs | 16 |
| Number of Outputs | None |
| Voltage Type | AC |
| Operating Temperature | 32 to 140 degrees Fahrenheit |
| Storage Temperature | -40 to 212 degrees Fahrenheit |
| Fault Detection | Short Wire Faults and Open Wire Faults |
Related Configurations
Other published configurations in the same family — confirm the distinguishing specification against your installation:
| Related Part Number | Configuration Difference |
|---|---|
| ge-fanuc-ic660bbd100-115-vac-8-circuit-grouped-i-o-block | confirm the configuration against your installation |
| ge-ic660bbd101-genius-i-o-discrete-block-115vac-8-circuit | confirm the configuration against your installation |
| ge-ic660bbd120-high-speed-counter-block-module-for-genius-i-o | confirm the configuration against your installation |
Availability & Condition at AutoDCSTech
| Part Number | IC660BBD110 |
|---|---|
| Availability | In Stock |
| Condition | New |
| Warranty | One Year |
| Origin | US |
