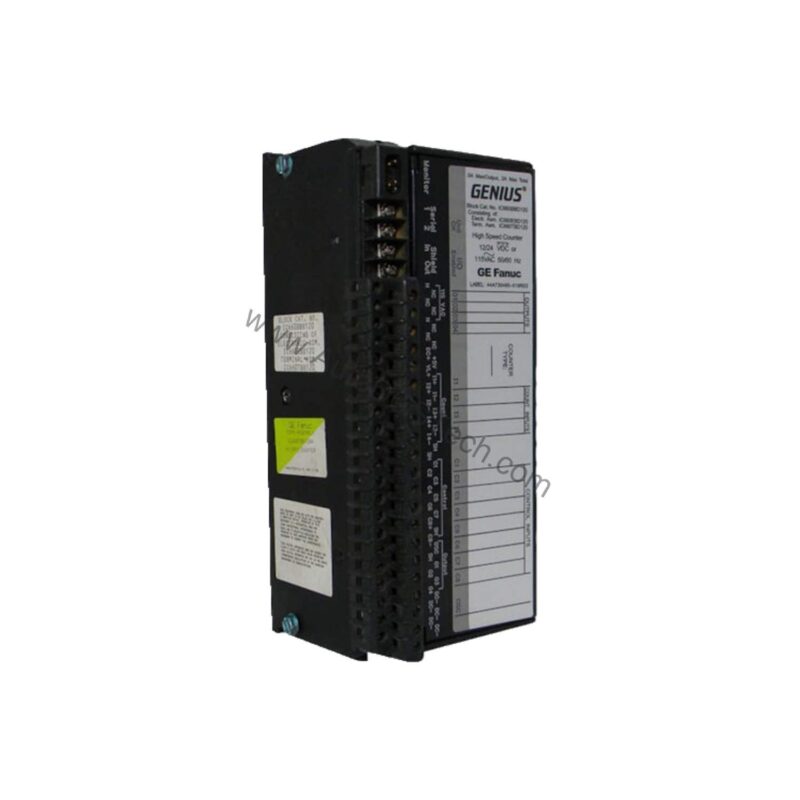

IC660BBD120: High-Speed Counter Block
The IC660BBD120 is the High-Speed Counter Block covered on this page. The attribute that decides whether it fits the existing installation without modification is 0 °C to 60 °C.
On this unit high-speed counter block is the figure that decides fit and function. On a rack I/O module the configuration that matters is the one that decides whether the unit drops into the existing slot and speaks the existing signal. high-speed counter block sets channel count, voltage or current class and isolation behaviour — the three things that decide compatibility with the backplane, the field wiring and the rest of the I/O. Matching 0 °C to 60 °C against the rack rather than a generic datasheet avoids a module that installs but does not interface.
| Feature | Specification |
|---|---|
| Manufacturer | GE Fanuc / GE Intelligent Platforms |
| Brand | GE |
| Part Number | IC660BBD120 |
| Series | Genius I-O |
| Part Number | IC660BBD120 |
| Product Type | High-Speed Counter Block |
| Number of Inputs | 12 |
| Input Voltage Range | 5 VDC to 30 VDC |
| Input Frequency | 200 kHz |
| Number of Outputs | 4 |
| Output Voltage | 4.75 VDC to 5.25 VDC |
| Output Current | 0.5 A |
| Oscillator Output | 3.8 V @ 4.0 mA |
| Operating Temperature | 0 °C to 60 °C |
| Storage Temperature | -40 °C to 100 °C |
| Humidity | 5-95% non-condensing |
| Communication Protocol | Genius Protocol |
| Dimensions | 8.83" x 3.50" x 3.94". |
Related Configurations
Other published configurations in the same family — confirm the distinguishing specification against your installation:
| Related Part Number | Configuration Difference |
|---|---|
| ge-fanuc-ic660bbd100-115-vac-8-circuit-grouped-i-o-block | confirm the configuration against your installation |
| ge-ic660bbd101-genius-i-o-discrete-block-115vac-8-circuit | confirm the configuration against your installation |
| ge-fanuc-ic660bbd110-16-point-discrete-input-block-for-genius-i-o | confirm the configuration against your installation |
Availability & Condition at AutoDCSTech
| Part Number | IC660BBD120 |
|---|---|
| Availability | In Stock |
| Condition | New |
| Warranty | One Year |
| Origin | US |
