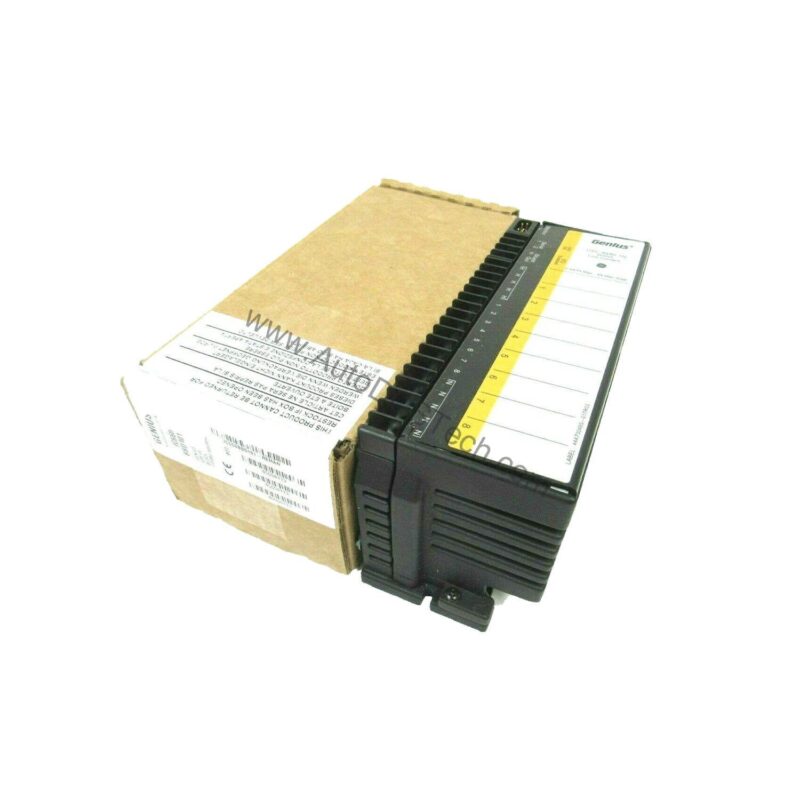

IC660BBD101: Discrete I/O Block
The IC660BBD101 is the Discrete I/O Block covered on this page. The attribute that decides whether it fits the existing installation without modification is 8.83" x 3.50" x 3.94" (22.44cm x 8.89cm x 10.00cm).
On this unit discrete i/o block is the figure that decides fit and function. On a rack I/O module the configuration that matters is the one that decides whether the unit drops into the existing slot and speaks the existing signal. discrete i/o block sets channel count, voltage or current class and isolation behaviour — the three things that decide compatibility with the backplane, the field wiring and the rest of the I/O. Matching 8.83" x 3.50" x 3.94" (22.44cm x 8.89cm x 10.00cm) against the rack rather than a generic datasheet avoids a module that installs but does not interface.
| Feature | Specification |
|---|---|
| Manufacturer | GE Fanuc / GE Intelligent Platforms |
| Brand | GE |
| Part Number | IC660BBD101 |
| Series | Genius I/O |
| Part Number | IC660BBD101 |
| Product Type | Discrete I/O Block |
| Number of Circuits | 8 |
| Nominal Voltage | 115 VAC |
| Operating Voltage | 93-132 VAC |
| Frequency | 47 to 63 Hertz |
| Communication Protocol | Genius Protocol |
| Dimensions | 8.83" x 3.50" x 3.94" (22.44cm x 8.89cm x 10.00cm) |
| Weight | 4 lbs |
| Input Response Time | 2msec plus configurable filter |
| Output Response Time | Zero crossing |
| Filter Time | 10 to 100mS |
| Block to Block Isolation | 1500V for one minute |
| LEDs | Unit OK, I/O Enabled |
Related Configurations
Other published configurations in the same family — confirm the distinguishing specification against your installation:
| Related Part Number | Configuration Difference |
|---|---|
| ge-fanuc-ic660bbd100-115-vac-8-circuit-grouped-i-o-block | confirm the configuration against your installation |
Availability & Condition at AutoDCSTech
| Part Number | IC660BBD101 |
|---|---|
| Availability | In Stock |
| Condition | New |
| Warranty | One Year |
| Origin | US |
