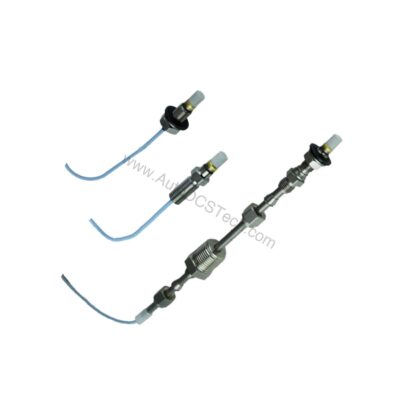

83387-065 65 Inch Hardline Cable for Bently Nevada

Introduction: The Evolution of Industrial Sensing Connectivity

For decades, industrial rotating machinery monitoring has relied on robust cabling to carry critical vibration signals from sensors to monitoring systems. In harsh environments—where temperatures soar, chemicals attack, and mechanical stress is constant—standard cables fail, leading to costly downtime and unreliable data. The 83387-065 from Bently Nevada represents a significant step forward in this evolution, offering a hardline cable solution engineered for the most demanding applications.

This 65-inch hardline cable is designed specifically for accelerometer interface modules, providing a mineral-insulated, twisted shielded pair construction that ensures signal integrity even in extreme conditions. With its stainless steel overbraid and high-temperature connectors, the 83387-065 is built to survive where conventional cables cannot.

Key Features & Technical Specifications

The 83387-065 hardline cable is distinguished by its robust construction and precise engineering. Below are the core specifications that define its performance:

• Length: 65 inches (exact part number suffix -065)
• Accelerometer Mating Connector: Mates to MS 3100R-10SL-4P receptacle with a Viton insert
• Disconnect Interface Mating Connector: Mates to MS 3106-10SL-4S
• Cable Construction: Twisted shielded pair with mineral insulation, protected by a stainless steel overbraid
• Operating Temperature (Cable): -65°F to +1200°F (-54°C to +649°C)
• Operating Temperature (Connectors): -65°F to +800°F (-54°C to +427°C)

Applications & Use Cases

The 83387-065 is primarily used in industrial rotating machinery monitoring, connecting accelerometers to interface modules in systems such as turbines, compressors, and pumps. Its high-temperature rating allows installation in close proximity to hot surfaces, such as engine casings or exhaust systems, where ambient temperatures can exceed conventional cable limits. Furthermore, the stainless steel overbraid provides mechanical protection against abrasion and impact, ensuring long-term reliability in rugged industrial settings. This cable is particularly suited for retrofit projects where existing cabling has failed due to heat or mechanical stress.

Installation & Setup

Proper installation is critical to maximizing the performance of the 83387-065. Begin by routing the cable away from sharp edges and excessive heat sources, even though the cable is rated for high temperatures, to avoid unnecessary stress. Ensure that the connectors are securely mated to the respective receptacles—MS 3100R-10SL-4P for the accelerometer and MS 3106-10SL-4S for the disconnect interface. Avoid bending the cable beyond its minimum bend radius, as this can damage the mineral insulation. Finally, verify that all connections are tight and that the cable is properly secured to prevent vibration-induced wear.

Maintenance & Reliability

Thanks to its mineral insulation and stainless steel overbraid, the 83387-065 requires minimal maintenance. However, periodic inspection is recommended to check for physical damage, such as cuts, kinks, or abrasion on the overbraid. Also, verify that the connectors remain clean and free of corrosion, especially in humid or chemical-laden environments. The cable's robust design minimizes the risk of signal degradation over time, ensuring consistent monitoring data and reducing the likelihood of unexpected failures.

Troubleshooting & Common Issues

If signal loss or intermittent readings occur, first inspect the cable for visible damage. Check that both connectors are fully seated and locked. If the cable has been subjected to extreme temperatures beyond its rating, the mineral insulation may be compromised, leading to short circuits or open circuits. In such cases, replacement of the 83387-065 is the most reliable solution. Always refer to the Bently Nevada documentation for detailed troubleshooting procedures.

Product Support & Availability

The 83387-065 is available as new, original factory-packed inventory. For pricing, lead times, and technical support, contact AutoDCSTech, your trusted industrial automation parts supplier.
