89477-15 15 ft Bently Nevada Interconnect Cable

Introduction to the 89477-15 Bently Nevada Interconnect Cable

When signal integrity matters in industrial monitoring, the 89477-15 from Bently Nevada provides a dependable link. This interconnect cable is engineered for use with Bently Nevada systems, ensuring accurate data transfer between components. With a 15 ft length, it suits many installation layouts.

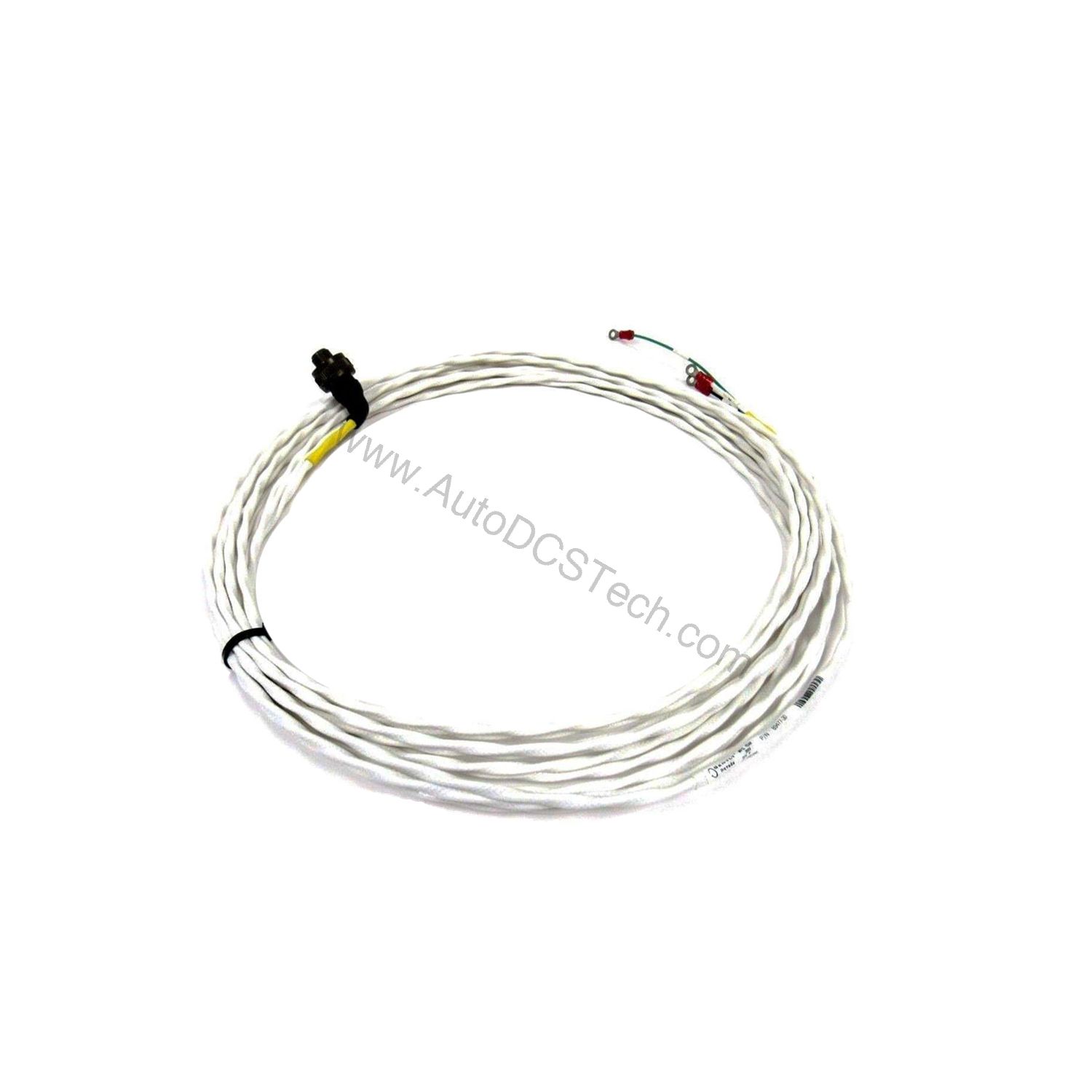

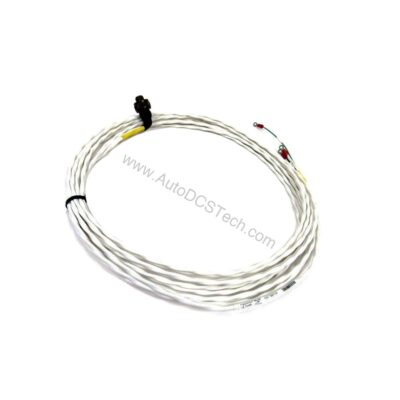

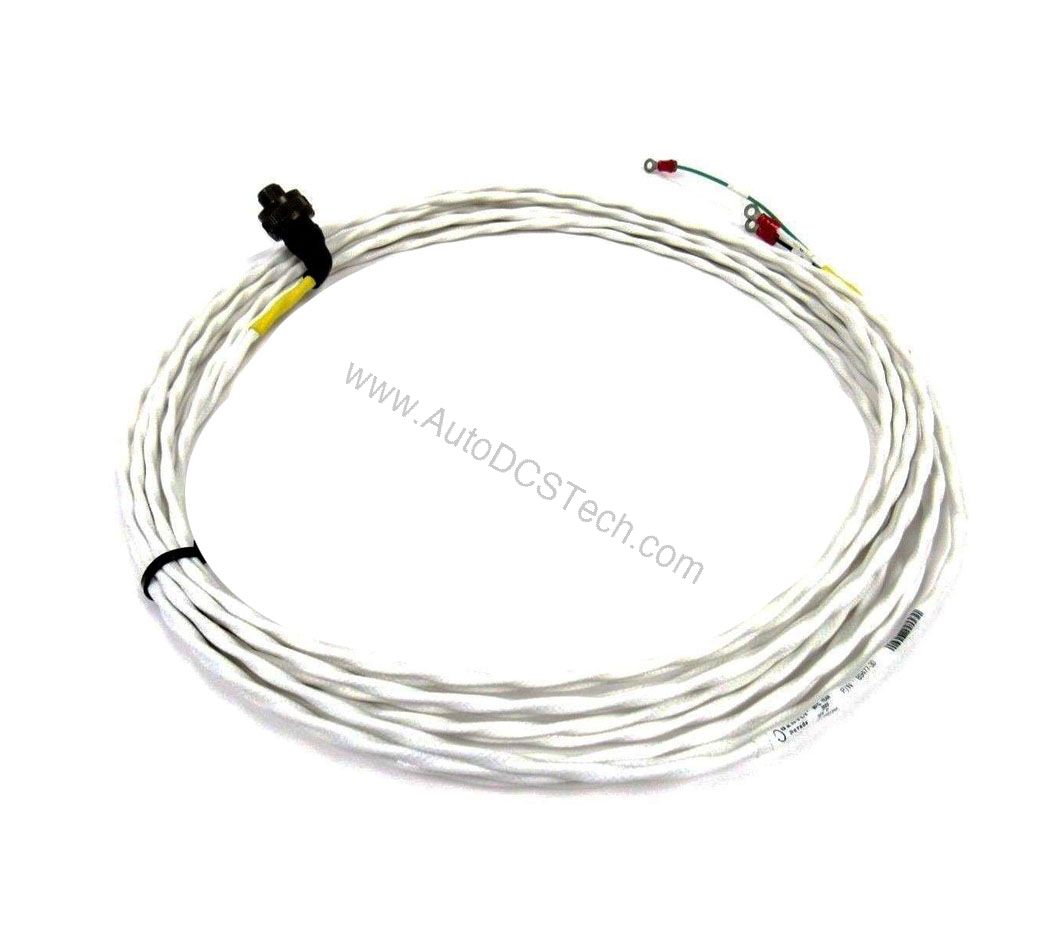

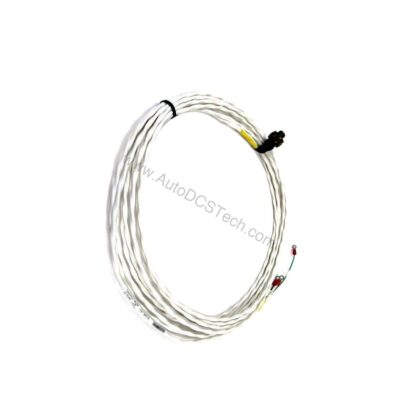

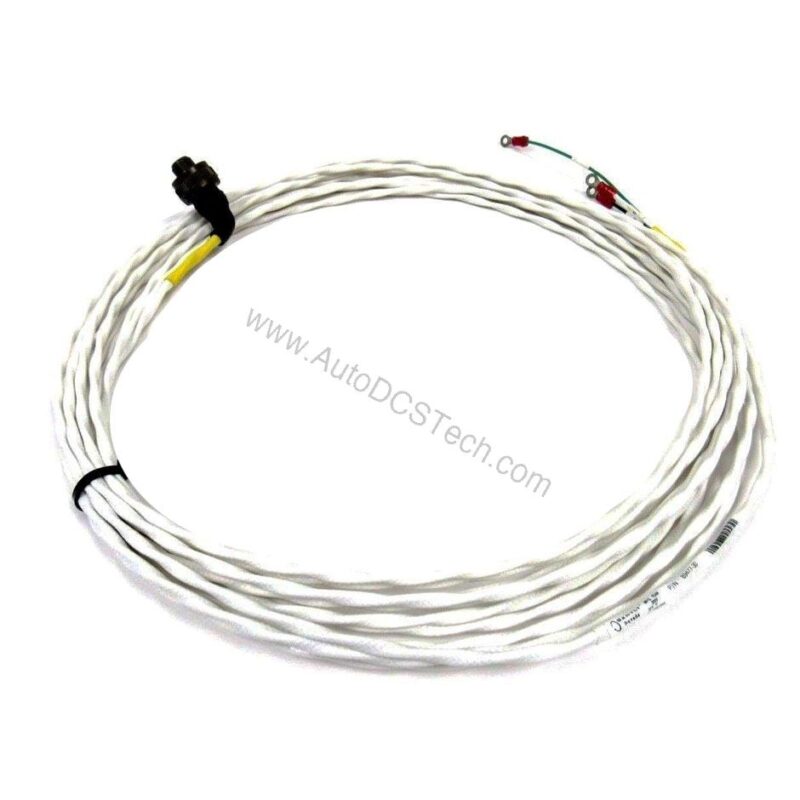

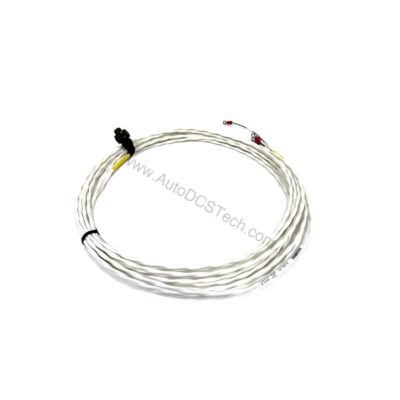

Part of the 89477 model family, this cable is built with two conductors of 18 AWG, twisted and shielded. The shielding helps reduce electromagnetic interference, which is critical in noisy industrial environments. The cable comes with a right-angle two-socket plug at one end and terminal lugs at the other, simplifying connections.

For engineers seeking a reliable replacement or new installation, the 89477-15 offers a straightforward solution. Its construction prioritizes durability and signal quality, making it a practical choice for various monitoring applications.

Key Features and Technical Specifications

The 89477-15 is defined by its precise specifications, which ensure compatibility and performance. Below are the core parameters:

• Model: 89477 Interconnect Cable
• Brand: Bently Nevada
• Length: 15 ft (as indicated by the -15 suffix)
• Conductor: Two-conductor, 18 AWG, twisted
• Shielding: Shielded cable for noise reduction
• Connector 1: Right-angle two-socket plug
• Connector 2: Terminal lugs
• Minimum Length: 2.0 ft (0.6 m)
• Maximum Length: 99 ft (30 m)

The 18 AWG twisted pair construction is a distinctive feature, as it helps maintain signal integrity over the cable run. The shielding adds an extra layer of protection against electrical noise, which is essential for accurate measurements.

Installation and Setup

Installing the 89477-15 is straightforward. First, ensure the equipment is powered down to avoid any electrical hazards. Connect the right-angle plug to the sensor or module, and attach the terminal lugs to the corresponding terminals. Secure the connections firmly, but avoid over-tightening the lugs.

Route the cable away from high-voltage lines or sources of electromagnetic interference. If the cable must cross such areas, use additional shielding or conduit. The right-angle plug helps in confined spaces, but verify the bend radius is not exceeded to prevent damage.

Maintenance and Reliability

Regular inspection of the 89477-15 is recommended to ensure long-term reliability. Check the cable for cuts, abrasions, or signs of wear, especially at connection points. Verify that the terminal lugs remain tight and free of corrosion. The shielding should remain intact to preserve signal quality.

Environmental factors such as temperature, moisture, and vibration can affect cable performance. Although the cable is designed for industrial use, periodic checks help prevent unexpected failures. Following the manufacturer's guidelines for inspection intervals is advisable.

Buyer's Guide: Evaluating the 89477-15 for Your Needs

When selecting an interconnect cable, consider the following factors to ensure it meets your requirements:

Length Requirements

The 89477-15 provides a 15 ft length, which is suitable for many installations. However, if you need a different length, the 89477 model supports lengths from 2.0 ft (0.6 m) up to 99 ft (30 m). This flexibility allows you to choose the exact length for your setup.

Connector Compatibility

This cable features a right-angle two-socket plug on one end and terminal lugs on the other. Verify that these connectors match your equipment's input and output points. The right-angle plug is useful in tight spaces where a straight plug might not fit.

Signal Integrity

The twisted, shielded design is engineered to minimize interference. In industrial environments with motors, drives, or other electrical noise sources, this construction helps maintain signal quality. If your application demands high accuracy, this cable is a solid choice.

Availability and Support

The 89477-15 is available as a new, original product in factory packing. AutoDCSTech supplies this cable with a 12-month factory warranty. For ordering or technical questions, contact AutoDCSTech for prompt assistance.
