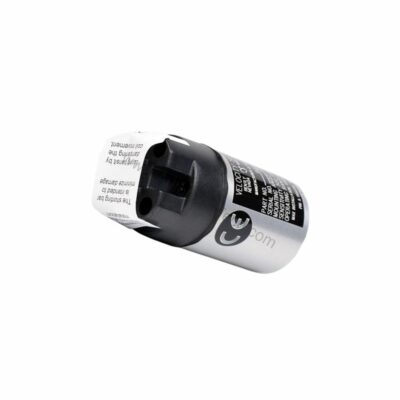

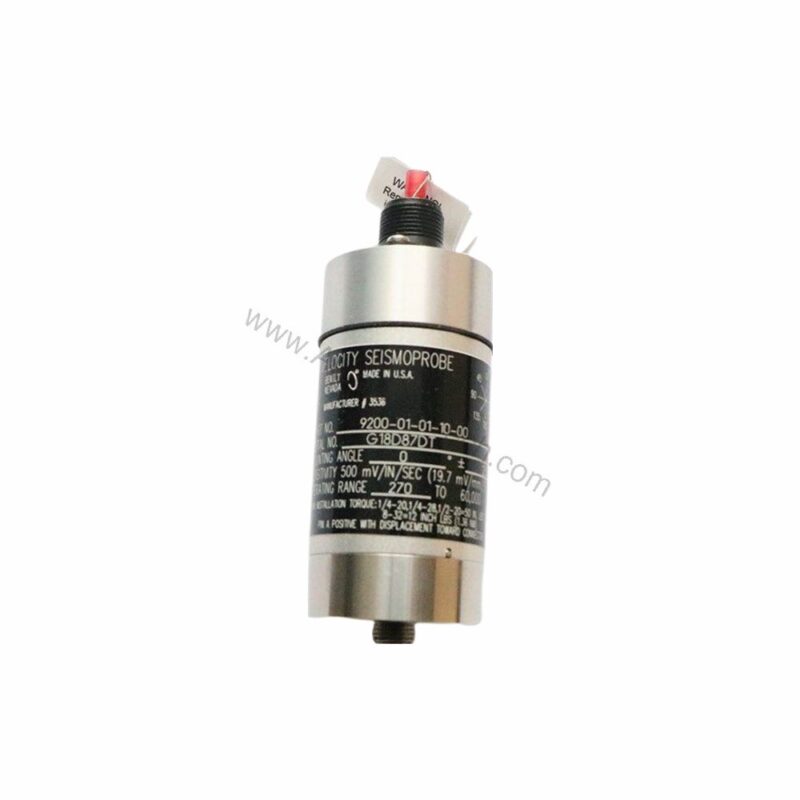

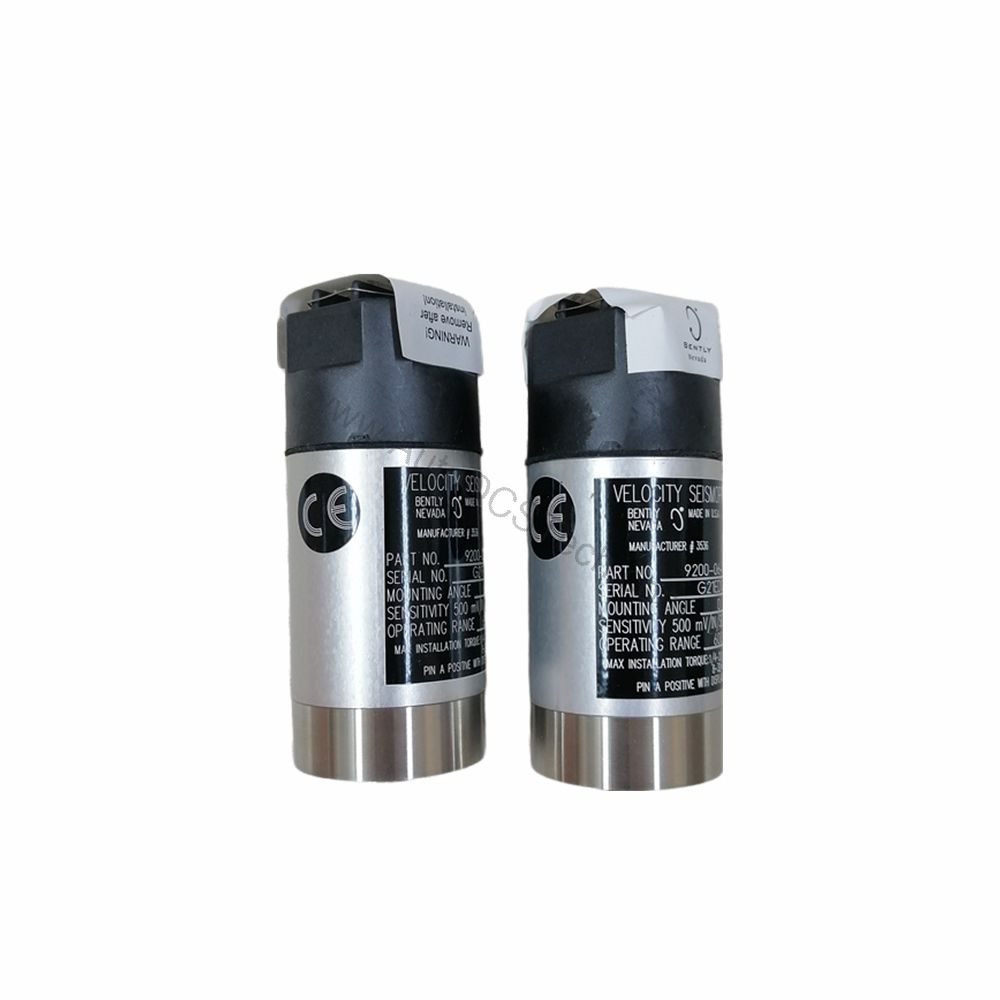

9200-06-02-05-00 Bently Nevada Two-Wire Velocity Seismoprobe Transducer

Introduction to the 9200-06-02-05-00

When you need precise vibration measurement in demanding industrial environments, the 9200-06-02-05-00 from Bently Nevada delivers. This two-wire velocity seismoprobe transducer is engineered for accurate displacement and velocity monitoring. It provides a direct, reliable signal for your protection and condition monitoring systems.

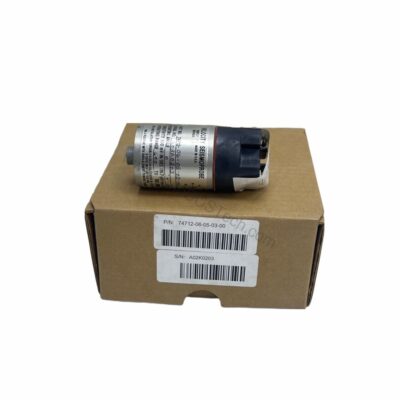

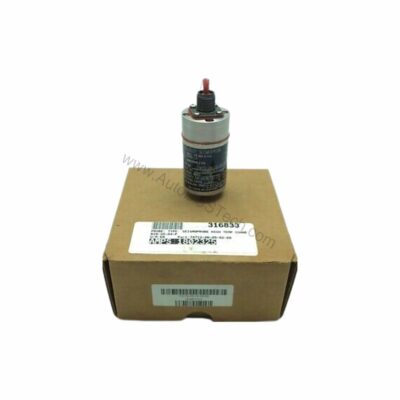

The 9200-06-02-05-00 is a new, original unit in factory packing. It comes with a 12-month factory warranty. This transducer is a key component for machinery health monitoring, helping you detect issues before they become costly failures.

Key Features and Technical Specifications

The 9200-06-02-05-00 is designed with specific parameters to meet rigorous industrial requirements. Here are the core specifications you can rely on:

• Model: Two-Wire Velocity Seismoprobe Transducer
• Sensitivity: 20 mV/mm/s (500 mV/in/s), ±5% when properly terminated and oriented at the angle of calibration.
• Dynamic Operating Range: 2.54 mm (0.100 in) peak-to-peak maximum displacement.
• Velocity Range: 25 mm/s (1 in/s) at +22 °C casing vibration at 100 Hz with a 10 kΩ load.
• Coil Resistance: 1.25 kΩ ±5%
• Locked Coil Inductance: 125 mH, typical
• Temperature Range: -29°C to +121°C (-20°F to +250°F) for the 9200 model.
• Relative Humidity: Up to 95%, noncondensing; 100% non-submerged when ordered with integral cable.
• Case and Adapter Material: Anodized aluminum A204
• Gasket Material: Neoprene
• Height: 102 mm (4 in) typical (depending on connector option).
• Diameter: 41 mm (1.6 in) typical.
• Weight: 300 grams (10.5 ounces) typical.

One distinctive spec is the sensitivity of 20 mV/mm/s. This ensures that even small velocity changes are captured with high fidelity. This precision is critical for early fault detection in rotating machinery.

Real-World Applications

The 9200-06-02-05-00 is suitable for a variety of vibration monitoring tasks. It is commonly used in:

• Pumps and compressors
• Electric motors and generators
• Fans and blowers
• Centrifuges and turbines

In these applications, the transducer provides continuous velocity data. This data helps you assess machine condition and plan maintenance proactively. By monitoring vibration trends, you can identify imbalance, misalignment, or bearing wear early. This approach reduces unplanned downtime and extends equipment life.

Installation and Setup Guidance

Proper installation is essential for accurate readings. The 9200-06-02-05-00 features a 1/2-20 UNF-3A stud mounting base. This allows for secure attachment to the machine surface. Ensure the mounting surface is clean and flat. This maximizes the transfer of vibration to the transducer.

The connector option 02 is a side mount with no cable. This allows you to choose the appropriate cable for your environment. When routing cables, avoid sharp bends and potential pinch points. This prevents damage and maintains signal integrity.

Calibration is performed at the factory. However, you should verify the output at installation using a known vibration source. This confirms that the transducer is functioning correctly in your setup.

Maintenance and Reliability

Routine maintenance of the 9200-06-02-05-00 is simple. The anodized aluminum case is dust and moisture resistant. This makes it suitable for harsh industrial settings. Periodically inspect the transducer for physical damage or loose mounting. Verify that the cable and connector are in good condition.

The transducer's temperature range of -29°C to +121°C covers most industrial environments. Its humidity tolerance up to 95% noncondensing adds to its reliability. By following a simple inspection schedule, you can ensure long-term performance.

Compatibility and Integration

The 9200-06-02-05-00 is a two-wire transducer. It is designed to work with Bently Nevada monitoring systems. It provides a standard velocity output signal. This signal can be integrated into your existing protection and condition monitoring architecture. The 10 kΩ load requirement ensures compatibility with most input modules.

For integration, you need to ensure the monitoring system accepts a velocity input. The transducer's output is a direct representation of casing velocity. This makes it straightforward to configure alarms and trip settings based on your machine's vibration limits.

Troubleshooting Common Issues

If you encounter issues with the 9200-06-02-05-00, consider these common points:

• No output signal: Check the wiring connections between the transducer and the monitor. Verify that the load is 10 kΩ.
• Erratic readings: Inspect the mounting stud for tightness. A loose mount can cause false readings.
• Signal drift: Ensure the transducer is within its temperature range. Extreme temperatures can affect sensitivity.

If problems persist, consult the official Bently Nevada documentation. You can also contact AutoDCSTech for technical support.

Support and Availability

The 9200-06-02-05-00 is available through AutoDCSTech. We stock new, original units in factory packing. Contact us for current pricing and lead times.
