Product Introduction

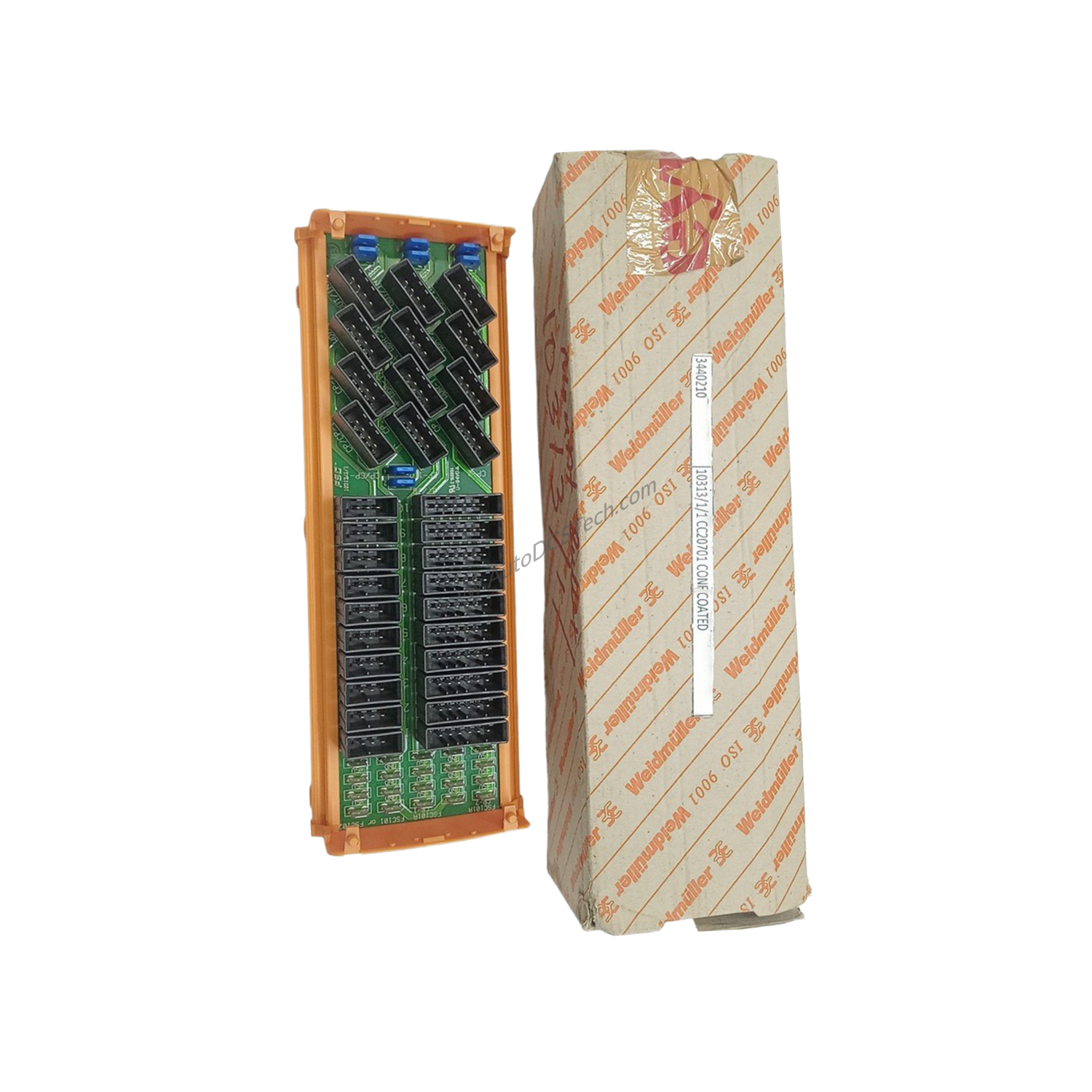

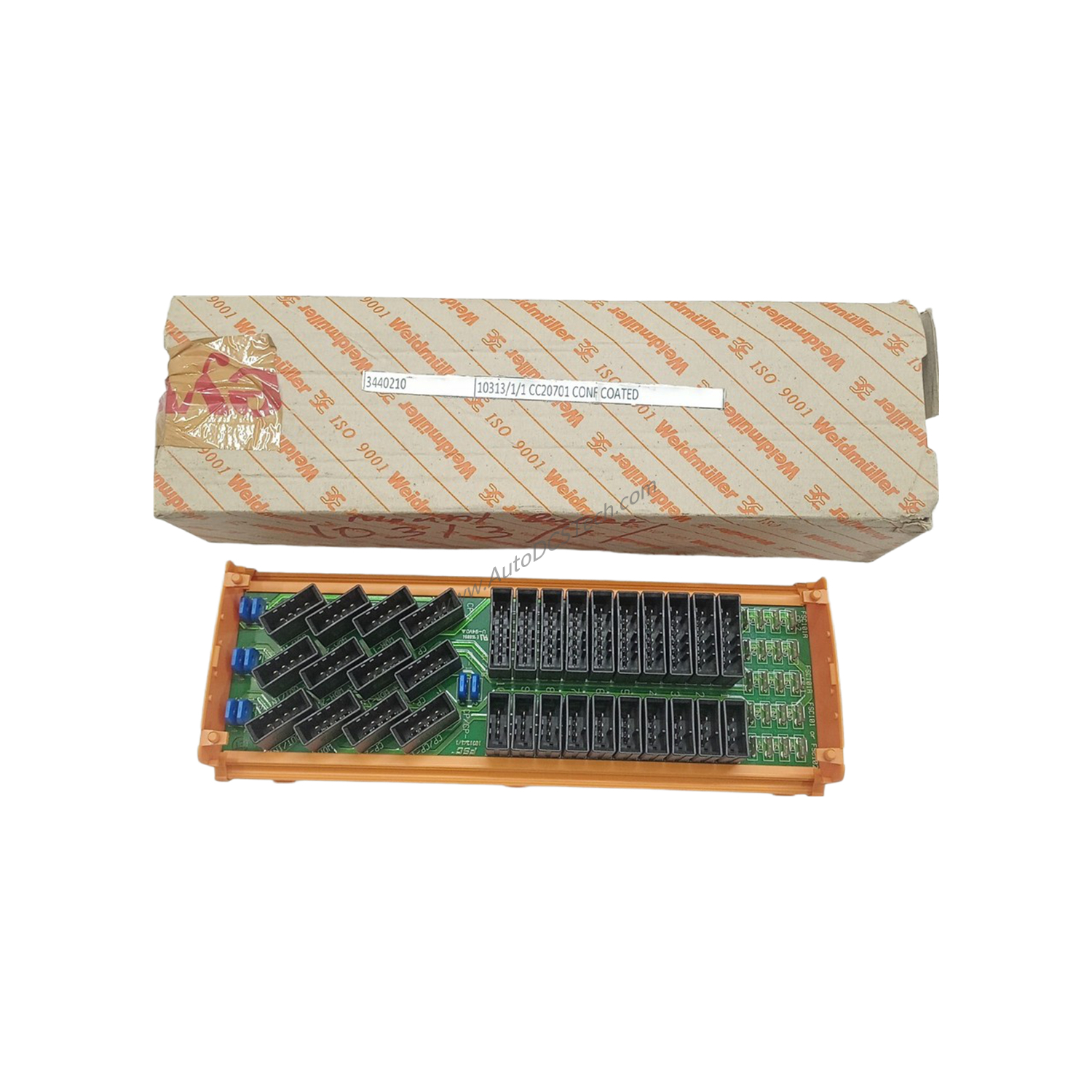

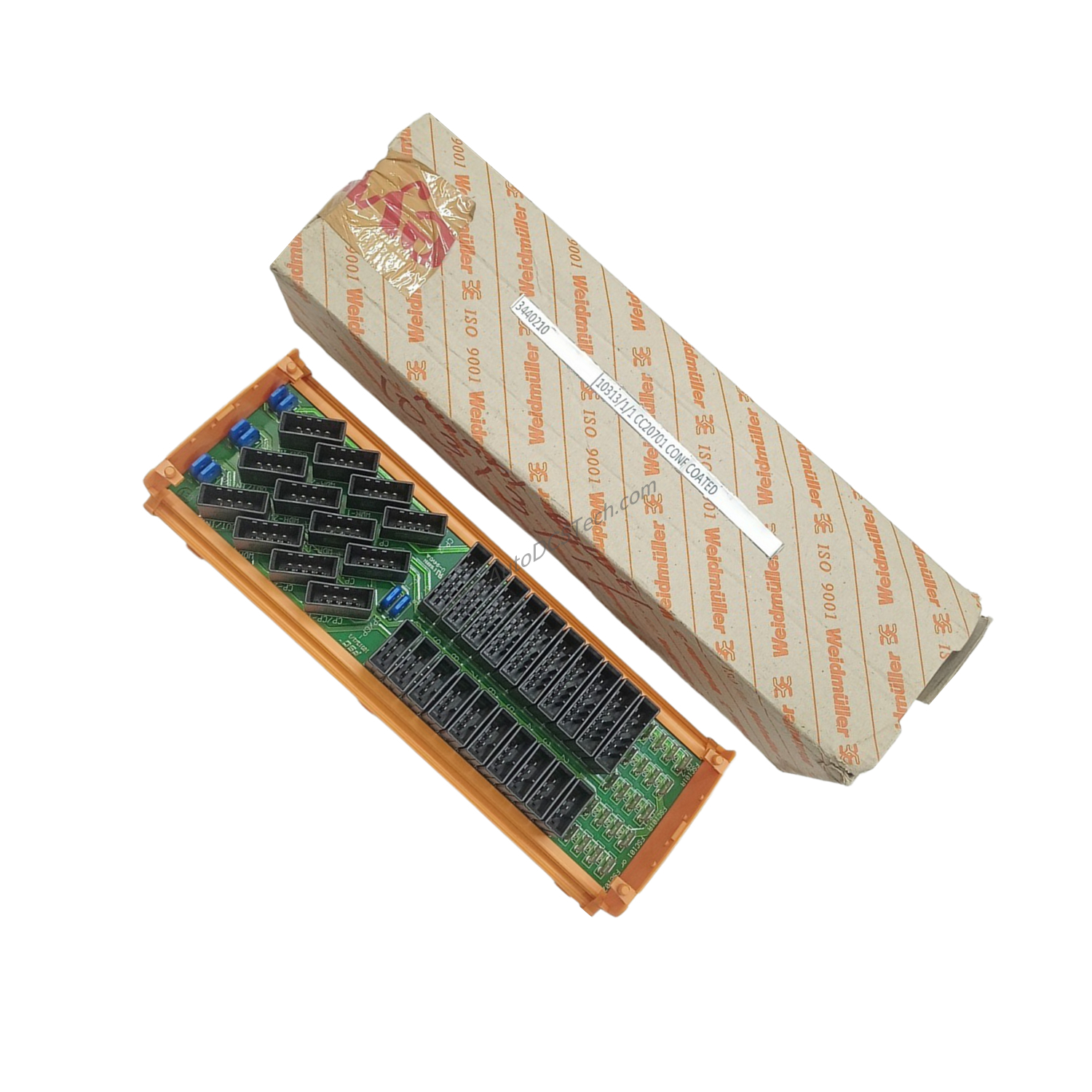

When your FSC (Fail Safe Control) system requires reliable distribution of 5 V DC power and watchdog (WD) signals, the Honeywell 10313/1/1 module delivers a robust solution. This distribution module is designed specifically for Honeywell's FSC safety system architecture, providing a centralized point for power and signal routing to both redundant and non-redundant I/O backplanes. The 10313/1/1 207011 ensures that critical safety loops maintain power integrity and watchdog supervision, reducing the risk of undetected failures.
Technical Specifications Breakdown
The 10313/1/1 module offers several key specifications that define its performance and integration capabilities:
- General Type Number: 10313/1/1 207011
- Approvals: CE, TÜV (UL approval pending)
- Power Current Consumption: None (included in I/O module data sheets)
- Max. Current on Faston Pin: 4 A
- Max. Current on I/O Connector Pin: 2 A
- Physical Dimensions: 240 x 87 x 60 mm (L x W x H) / 9.45 x 3.43 x 2.36 in
- DIN EN Rails: TS32 / TS35 x 7.5
- Used Rail Length: 241 mm (9.49 in)
These parameters allow the module to handle moderate current loads while maintaining a compact footprint suitable for standard DIN rail mounting. The separate current limits for faston pins and I/O connector pins ensure safe operation across different connection types.
Industry Applications
The 10313/1/1 module is primarily used in process safety applications such as:
- Oil and Gas Refineries: Distributing 5 V DC and watchdog signals to redundant I/O backplanes in emergency shutdown (ESD) systems.
- Chemical Plants: Providing reliable power distribution for non-redundant I/O backplanes in burner management systems.
- Power Generation: Supporting turbine control safety systems where watchdog signal integrity is critical.
Compared to generic power distribution modules, the Honeywell 10313/1/1 offers dedicated watchdog signal routing, which is essential for maintaining safety system diagnostics and fault detection.
Installation & Setup Guidance
Mount the 10313/1/1 module on a TS32 or TS35 x 7.5 DIN rail using the specified rail length of 241 mm (9.49 in). Connect the incoming 5 V DC power via the 'FSC101 or FSC102' fastons for non-redundant I/O backplanes, or via 'FSC101R CP-1' and 'FSC101R CP-2' fastons for redundant I/O backplanes. Use the ten RCN connectors for redundant I/O backplanes (10315/1/1) and ten SCN connectors for non-redundant I/O backplanes (10314/1/1). Ensure all connections are secure and observe the maximum current limits: 4 A per faston pin and 2 A per I/O connector pin.
Maintenance & Reliability
Regularly inspect the module for signs of overheating or loose connections, particularly on the faston and I/O connector pins. Verify that the watchdog signals are properly transmitted to connected backplanes. The module's passive design (no internal power consumption) contributes to long-term reliability. For optimal performance, keep the DIN rail area clean and free of debris.
Compatibility & Integration
The 10313/1/1 integrates seamlessly with Honeywell FSC system components:
- Redundant I/O backplanes: 10315/1/1
- Non-redundant I/O backplanes: 10314/1/1
- Watchdog repeaters (WDRs) via dedicated connectors
- 10005/O/2 WD horizontal buses
- Additional 10313/1/1 modules for cabinet expansion
Note: Modules with suffix code 20700 have a different connector layout, so verify compatibility before installation.
Selection Guide & Purchasing Advice
Before purchasing the Honeywell 10313/1/1 207011, confirm your system's configuration:
- Determine if you need redundant or non-redundant I/O backplane support.
- Verify the required number of connectors (RCN for redundant, SCN for non-redundant).
- Check the available DIN rail length (minimum 241 mm).
SpareTechPLC stocks the Honeywell 10313/1/1 207011 and can assist with compatibility questions. Contact our team to confirm lifecycle status and availability before ordering.
Frequently Asked Questions
Q1: Can the 10313/1/1 module be used with non-Honeywell safety systems?
A1: The module is designed specifically for Honeywell FSC systems. It may not be compatible with other brands without custom adaptation.
Q2: What is the maximum current per faston pin?
A2: The maximum current per faston pin is 4 A, as specified in the technical data.
Q3: Does the module require external power?
A3: No, the module's current consumption is none; power is drawn from the I/O module data sheets.
Q4: Are there any certifications for the 10313/1/1?
A4: Yes, it has CE and TÜV approvals, with UL approval pending.
Q5: Can I connect multiple 10313/1/1 modules together?
A5: Yes, the module includes connectors for linking an additional 10313/1/1 module in a separate cabinet.
