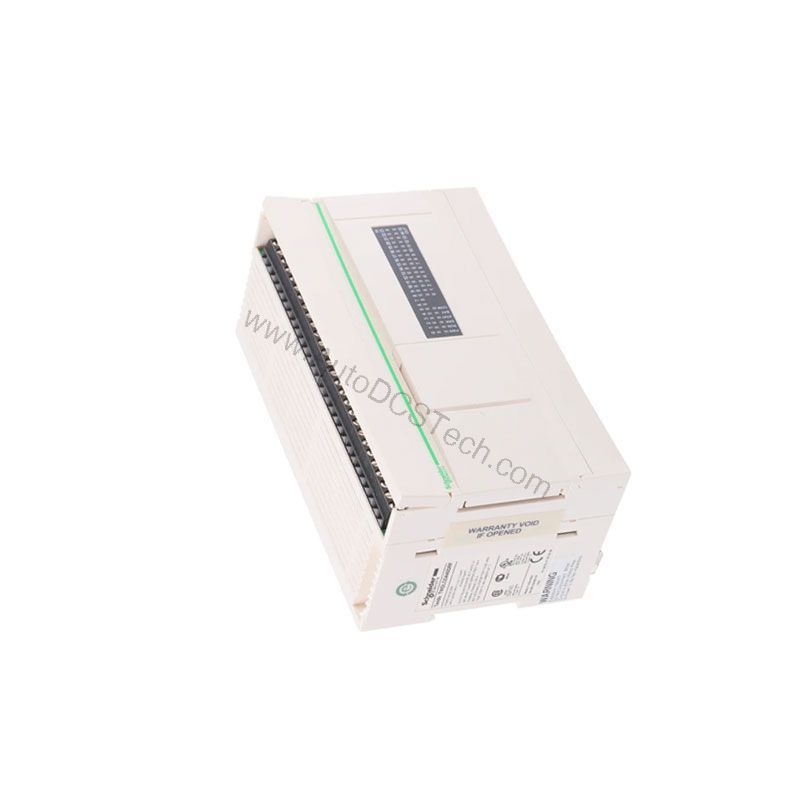

Schneider TWDLCDA40DRF Compact Base Controller for Cost-Effective Automation

Introduction: The TWDLCDA40DRF as a Cost-Effective Automation Solution

When budget constraints and reliability demands collide, the Schneider TWDLCDA40DRF Compact base controller delivers a balanced solution. This 24 V DC powered PLC from the Twido series integrates 24 discrete inputs and 16 outputs (2 transistor, 14 relay) in a single compact unit.

Technical Specifications Breakdown

The TWDLCDA40DRF offers several key specifications that directly impact cost and performance:

• Power Supply and Efficiency: With a rated supply voltage of 24 V DC and limits of 20.4...28.8 V, the controller operates on standard industrial power. Its power consumption is ≤ 17.2 W, keeping energy bills low. The inrush current is ≤ 35 A, which helps avoid oversized power supplies.
• Discrete I/O Configuration: The 24 inputs accept 24 V DC sink or source logic, with input voltage limits of 20.4...26.4 V. The 14 relay outputs handle 2 A at 30 V DC or 240 V AC (resistive or inductive loads), providing flexibility for driving various actuators. Using relays instead of all transistor outputs reduces component cost for high-current switching.
• Communication and Expansion: An integrated non-isolated serial link supports Modbus RTU/ASCII master/slave on RS485 at 38.4 kbit/s. This allows connection to HMIs, drives, or SCADA systems without extra modules. Up to 7 I/O expansion modules can be added, enabling system growth without replacing the controller.
• Memory and Processing: The program memory holds 3000 instructions, with an execution time of 1 ms per 1 K instruction. Internal RAM with lithium battery backup retains data for 30 days (battery life 10 years). This eliminates the need for costly external memory cards for typical applications.

Industry Applications

In packaging lines, the TWDLCDA40DRF controls conveyor sequences and product counting. Its 24 inputs handle sensors, while relay outputs drive solenoids and motors. The PID function enables simple temperature or pressure control, reducing the need for separate controllers.

For water treatment skids, the controller manages pump start/stop and level monitoring. The real-time clock (drift ≤ 30 s/month) schedules maintenance tasks, preventing unplanned downtime. The 4 counting inputs at 5000 Hz (16-bit) or 2 at 20000 Hz (32-bit) handle flow meter pulses accurately.

Installation and Setup Guidance

Mount the TWDLCDA40DRF on a 35 mm DIN rail or panel using the fixing kit. Ensure the ambient temperature stays between 0...55 °C and relative humidity 30...95% (non-condensing). The IP20 protection requires installation inside an enclosure.

Connect the 24 V DC supply to the power terminals, respecting polarity. Use the non-removable screw terminal block for I/O wiring. For Modbus communication, connect the RS485 mini DIN port to a serial link interface adaptor (RS232C/RS485). Configure the controller using TwidoSoft software, setting the filter times (40 µs + programmed filter) to match sensor response.

Maintenance and Reliability

Regular inspection of the relay outputs is recommended. The relay mechanical durability is ≥ 20,000,000 cycles, and electrical durability is ≥ 100,000 cycles at rated load. This long life reduces replacement frequency and associated labor costs.

The internal lithium battery should be replaced every 10 years to maintain data backup. The controller withstands vibration up to 4 gn (25...100 Hz on panel) and shock up to 15 gn for 11 ms, ensuring reliable operation in harsh environments.

Compatibility and Integration

It supports up to 264 I/O points with HE-10 connector expansion modules, 208 with spring terminals, or 152 with removable screw terminals. This scalability allows cost-effective system expansion.

Selection Guide and Purchasing Advice

Before ordering, verify that your application requires 24 V DC supply and 40 I/O. Confirm the relay output load current (2 A max) meets your actuator requirements. AutoDCSTech stocks the TWDLCDA40DRF and can advise on compatible expansion modules and accessories. Contact us to confirm current lifecycle status and availability.
