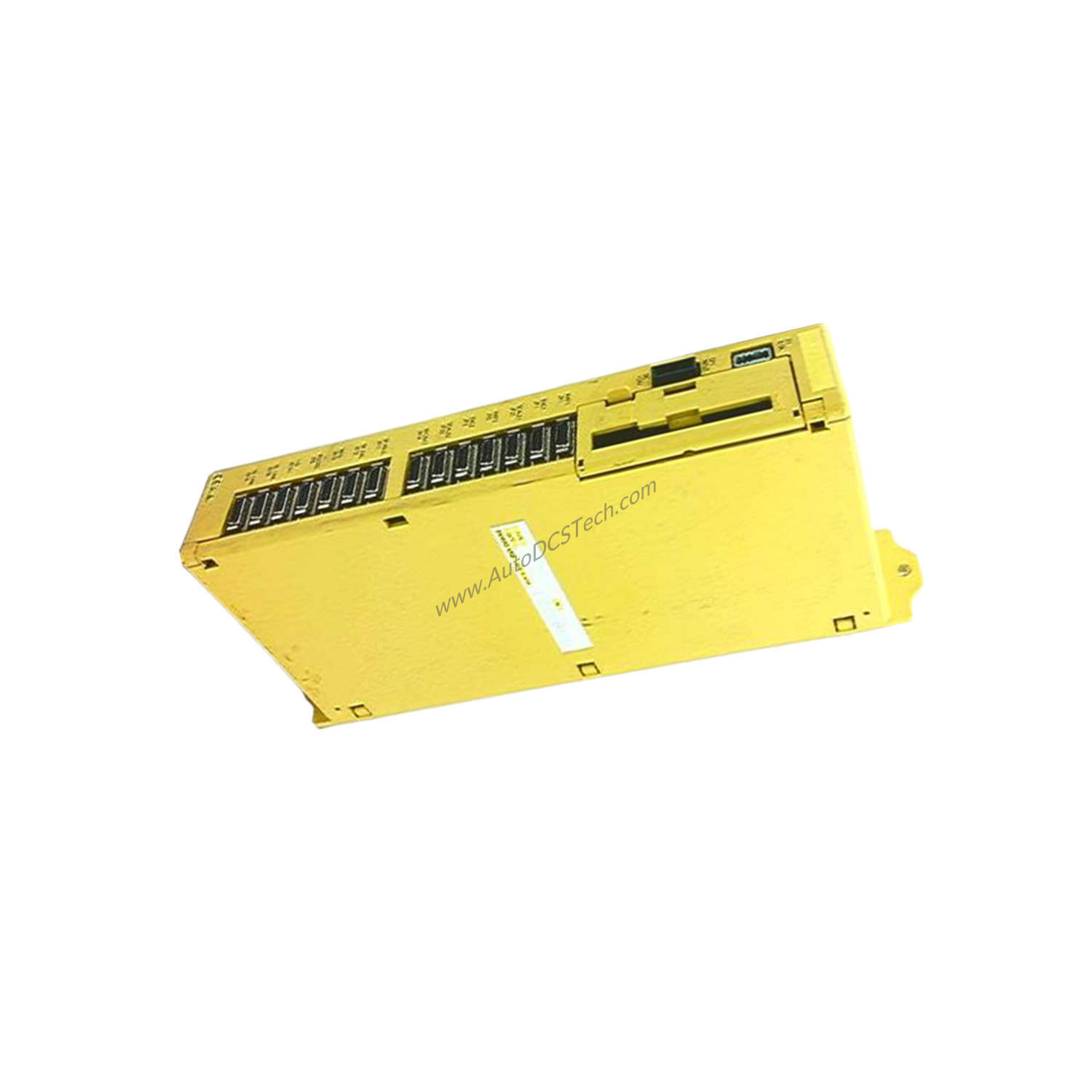

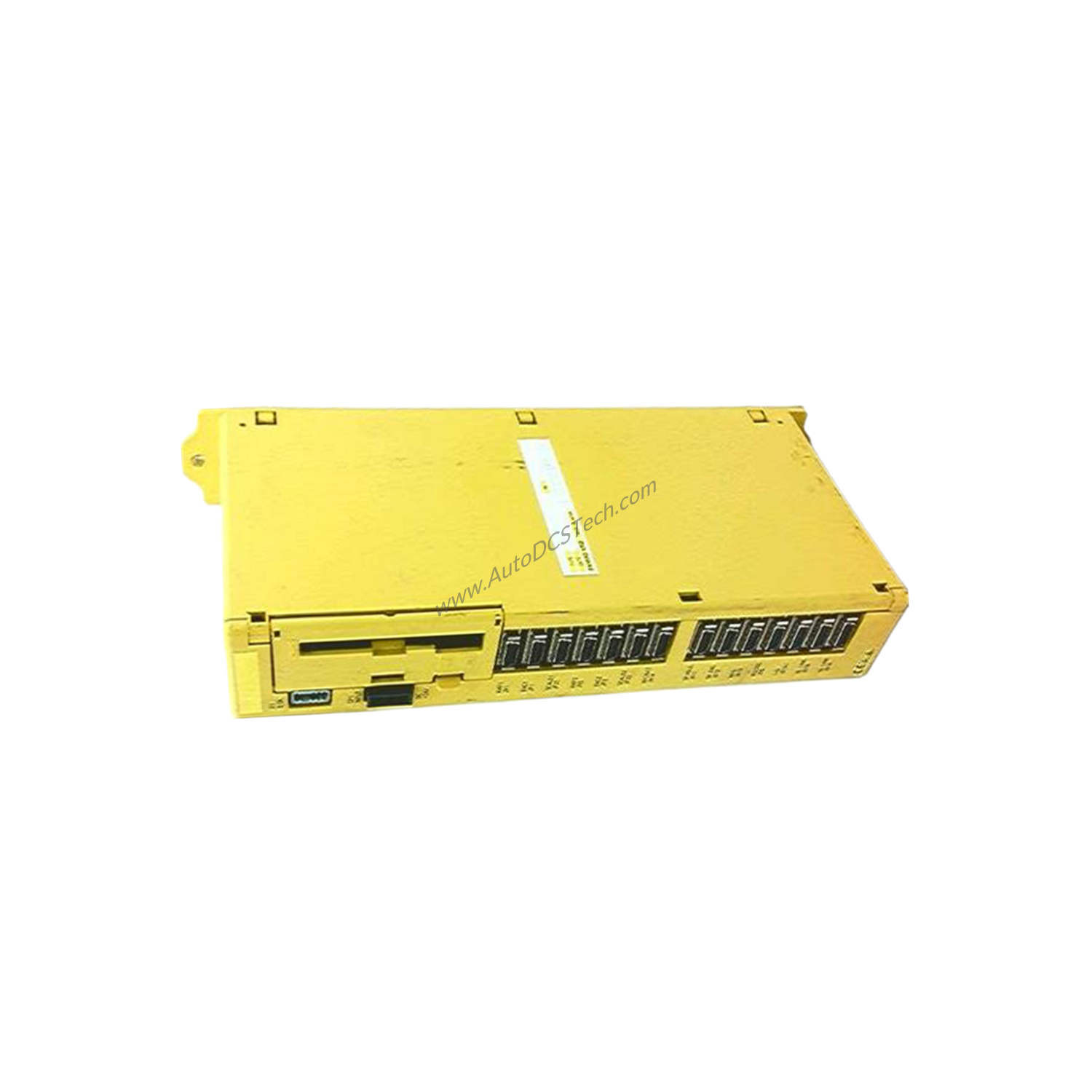

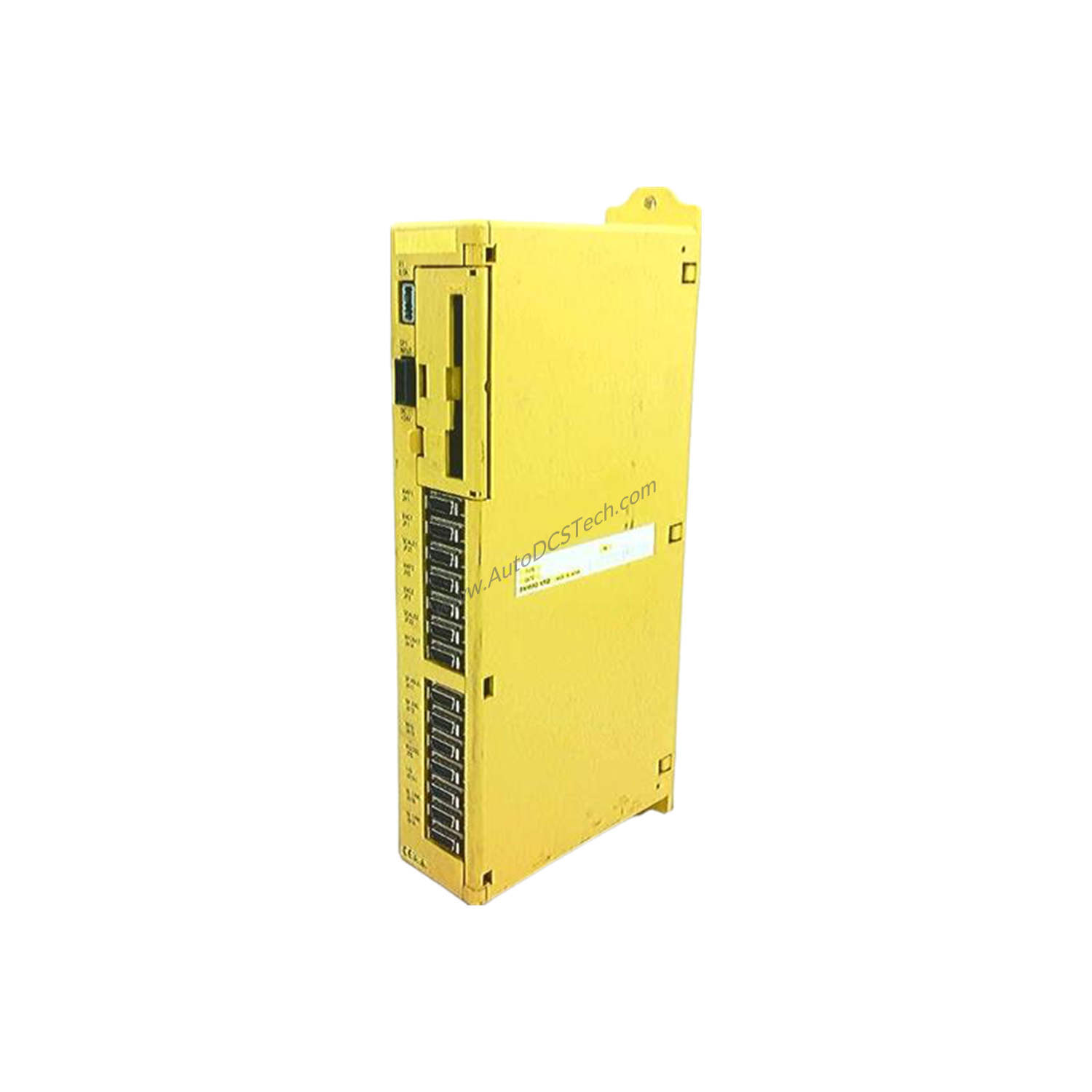

What Is the FANUC A02B-0166-B501?
When your CNC machinery demands precise motion control, the FANUC A02B-0166-B501 servo drive controller delivers reliable performance. This unit is designed specifically for CNC applications, offering high accuracy across two independent control channels. With a current rating of 5A, it handles demanding tasks while maintaining consistent operation. Weighing only 1.59 kg (3.5 lbs), it integrates easily into existing systems.
Key Technical Specifications
The A02B-0166-B501 operates reliably in environments free from corrosive gases. It supports a relative humidity of 95% or less (non-condensing). The ambient operating temperature range is 0°C to 55°C, while storage temperature extends from -20°C to 60°C. These parameters ensure versatility in various industrial settings.
Industry Applications
This servo drive controller excels in CNC milling, turning, and routing operations. Its two control channels enable simultaneous axis management, improving cycle times and surface finish. The high accuracy rating reduces positioning errors, critical for aerospace and automotive part manufacturing. For retrofitting older CNC machines, the A02B-0166-B501 provides a cost-effective upgrade path.
Installation and Setup Guidance
Mount the unit in a clean, dry cabinet away from corrosive gases. Ensure adequate airflow around the enclosure to maintain ambient temperatures within 0°C to 55°C. Connect the power supply and control signals according to the manufacturer's wiring diagram. Verify that the current rating does not exceed 5A per channel. After installation, perform a functional test to confirm proper communication with the CNC controller.
Maintenance and Reliability
Regularly inspect the A02B-0166-B501 for dust accumulation and verify that ambient conditions stay within specified limits. Check that relative humidity remains below 95% and no condensation forms. Periodically test the control channels for accurate response. Following these steps extends service life and minimizes unplanned downtime.
Compatibility and Integration
The A02B-0166-B501 is part of the FANUC A02B product line and is designed for integration with FANUC CNC systems. Its two control channels interface directly with servo motors and encoders. For replacement or upgrade projects, verify compatibility with your existing CNC controller and power supply.
Selection Guide and Purchasing Advice
Before ordering the A02B-0166-B501, confirm your CNC system's voltage and communication requirements. Ensure the environment meets the specified temperature and humidity ranges. Contact SpareTechPLC for current availability and lifecycle status. Our team can help you verify that this servo drive controller matches your application needs.
Frequently Asked Questions
Q: What is the current rating of the A02B-0166-B501?
A: The current rating is 5A.
Q: How many control channels does this servo drive controller have?
A: It has two control channels.
Q: What is the operating temperature range?
A: The ambient operating temperature range is 0°C to 55°C.
Q: Can this unit be used in humid environments?
A: Yes, it can operate in relative humidity of 95% or less, as long as no condensation occurs.
Q: Is the A02B-0166-B501 suitable for CNC applications?
A: Yes, it is designed specifically for CNC machinery.
